DIN48 X 24mm
2.
Internal battery life ≧ 5 years
3.
Error rate ≦ 0.02%
4.
LCD display with 6 digits (font size is 6.7mm height) or
8 digits (font size is 8.6mm height)
5.
No mechanical wear
6.
Max.resistance when terminals are close: ≦ 10km
Display mode
Reset mode
Display the number of digits
Counting input
Reset input
Counting speed
NOTE
1. UL 2464 24 AWG, shielded twisted pair cable is suggested to connect the Electronic Pulse Counter and Water
Meters.
2. Reset signal should not be connecting for long time in order to avoid wasting internal battery power.
WARNING: A lithium-ion battery inside. Do not make it stay in high pressure or overheat environment.

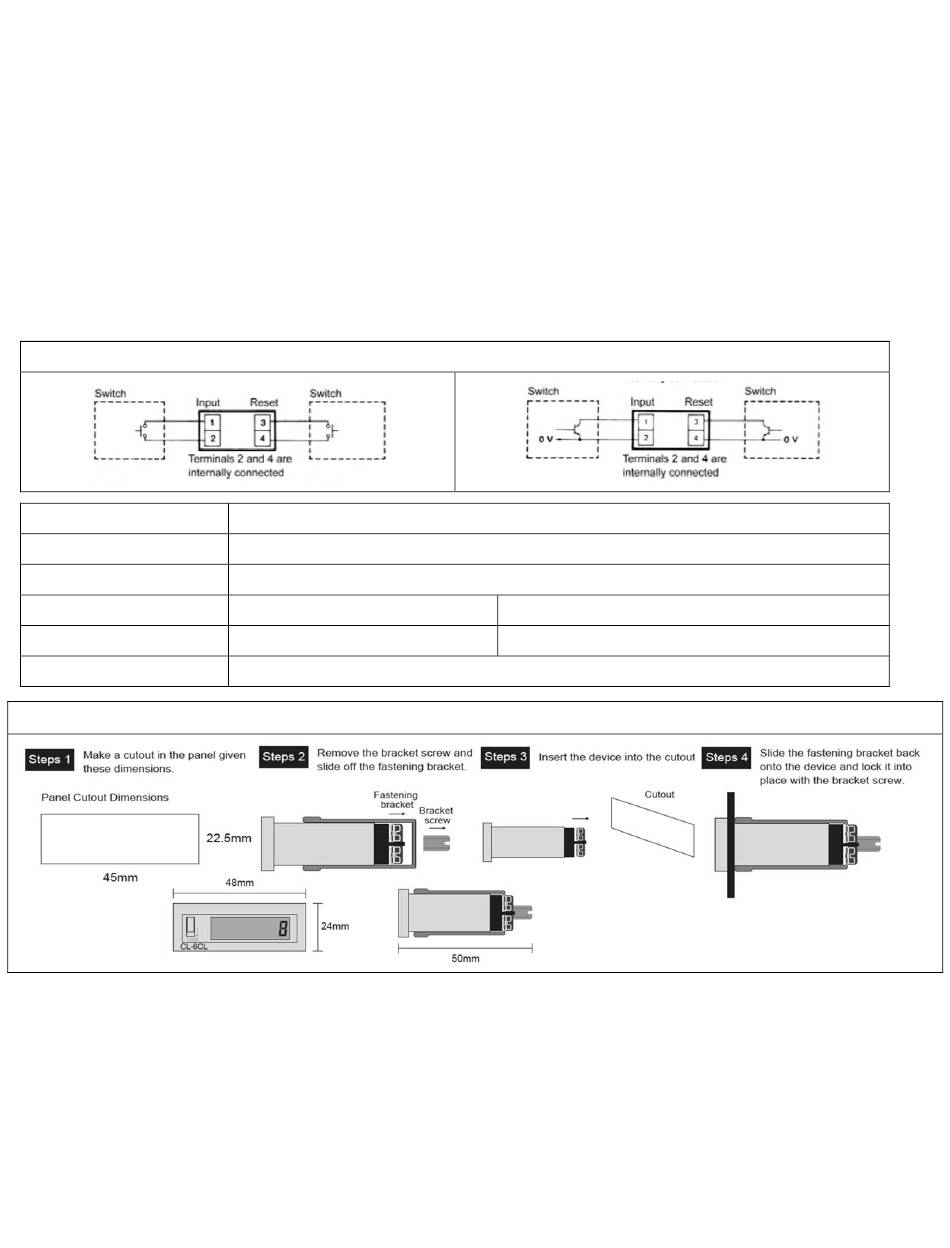

CO-10 Installation Guide

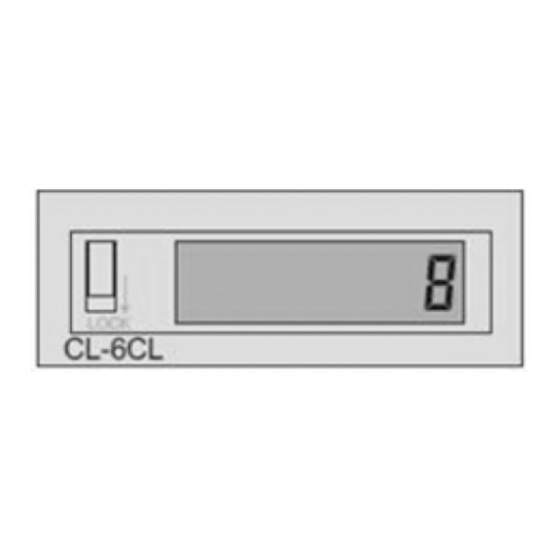

Electronic Pulse Counter
Dry Contact Input (zero voltage)
LCD
External / Panel
6 digits (font size is 6.7mm height)
No voltage input, contact input
No voltage input, contact input
20ms
7.
Min resistance when terminals are open: ≧ 500km
8.
Minimize signal pulse width ≧ 0.2s
9.
Weight: about 60g
10.
Hole size 22.2 X 45 mm
11.
Can reset on panel or by external terminal
12.
Use ambient temperature: -10 ~ 60℃
