Shelves

OVERVIEW

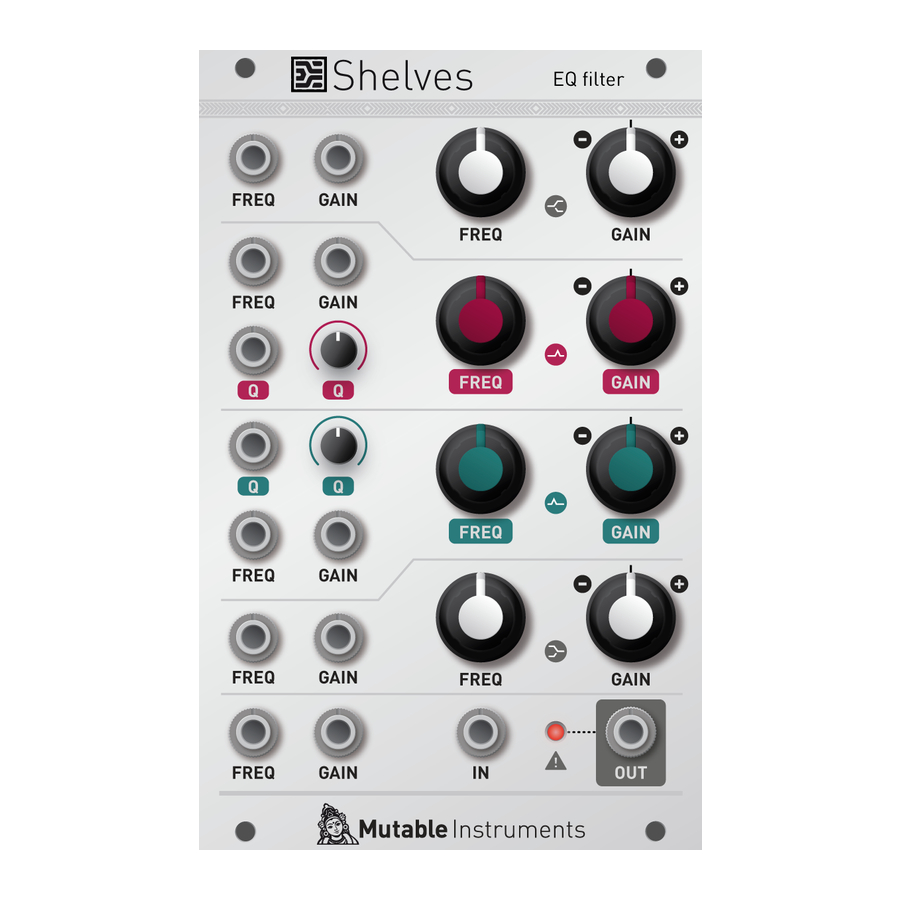

Shelves is a voltage-controlled signal processor inspired by the EQ section of console channel strips. Just
like many sought-after equalizers, it provides low-shelf, high-shelf, and two parametric tone controls.
Unlike an equalizer, each of these four tone controllers can be swept over the entire audio range; and their
parameters can be freely modulated with control voltages.
Shelves occupies a space between tone-controllers and filters, sometimes achieving sounds reminiscent
of a filter bank. It provides a subtler and less cliché'd way of spectrally altering complex drones or
feedback patches.

INSTALLATION

Shelves is designed for Eurorack synthesizer systems and occupies 16 HP of space. It requires a -12V /
+12V supply (2x5 connector), consuming 75mA from the -12V rail and 75mA from the +12V rail. The red
stripe of the ribbon cable must be oriented on the same side as the "Red stripe" marking on the printed
circuit board.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
This device meets the requirements of the following standards: EN55032, EN55103-2,
EN61000-3-2, EN61000-3-3, EN62311.

PARAMETER RANGES

On all channels, the
different from a classic EQ, in which each section operates in its narrow frequency range. Strange things
(positive/negative interferences or phase effects) can happen when two sections overlap.
All the FREQ CV inputs have a 1V/Oct scale and act as offsets to the value set by the
On all channels, the
has a 3dB/V scale and acts as an offset to the value set by the
reached, even by adding a positive CV offset to the
obtained by adding a negative CV offset to this CV input.
On parametric channels,
1000.0 through external CV modulation.

CONTROLS, INPUTS AND OUTPUTS

https://mutable-instruments.net/modules/shelves/manual/
User manual
FREQ knob covers the entire audio range, from 20 Hz to 20kHz. This is radically
GAIN knob covers an attenuation/boost range of -15dB to +15dB. The
Q goes from 0.5 to 20.0 from the panel knob, but can reach higher values, up to
Mutable Instruments | Shelves
GAIN knob. Gains above +15dB cannot be
GAIN CV input. However, gains below -15dB can be
FREQ knobs.
GAIN CV input
