Unitech Systems FPLC V2 Slim series Installation Manual

Installation Manual - FPLC V2 SLIM

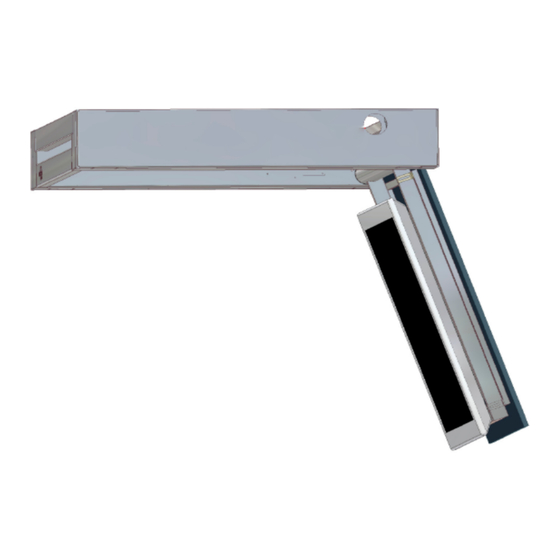

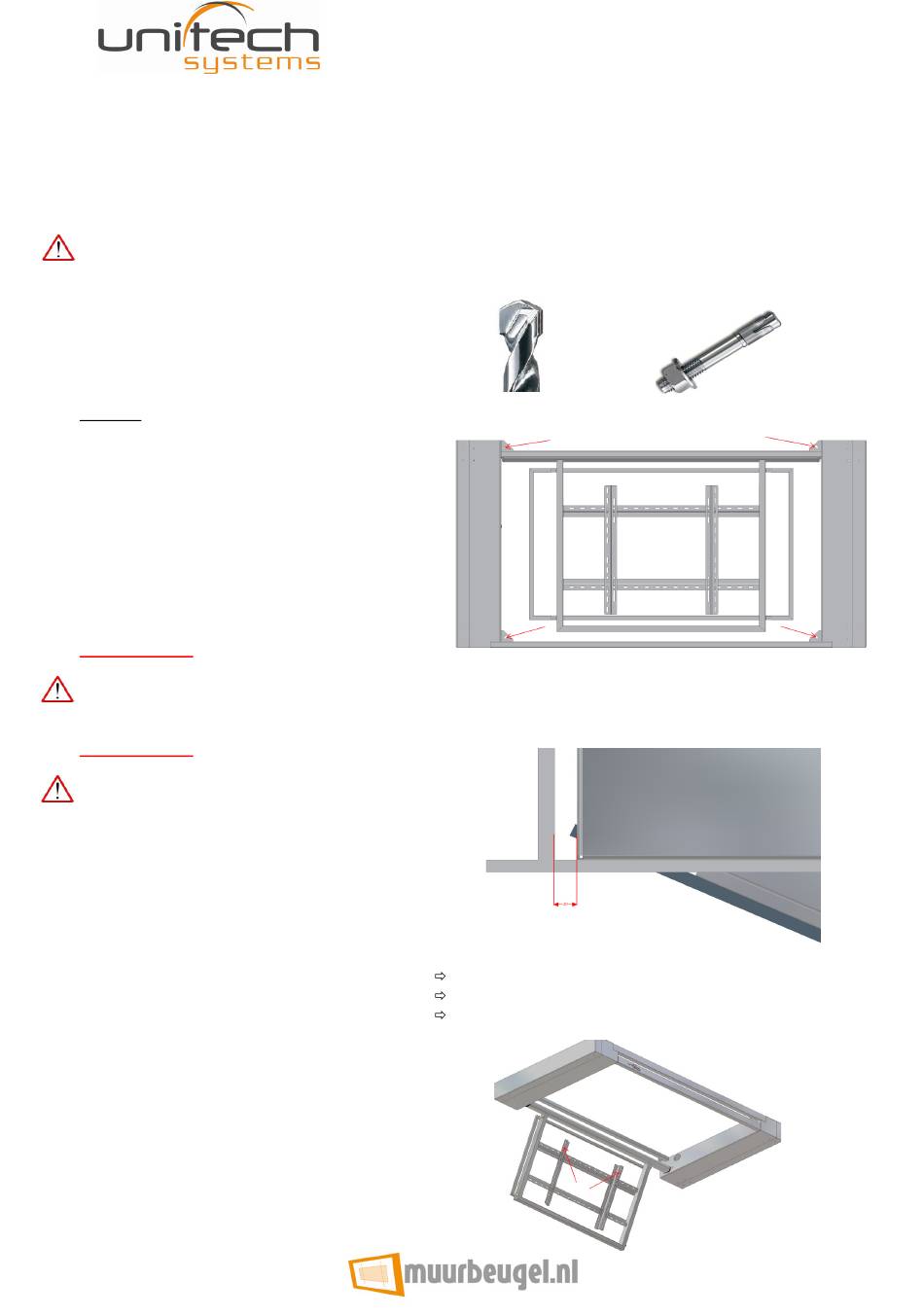

Thank you for purchasing a FPLC V2 SLIM lift!
Please make sure to read the instructions mentioned below before installing and using this lift!
FPLC V2 Slim mechanism is manufactured for flat panel installation on ceiling in horizontal position and should be installed by
specialized installers.
FPLC V2 Slim must be firmly installed on the ceiling with
the use of metal screws and the appropriate for the ceiling
anchors. The ceiling surface on which the FPLC V4 will be
installed, must be able to bare 3 times the total weight of
the application: lift weight + weight of the flat panel
+weight of the ceiling cover.
Lift weight:
FPLC V2 30-40 = 60kg
FPLC V2 42-50 = 72kg
FPLC V2 52-60 = 84kg
The FPLC V2 slim lift must be mounted through the 4 slat
holes shown in the drawing beside, with the use of (4) four
M10 screws with washer.
The hole pattern is:
FPLC V2 30-40 : 990x695mm
FPLC V2 42-50 : 1247x831mm
FPLC V2 52-60 : 1447x961mm
Important Note:
The lift must be firmly, well balanced and tightly mounted on the ceiling, so that there will be no oscillation during opening and closing
of the lift. In cases when the ceiling has big depth, then special over constructions of metal or other firm structure must be applied
before the lift is installed, in order to achieve lift's firm mounting.
Important Note:
The distance between the back side of the lift and the back
side of the false ceiling box (if applicable) must be at least
20mm in order to have enough room for the ceiling cover
to rotate inside the false ceiling (see drawing beside).
Ceiling hole recommended dimensions:
The flat panel must be mounted, aligned and centred, on
the two vertical bars shown in the drawing beside, after
they are adjusted in the appropriate distance, in order to
feet the vesa mounting of the screen.
FPLC V2 30-40 : 1495x820mm
FPLC V2 42-50 : 1752x956mm
FPLC V2 52-60 : 1952x1086mm
