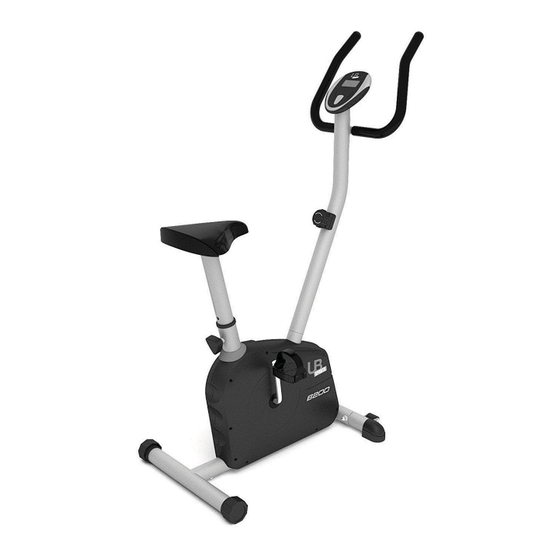

Summary of Contents for UB Sports B200
- Page 1 OWNER’S MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page Exploded View _____________________ Part List __________________________ Hardware Parking List _________________ Important Safety Information ____________ Assembly Instruction __________________ Console __________________________ Warranty / Service __________________... -
Page 3: Exploded View
EXPLODED DRAWING 22 23... -
Page 4: Part List
PART LIST Description Qty No. Description 002 Handlebar Ø25x1.5 1 031 Adjustable Bolt M6x36 Ø 004 Rear Stabilizer Ø50x1.5 1 033 Spring Washer Ø6 Ø z i l Ø 007 Tension Control Knob 1 036 Big Curve Washer Ø10 0325-BC66501-0101 008 Seat Post Knob M12 1 037 Curve Washer Ø8 Ø... -
Page 5: Hardware Parking List
HARDWARE PACKING LIST (34) Cap Nut M10 (35) Bolt M10x57 (36) Big Curve Washer Ø10 2 PCS 2 PCS 2 PCS Allen Wrench 6mm Wrench/Screwdriver 1 PC S13, S14, S15 1 PC Wrench 1 PC... -
Page 6: Important Safety Information
IMPORTANT SAFETY INFORMATION WARNING! Before using this unit or starting any exercise program, consult your physician. This is especially important for persons over the age of 35 and/or persons with pre-existing health problems. The manufacturer or distributor assumes no responsibility for personal injury or property damage sustained by or through the use of this product. -
Page 7: Assembly Instruction
ASSEMBLY INSTRUCTION (35) Bolt M10x57 2 PCS (36) Big Curve Washer Ø10 2 PCS (34) Cap Nut M10 2 PCS Remove four M8x15 Bolts (24), Ø8 Spring Washers (52), and Ø8 Curve Washers (37) from the Rear Stabilizer (4). - Page 8 ASSEMBLY INSTRUCTION Remove three M8 Locknuts (42) and Ø8 Washers (38) from underneath of the Seat Cushion (27)
- Page 9 ASSEMBLY INSTRUCTION First attached Seat Post Knob (8) onto main frame. Pull Seat Post Knob (8) as you insert Seat Post (25). Lock the Seat Post (25) in place by tightening the Seat Post Knob (8) in a clockwise direction. Remove four M8x15 Bolts (24) and Ø8 Curve Washers (37) from the tube of the Main Frame (1).
- Page 10 ASSEMBLY INSTRUCTION Remove the M5x25 Bolt (57) and Ø5 Big Curve Washer (51) from the Tension Control Knob (7). Put the cable end of resistance cable of Tension Control Knob (7) into the spring hook of Tension Cable (53) as shown in drawing A. Pull the resistance cable of Tension Control Knob (7) up and force it into the gap of metal bracket of Tension Cable (53) as shown in drawing B.
-
Page 11: Console
CONSOLE AUTO ON /OFF When you start pedaling or press the button on the computer, the computer will turn on. If you leave the equipment for 4 minutes, the power will turn off automatically. _______________ Display Modes Scan: The monitor will automatically scan each function of Speed - Distance -Time - Odometer - Calorie. -
Page 12: Warranty / Service
Please read and retain this manual as it will assist with identification for parts and service. LIMITED WARRANTY UB SPORTS warrants its B200 Exercise Bike to be free from defects in material and workmanship under normal use and service conditions for a period of 12 months from the date of purchase of this article.
