WP-EXTHDBTX1 - Single Gang HDMI® Wall plate over HDBaseT™ Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shook, lighting strikes, etc. -
Page 3: Introduction

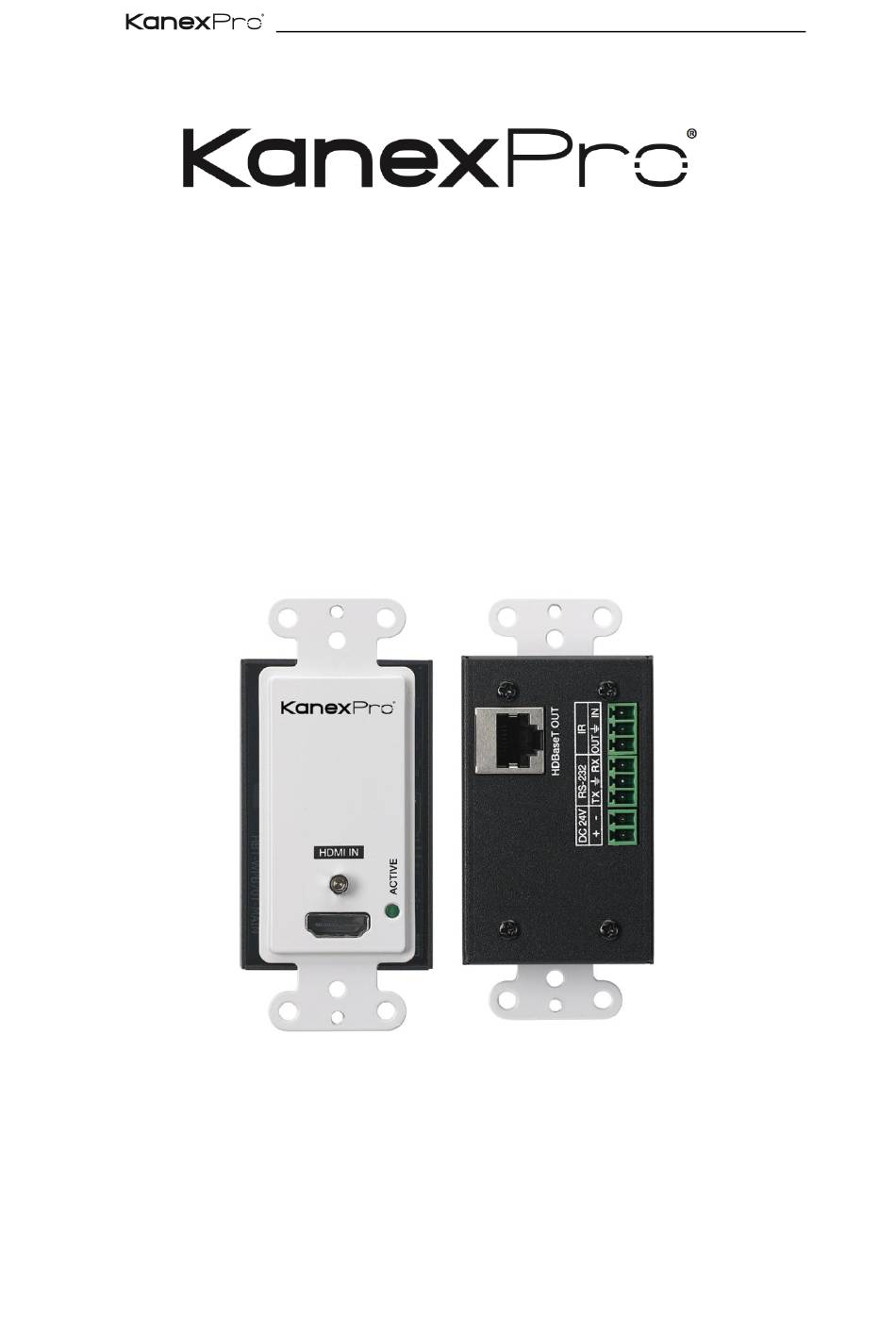

1. Introduction The KanexPro WP-EXTHDBTX1 is a US Decora style single gang HDMI 2.0® wall plate transmitter designed for connecting one HDMI device such as a laptop, Blu-ray, or a 4K media player remotely over CAT5/6 up to 230 ft. (70 meters). The outputs is via HDBaseT port. -
Page 4: Features
WP-EXTHDBTX1 - Single Gang HDMI® Wall plate over HDBaseT™ 2. Features • Single Gang, One HDMI Input wall plate over HDBaseT • Extend 4K/60 w/ 4:4:4 up to 40 meters (130ft.) • Extend 1080p/60 w/ 4:4:4 up to 70 meters (230 ft.) •... -
Page 5: Specifications
WP-EXTHDBTX1 - Single Gang HDMI® Wall plate over HDBaseT™ 4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 1.4 and HDCP 2.2 Video Bandwidth 18 Gbps Video Resolution up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@ 120Hz, and 1080P 3D@60Hz Color Space RGB/YCbCr 4:4:4, YCbCr 4:2:2... -
Page 6: Operation Controls And Functions
WP-EXTHDBTX1 - Single Gang HDMI® Wall plate over HDBaseT™ 5. Operation Controls and Functions 5.1 Front panel Number Name Function description HDMI IN Connect to HDMI source devices such as Blu-ray or PS4 player. ACTIVE Green LED input signal indicator. -
Page 7: Rear Panel
WP-EXTHDBTX1 - Single Gang HDMI® Wall plate over HDBaseT™ 5.2 Rear panel Number Name Function description HDBaseT OUT HDBaseT output port. Connect HDBaseT receiver with a UTP cable. 5V OUT Supply 5V power for external IR emitter. IR IN/OUT Use the phoenix jack for connect IR input or output. - Page 8 WP-EXTHDBTX1 - Single Gang HDMI® Wall plate over HDBaseT™ POC (Power over Cable) Application Bi- directional (Two-way) Infrared control Application...
-
Page 9: Application Example
WP-EXTHDBTX1 - Single Gang HDMI® Wall plate over HDBaseT™ Bi-directional (Two-Way) RS-232 Control Application 6. Typical connection diagram... -
