Summary of Contents for Innovative Technology DA3

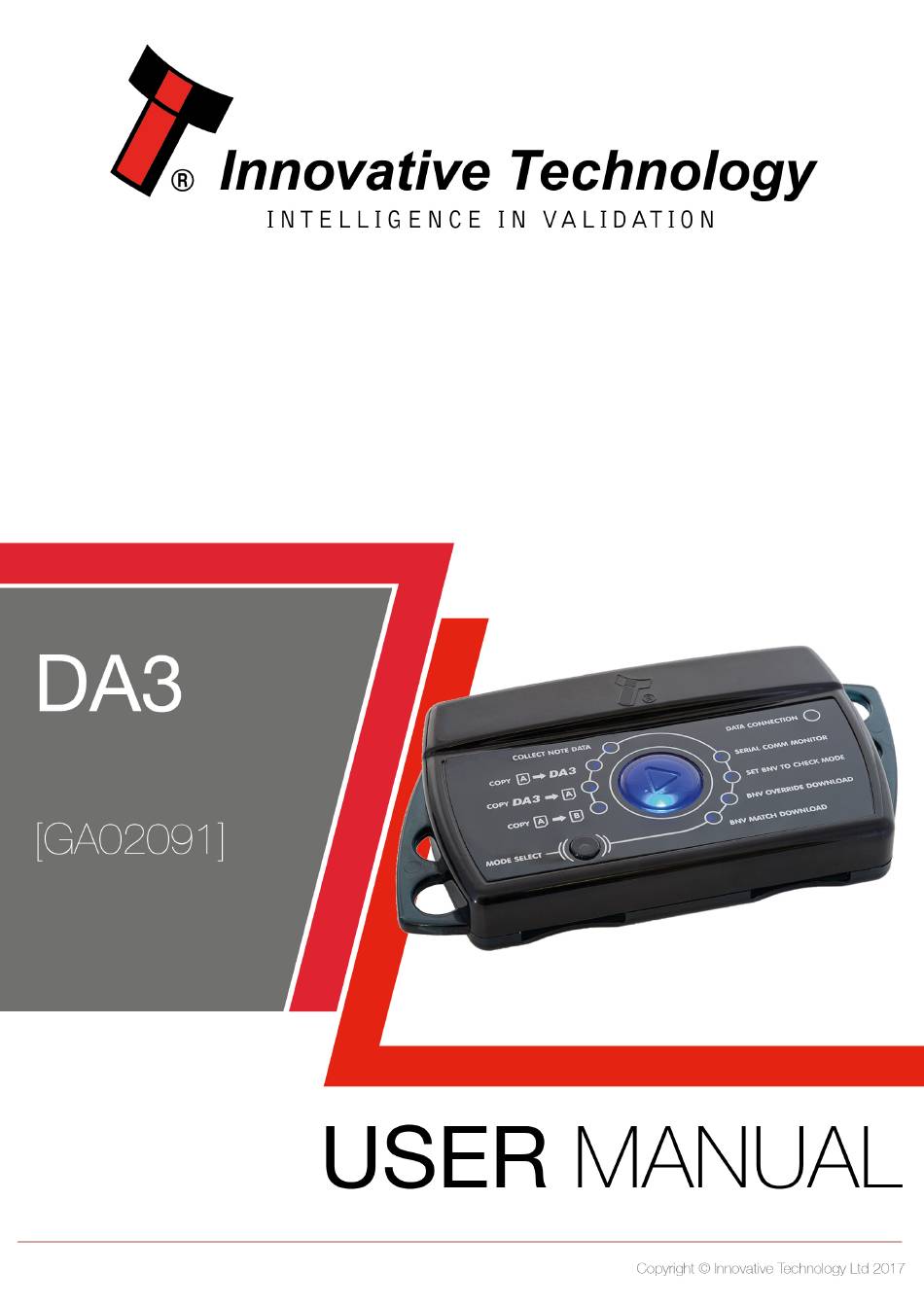

- Page 1 Doc: User Manual DA3 GA02091 Version: 1.1...
-
Page 2: Table Of Contents
Windows 8/10 Driver Install ....................... 11 3.1.2 Connecting the DA3 to a Computer ....................12 3.1.3 Connecting the DA3 in the Field for Update ................. 13 3.1.3.1 Option 1 – Power Supply via Host Machine ..................13 3.1.3.2 Option 2 – Power Supply via external Power Supply ................14 SOFTWARE INSTALLATION AND CONFIGURATION ................ - Page 3 ............................39 ABLE RAWINGS 9.1.1 CN00214 – USB A to B cable assembly ..................39 9.1.2 CN174 – Ribbon Cable ........................40 9.1.3 CN00345 - DA3 Power Cable ......................41 (SSP) .................. 42 WITCHING DEVICES TO ROGRAMMING ..........................42 IRMWARE DENTIFIER Copyright ©...
-
Page 4: Document Introduction
Authorized Reseller, and extending for the length of time stipulated by Innovative Technology Ltd. A list of Innovative Technology Ltd offices can be found on the ITL website. If the product proves defective within the applicable warranty period, Innovative Technology Ltd will repair or replace the product. Innovative Technology Ltd shall have the sole discretion whether to repair or replace, and any replacement product supplied may be new or reconditioned. -
Page 5: Product Safety Information
1.5 Disclaimer Innovative Technology Ltd is not responsible for any loss, harm, or damage caused by the installation and use of this product. This does not affect your local statutory rights. - Page 6 Napájecí svorky a/nebo konektory: Nejsou sledované pro externí kabeláž • Sledovaný stupeň znečištění je: 2 • Následující krytí konečného produktu jsou požadované: Mechanické, Protipožární Copyright © Innovative Technology Ltd 2017 Doc: User Manual DA3 GA02091 Version: 1.1 Page 5 of 42...
-
Page 7: Product Introduction

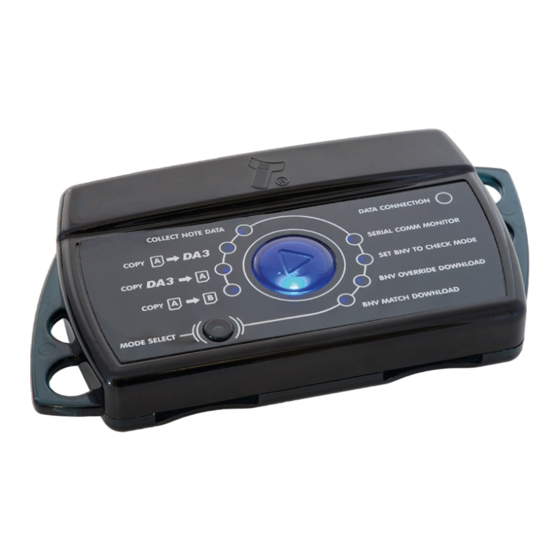

2 PRODUCT INTRODUCTION 2.1 General Description The DA3 is a hand-held validator programming system that enables the user to re-program ITL banknote validators in the field, without the use of a PC. Dataset and firmware files for different validator models can be stored on the DA3. -
Page 8: Da3 Kit Variants
<< Back to Contents 2.3.1 DA3 Kit Variants 2.3.1.1 DA3 SMART Update Tool components A DA3 and a pre-programmed SD card including all dataset files for current ITL validators. The Kit consist of the following cables and Accessories: ITL Part... -
Page 9: Mechanical Installation
Once downloaded you will need to extract the drivers from the zip file, this can be done by right clicking and selecting extract all. This will create a new folder with the extracted files. Copyright © Innovative Technology Ltd 2017 Doc: User Manual DA3 GA02091 Version: 1.1... -
Page 10: Windows 7 Driver Install
Right click and select ‘Update Driver Software’, a screen will appear asking you to either search Windows update for the correct driver or to ‘Browse your computer’, you will need to click browse my computer. Copyright © Innovative Technology Ltd 2017 Doc: User Manual DA3 GA02091 Version: 1.1... - Page 11 << Back to Contents Now navigate to the folder where the drivers were extracted, as shown below and choose the required DA3 driver pending on your system (“NVxx, BVxx, DA3 - 32 bit” or “NVxx, BVxx, DA3 - 64 bit”): Click next then the driver will install, once the process has completed the interface device will be visible under ports.
-
Page 12: Windows 8/10 Driver Install
(3.1.2.1 Windows 7 Driver Install). Once the drivers have installed you can reboot your system to Enable Driver Signature Enforcement. Copyright © Innovative Technology Ltd 2017 Doc: User Manual DA3 GA02091 Version: 1.1 Page 11 of 42... -
Page 13: Connecting The Da3 To A Computer
Cable CN214 USB A to B Cable Assembly technology.com/shop/cables/usb-a-to- b-cable-assembly-detail This Cable is part of the DA3 Kit (Please refer to chapter 2.3.1 DA3 Kit Variants further information). Copyright © Innovative Technology Ltd 2017 Doc: User Manual DA3 GA02091 Version: 1.1... -
Page 14: Connecting The Da3 In The Field For Update
Cable CN174 NV9 / NV10 Ribbon Cable nv10-ribbon-cable-detail This Cable is part of the DA3 Kit (Please refer to chapter 2.3.1 DA3 Kit Variants further information). Copyright © Innovative Technology Ltd 2017 Doc: User Manual DA3 GA02091 Version: 1.1... -
Page 15: Option 2 - Power Supply Via External Power Supply
DA3 / IF17 / IF18 Power Cable technology.com/shop/cables/da3-if17- if18-power-cable-detail The CN174 is part of the DA3 Kit (Please refer to chapter 2.3.1 DA3 Kit Variants further information) and the Cable CN00345 needs to be ordered separately. Copyright © Innovative Technology Ltd 2017 Doc: User Manual DA3 GA02091 Version: 1.1... -
Page 16: Software Installation And Configuration
ITL products in the field without the need of a laptop or computer. 4.1.1.2 Firmware Update/Change on the DA3 Connect the DA3 to your PC using a USB cable, and open DPS software. You • may need to install the DA3 driver. Please refer to chapter 3.1.1 Driver... -
Page 17: Adding Datasets To The Dataset Library
Once a dataset has been loaded into the program it is loaded as a ‘match’ download, if you wish to modify any of the settings you must switch it to an override download (4.1.1.5 Tagging files for override). Copyright © Innovative Technology Ltd 2017 Doc: User Manual DA3 GA02091 Version: 1.1 Page 16 of 42... -
Page 18: Storing Files On The Da3
Once the files are ready to be copied onto the DA3 simply drag the file from the right and drop on the left. This will prepare the file to be loaded onto the DA3. The DA3 has 8mb of flash storage and can hold up to 20 datasets simultaneously depending on files sizes. -
Page 19: Tagging Files For Override
DES, setting the ccTalk® address. Once all the changes to the firmware are made, click ‘Save’ this will take you back to the landing page. Copyright © Innovative Technology Ltd 2017 Doc: User Manual DA3 GA02091 Version: 1.1... -
Page 20: Nv Memory Card Utilities
4.1.2 NV Memory Card Utilities 4.1.2.1 General Description NV Card Utilities is designed to work with the DA3 handheld programmer and Data Flash Cards; it allows the user to create update cards for the NV200 family of products as well as log card functions for all units (excluding BV-series). -
Page 21: Format For Log Data
NV200 to begin logging, if you are using a different validator you will also have to create a SSP packet logger please see section 4.1.2.5 Format for SSP packet log. Copyright © Innovative Technology Ltd 2017 Doc: User Manual DA3 GA02091 Version: 1.1 Page 20 of 42... -
Page 22: Format For Dataset Update Card (Nv200 Range Only)
This can be changed should the host machine be expecting specific values. Copyright © Innovative Technology Ltd 2017 Doc: User Manual DA3 GA02091 Version: 1.1... - Page 23 On the left is the options available with SSP selected, and on the right, are the options available through selecting the ccTalk® interface. Information If you want to keep the current settings on the unit, select no change. Copyright © Innovative Technology Ltd 2017 Doc: User Manual DA3 GA02091 Version: 1.1 Page 22 of 42...
- Page 24 Data Flash card. Click on ‘Update card’ and the file will be loaded onto the Data Flash card. Copyright © Innovative Technology Ltd 2017 Doc: User Manual DA3 GA02091 Version: 1.1...
-
Page 25: Format For Option Update Card (Nv200 Range Only)
Formatting for SSP packet logging is to be used in conjunction with a standard log card in a DA3 to capture all the transmitted and received packets between any of ITL’s validators (excluding BV-series).and the host machine. A more detailed instruction on how to do this can be obtained from chapter 5.1.10 Data... -
Page 26: Upload Log Data
<< Back to Contents 4.1.2.8 Upload Log Data Open NV card utilities, connect a DA3 via a USB cable and put the Log data • card in Slot A. Select ‘Next’. Select Upload Log data and hit ‘Next’. • Select Upload Records. NV Utilities extracts the data and displays a list of •... -
Page 27: Operation And Setup
6.1 LED Error Flash Codes. • If all the files are available on the DA3, the Mode Indicator LED’s will rotate in an anti-clockwise direction while the firmware is updated. • Once the firmware update is complete (a quick Reset will be performed) and the Mode Indicator LED’s will rotate in a clockwise direction as the dataset is... - Page 28 6.1 LED Error Flash Codes. • If all the files are available on the DA3, the Mode Indicator LED’s will rotate in an anti-clockwise direction while the firmware is updated. • Once the firmware update is complete, the Mode Indicator LED’s will rotate in a clockwise direction as the dataset is updated.
-
Page 29: Set Bnv To Check Mode
• Press the Centre RUN button. • The Centre RUN button will change colour to pulsing blue, and the DATA CONNECTION LED with flash as data is transferred to and from the DA3. If communications cannot be established the Centre RUN button will change... -
Page 30: Copy A To Da3
• When the copy procedure is completed, the Centre RUN button will pulse green. 5.1.7 Copy DA3 to A This function copies the contents of the internal memory on the DA3 to the Data Flash card. Caution! All files stored on the Data Flash will be overwritten. -
Page 31: Copy A To B
MODE SELECT button will re-light blue. o If the DA3 is blank or if there is no Data Flash card in slot A, the Centre RUN button will pulse red, and the blue Copy DA3 A LED will flash a code as described in chapter 6.1 LED Error Flash... -
Page 32: Data Logging
5.1.9 Data Logging 5.1.9.1 General Description The DA3 can also be used as a data logging device, utilising the two card slots on the unit. This allows the capturing of performance data and also helps with diagnosing any issues seen in the field. -
Page 33: Collecting Data
• Remove the Log Data Card from slot B. This contains all the required events and data. • The DA3 can be left connected in series in this mode and will gather data continuously. When the card’s memory is full it will overwrite the earliest records and keep recording. -
Page 34: Smart Update Firmware
5.2.2 Requirements 1 x DA3 handheld programmer • Latest Custom DA3 SMART Update firmware • UpdateV2.bin file - download it from the ITL Website • Min 2Gb SD Card, Class 4. Sandisk, Kingston Technology, Transcend have all •... -
Page 35: Setup
Place SD card in PC card slot and copy UpdateV2.bin file to the card. The file • is big (200Mb approx), so this takes a few minutes. Connect the DA3 to your PC using a USB cable, and open DPS software. You • may need to install the DA3 driver. Please refer to chapter 3.1.2 Driver... -
Page 36: Update Procedure
<< Back to Contents 5.2.4 Update Procedure Insert SD card with the UpdateV2.bin file loaded into Slot A on the DA3. • Connect the DA3 to the validator using the ribbon cable and 16-way • connector and power it from the host ribbon cable. -
Page 37: First Level Support
Number of Indicated Status / Action of LONG SHORT flashes Error flashes Incompatible Dataset Check if the dataset on the DA3 match the connected Validator type. No validator connection Check if the wiring is correct. Please refer found to chapter 3.1.3... -
Page 38: Technical Data
7.2 Power Requirements 7.2.1 Supply Voltages When programming the DA3 using the DPS software, power is taken from the USB bus; no external power supply is required. When programming validators, or using the DA3 card copy functions, power must be applied via the host machine or from a separate 12V DC, 1500mA power supply. -
Page 39: Compliances And Approvals
• RoHS • EN Directives • UL • REACH • WEEE Please contact support@innovative-technology.com for further information. Detailed information is available on request. Copyright © Innovative Technology Ltd 2017 Doc: User Manual DA3 GA02091 Version: 1.1 Page 38 of 42... -
Page 40: Appendix
<< Back to Contents 9 APPENDIX 9.1 Cable Drawings 9.1.1 CN00214 – USB A to B cable assembly Copyright © Innovative Technology Ltd 2017 Doc: User Manual DA3 GA02091 Version: 1.1 Page 39 of 42... -
Page 41: Cn174 - Ribbon Cable
<< Back to Contents 9.1.2 CN174 – Ribbon Cable Copyright © Innovative Technology Ltd 2017 Doc: User Manual DA3 GA02091 Version: 1.1 Page 40 of 42... -
Page 42: Cn00345 - Da3 Power Cable
<< Back to Contents 9.1.3 CN00345 - DA3 Power Cable Copyright © Innovative Technology Ltd 2017 Doc: User Manual DA3 GA02091 Version: 1.1 Page 41 of 42... -
Page 43: Switching Itl Devices To Programming Mode (Ssp)
IF30 IF31 ccTalk® Parallel ms/10 ms/10 value IF32 9.3 Firmware Identifier DA31001210000SMT.vps – SMART Update Firmware DA31001210000003.vps – Standard Firmware Copyright © Innovative Technology Ltd 2017 Doc: User Manual DA3 GA02091 Version: 1.1 Page 42 of 42...
