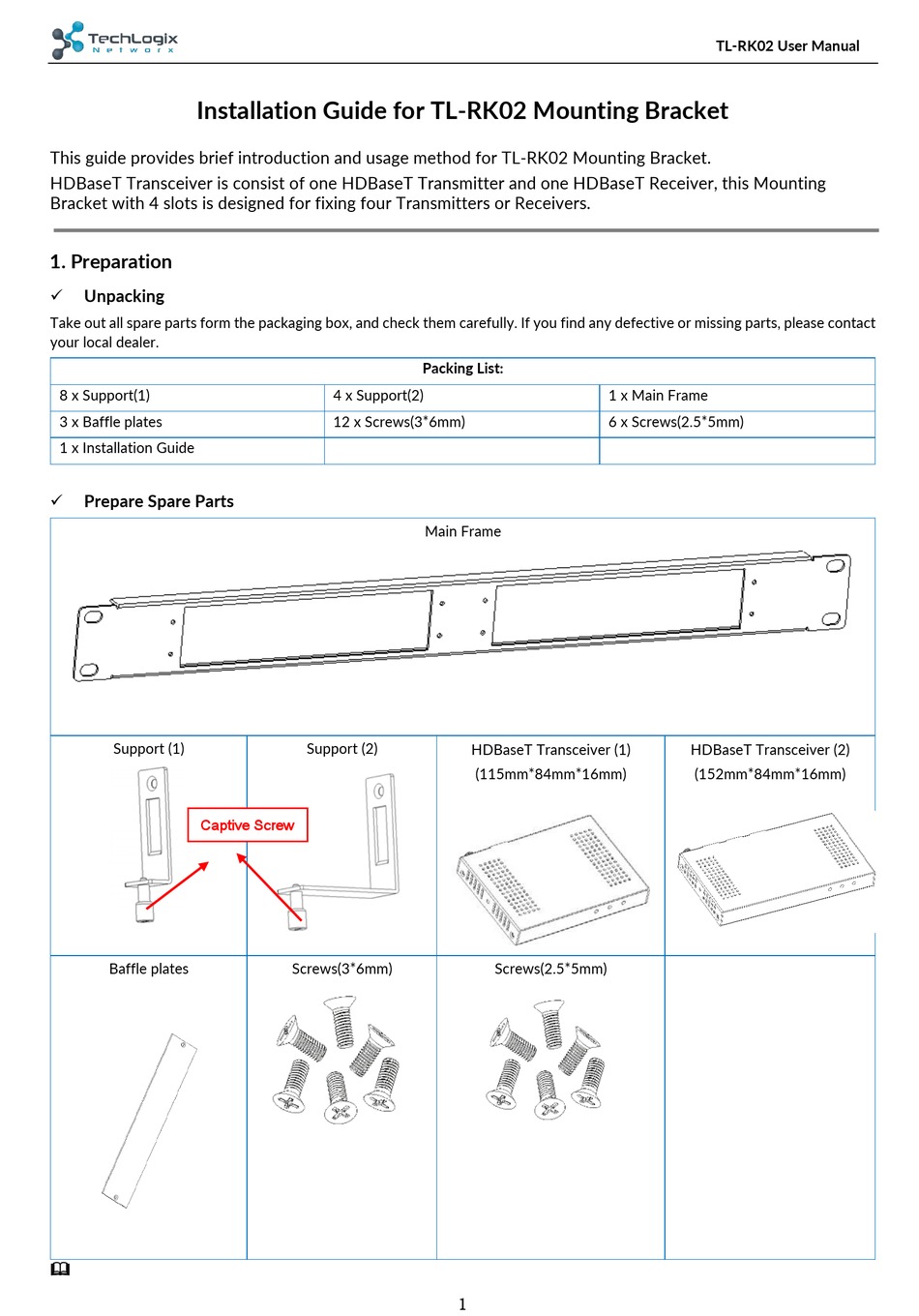

Installation Guide for TL-RK02 Mounting Bracket
This guide provides brief introduction and usage method for TL-RK02 Mounting Bracket.
HDBaseT Transceiver is consist of one HDBaseT Transmitter and one HDBaseT Receiver, this Mounting
Bracket with 4 slots is designed for fixing four Transmitters or Receivers.
1. Preparation
Unpacking
ü
Take out all spare parts form the packaging box, and check them carefully. If you find any defective or missing parts, please contact
your local dealer.
8 x Support(1)
3 x Baffle plates
1 x Installation Guide
Prepare Spare Parts
ü
Support (1)
Captive Screw
Baffle plates
&
Packing List:
4 x Support(2)
12 x Screws(3*6mm)
Main Frame
Support (2)
Screws(3*6mm)
1
1 x Main Frame
6 x Screws(2.5*5mm)
HDBaseT Transceiver (1)
(115mm*84mm*16mm)
Screws(2.5*5mm)
TL-RK02 User Manual
HDBaseT Transceiver (2)
(152mm*84mm*16mm)
Advertisement
Table of Contents
Summary of Contents for Techlogix TL-RK02
- Page 1 Installation Guide for TL-RK02 Mounting Bracket This guide provides brief introduction and usage method for TL-RK02 Mounting Bracket. HDBaseT Transceiver is consist of one HDBaseT Transmitter and one HDBaseT Receiver, this Mounting Bracket with 4 slots is designed for fixing four Transmitters or Receivers.
-
Page 2: Installation Procedure
TL-RK02 User Manual Pictures for reference only, subject to our existing products. ² 2. Installation procedure Screw Screw Step 1. Connect one Support (1) and one Support (2) to Step 2. Connect two Supports (1) to HDBaseT Transceiver (2) HDBaseT Transceiver (1), and fix them with screws (3*6mm). -
Page 3: Dimensional Drawing
TL-RK02 User Manual 3. Dimensional Drawing 483.00mm × 44.00mm ×11.50 (External Frame) Dimension (W*H*D) 155.60mm × 34.80mm (Internal Square Frame) Net Weight (g) 211g...
