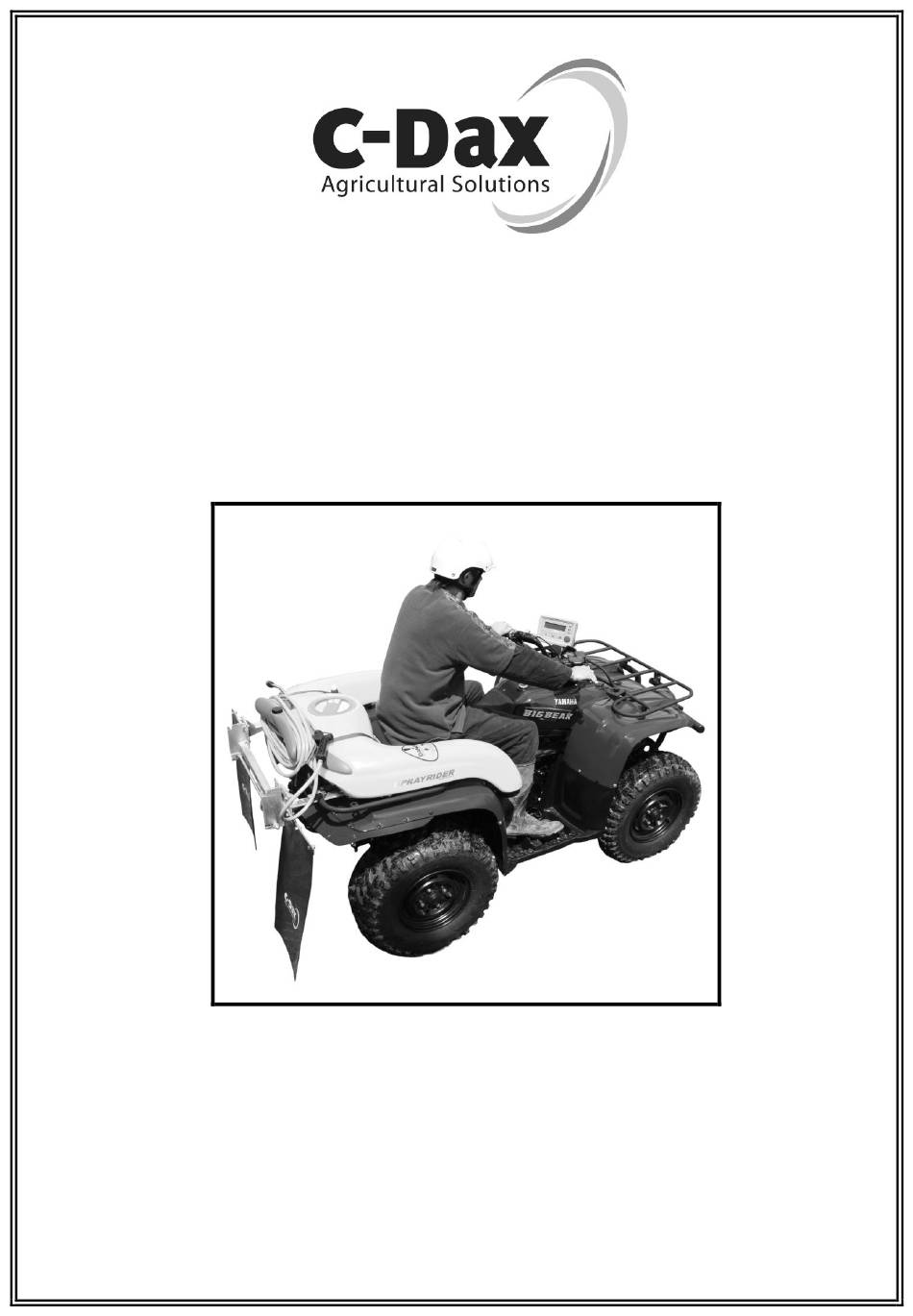

- Page 1 OWNER’S MANUAL FOR THE SPRAYRIDER™ G e n e r a t i o n 2 ATV MOUNTED SPRAYERS C-Dax Ltd PO Box 1010, 145 Harts Road Tiritea, Palmerston North Ph:06 354 6060 Fax:06 355 3199 E-Mail: sales@c-dax.co.nz www.c-dax.com...
-
Page 2: Safety Precautions
To reduce the chance of ATV instability, it is recommended that the ATV be stationary while spot spraying on a slope or hillside. WARNING C-Dax asks that you think of your dogs welfare when spraying by keeping them clear of spray zones, specifically when using the SR35. -
Page 3: Table Of Contents
C-Dax SPRAYRIDER™ ATV MOUNTED SPRAYERS OWNER’S MANUAL (Pt.No.2400-6900 Issue 30, Dated April 2018) TABLE OF CONTENTS Safety Precautions Contents Introduction Description Specifications Order Information Optional Equipment Warranty Liability ATV Compatibility Installation All Models Battery Cable Switch Mounting Fitting the Tank... -
Page 4: Introduction
DESCRIPTION The C-Dax Sprayriders™ Generation 2 are a high strength series of spray tanks manufactured of non-corrosive polyethylene designed for mounting on front or rear ATV carriers. All units come complete with 12V pumps, rugged spray guns, and a unique fresh-water wash tank (not applicable to the SR35). -
Page 5: Order Information
ORDER INFORMATION Sprayrider NZ, AUS, UK SR35 Pt. No. 1000 SR50 Pt. No. 1001 SR80 Pt. No. 1002 OPTIONAL EQUIPMENT Dual Tank Kit A second tank to increase the carrying capacity and spraying time of your Sprayrider™. Available in 2 tank sizes. -
Page 6: Warranty
HYD3 Pt.No.1024 (Triple band) QuickSmart Attachment Frame C-Dax’s QuickSmart Attachment Frame is a universal mounting system that allows implements to be inter- changed without the need for nuts, bolts and spanners. QuickSmart Attachment Frame Pt.No.1073 QuickSmart Attachment Upright Mounts for booms only Pt.No.1074... -
Page 7: Liability
C-Dax will at its option repair or replace the defective equipment (or part of the equipment) or notify the retailer of the equipment to refund the purchase price for such defective equipment to you in the event of a breach of this warranty, subject to the terms set out below. -
Page 8: Atv Compatibility
ATV COMPATIBILITY The Sprayrider™ Generation 2 models have been designed to fit the widest range of ATVs. At time of release the Generation 2 models were designed to fit all available Honda, Yamaha, Suzuki, Kawasaki, Polaris and Bombadier models available in New Zealand. For reasons of stability it is not recommended that 80L models be fitted on the front of your ATV. -
Page 9: Switch Mounting
The wire coming out of the fuse holder should be straight. Mount the C-Dax remote on/off switch in a convenient position onto the handlebars of the ATV. Mounting the switch on the left hand side leaves your right hand free to operate the throttle control. -
Page 10: Ratchet Strap
Ratchet Strap Secure the tank to the carrier frame using the ratchet strap provided. Route the strap as shown below ensuring the strap is positioned over the “wings” of the auxiliary tank as shown, nearest to the centre of the tank as possible. -
Page 11: Spray Gun
Spray Gun Locate the spray gun (HGSR) and lance inside the spray tank (Gun for SR35 will be located in the shipping box). For SR35 the self store hose simply needs to be pushed into the push lock fitting as per the picture below left SR35 Style, SR50/80 Style Push fit... -
Page 12: Theory Of Operation
THEORY OF OPERATION Spray fluid is prepared and placed in the tank via the lid opening and strainer basket. Foreign matter is trapped in the strainer mesh for disposal after the tank has been filled. When the pump is switched on power is applied to the pump motor from the vehicle electrical system. When the pump operates, fluid is drawn through the filtered valves at the base of each leg of the tank and into the pump head via hoses inside the tank. -
Page 13: Hand Washing
(consequential or otherwise) arising directly or indirectly from the use of this equipment. Chemical Advice C-Dax Ltd or their agents cannot make recommendations or give advice as to the use of chemicals and cannot accept responsibility for any damage, injury or other consequence for disregarding this warning notice. Contact your chemical supplier for advice. -
Page 14: Operating Hints
Increasing the tip size will decrease the spraying pressure. All spray booms sold by C-Dax for use with the Sprayrider™ are fitted with non-drip check valves. These valves close at a pressure of 0.8 bar (10 psi). For... -
Page 15: Routine Maintenance
The C-Dax valve assembly at the base of each leg has a stainless steel mesh filter for straining the fluid before it reaches the pump. Unscrew the cap at the base of each leg and allow the valve assembly to hang free from the tank. -
Page 16: Removal Of The Sprayrider
Each HGSR spray gun has a built-in filter in the spray tip. Unscrew the red spray tip holder from the lance nut to expose the tip filter. Pull the lance nut back to reveal the filter. Rinse under a hose and replace the filter element in the spray tip (the dished side faces toward the trigger). -
Page 17: Removing The Pump
Removing the Pump SR35 Style SR50/80 Style CAUTION To prevent damage to the pump and tank connector ensure the tank is upside down when removing the pump cover. Remove the vacuum release valve first to prevent damage. Remove the vacuum release valve. Place the sprayer upside down. -
Page 18: Troubleshooting
TROUBLESHOOTING C-Dax Ltd and their distributors have a comprehensive parts inventory and capable service staff. Repairs should only be undertaken by C-Dax, or an authorised C-Dax service center. Symptom Possible causes (procedure) Probable solution Blown fuse (check wiring for shorting... -
Page 19: Sr50/80 Parts Diagram
SR50/80 PARTS DIAGRAM... -
Page 20: Sr50/80 Parts List
16.6<>19.8mm-S/S 6200-2980 Pipe-Fitting-Flojet-Elbow-10-13mm ShankxQuad Port Pump-Nylon 4100-0008 Hose-Spray-Delivery-40 Bar-8.5mm ID-Yellow (10m) 2000-2014 Clamp-Hose-Oetiker-Single Ear Stepless- 14.5<>7.0mm-S/S 3400-1110 Filter-Basket-D150-Mesh 8427-6005 Lid & Ring Assembly-D150-C-Dax Vented-Blue-Nylon 3270-8012 Fastener-Self Tap-Screw-CSK-8Gx1/2"-Pozi-Stainless 5500-9110 O'Ring-Metric-5.0x80mm-N70 3400-5500 Filter-Nut-Bowl-Arag-Series 312 & 314-Nylon 7500-5100 Tank-Rinse-Sprayrider-Blue-MDPE 1600-7001 Cap-Tank-Freshwater-Drilled-Black 3070-0516 Fastener-Machine-Screw-CSK-M5x16-Phillips-... - Page 21 8410-8450 Strap-Tie Down-Ratchet-Blue 2250-8200 Cover-Switch-Water Proof Boot-Toggle Lever-Rubber- Black 3600-1010 Fuse Link-Electrical-Standard Blow-15 Amp-1"x1/4"- Glass 8450-2410 Switch-Electrical-Toggle-SPST-250V-16Amp 8427-8270 Switch Assembly-Handlebar Mount-Sprayrider 50/80 6200-5420 Pipe-Fitting-Nut-Back-11/16UNFM-Plastic Length of hose was 0.5M pre October, 2006 Post serial number; SR50-1573 SR80-1925 Connector was a straight (14014) pre October, 2006 Post December, 2005 O Ring was 83 x 3.5 NI (10357) pre serial number 366 O Ring was 80 x 4 NI (10314) post serial number 365 and pre serial...
-
Page 22: Sr35 Parts Diagram
SR35 PARTS DIAGRAM... -
Page 23: Sr35 Parts List
SR35 PARTS LIST Item e9 Part no e9 Description 1 7500-3360 Rota-Tank-35L-Sprayrider-Yellow-Incl-MIG 2 8427-6005 Lid & Ring Assembly-D150-C-Dax Vented-Blue-Nylon 3 4000-5000 Hand Gun-SR-Lance-Complete-600mm-Cone Nozzle-Adjustable 4 6800-5000 Pump-Flojet-Triplex-12 Volt-7.6LPM-Quad Ports 5 8427-9690 Sub-Valve Assembly-Suction-Sprayrider 50/80 6 3400-5500 Filter-Nut-Bowl-Arag-Series 312 & 314-Nylon 7 5500-9110 O'Ring-Metric-5.0x80mm-N70... -
Page 24: Hgsr Spraygun Parts Diagram
HGSR SPRAYGUN PARTS DIAGRAM Item QTY. e9 part no e9 description 1 4000-5028 Hand Gun-SR-Nozzle Filter-Mesh Cup-Stainless 1 4000-5030 Hand Gun-SR-Nozzle Nut-Red-Polypropylene 1 4000-5020 Hand Gun-SR-Connector-Hose-Shank 10mmx1/2BSPM-Black-Nylon 1 4000-5024 Hand Gun-SR-Handle With Blue Trigger-25 Bar-1/2"BSPF 1 4000-5026 Hand Gun-SR-Nozzle Adjustable-Cone-2mm-Brass 2 4000-5042 Hand Gun-SR-Washer-Gasket-19x12x3mm-White-Nylon 1 4000-5022... - Page 25 FLOJET SPRAY PUMP RELACEMENT PARTS The following replacement parts for the 12V Flojet 7.6 L/Min pump are available from any C-Dax dealer: NOTE Please select the correct hose connection type for your pump Quadport Type: Screw Type: ITEM PART NO.
