Summary of Contents for Challenge FD-40M

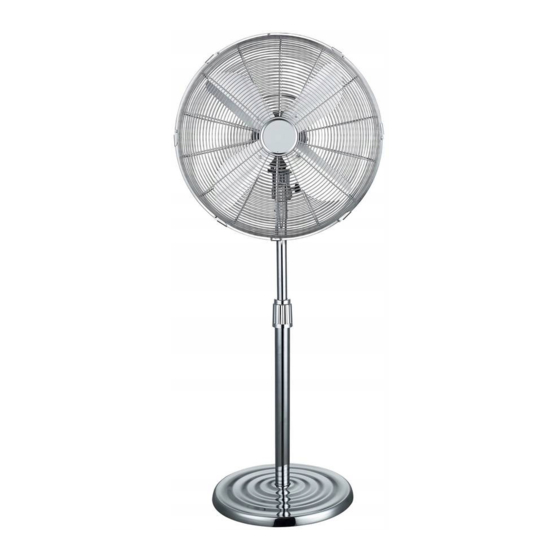

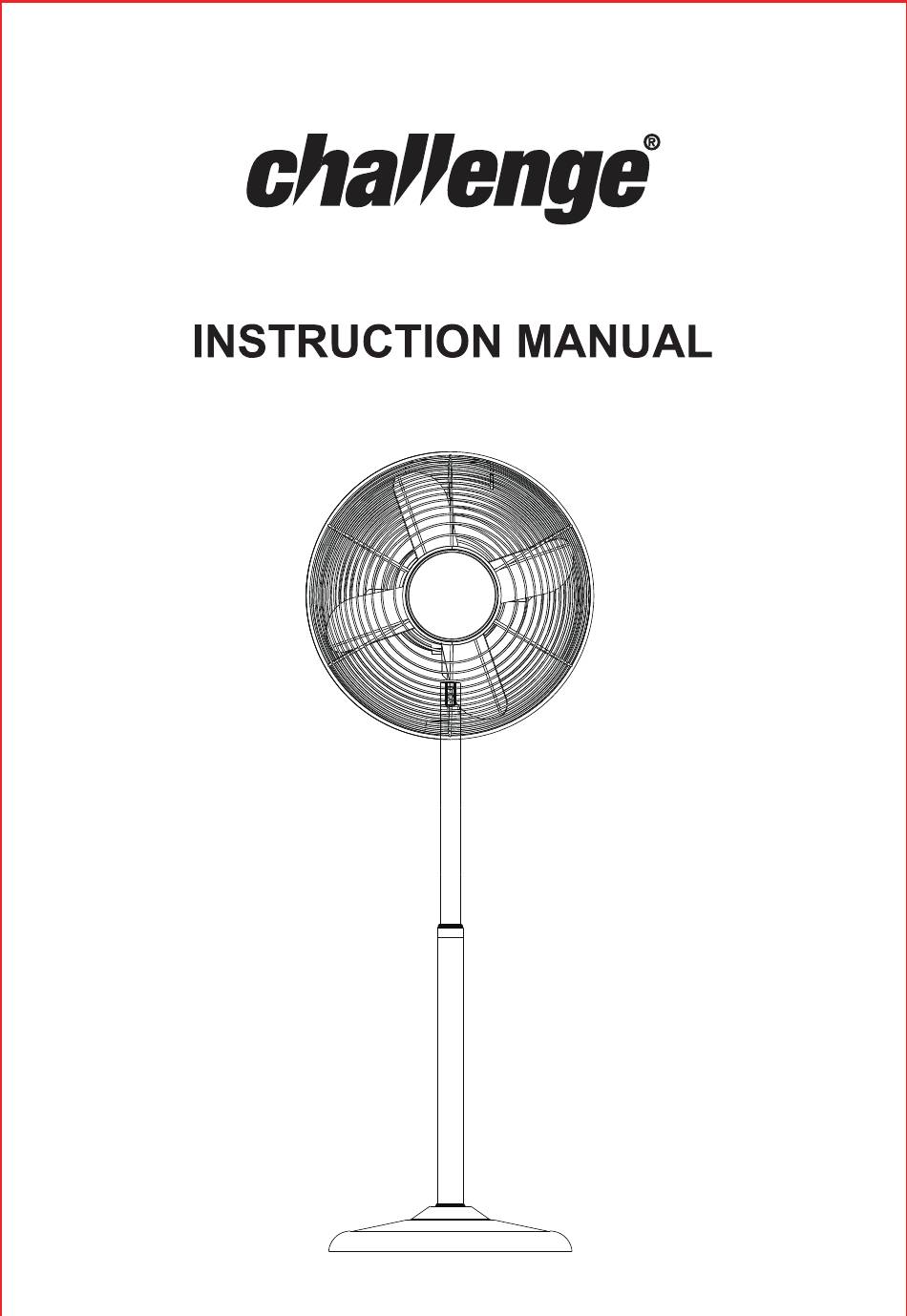

- Page 1 16 Inch Stand Fan Chrome FD-40M...
- Page 2 Read all instructions before using this appliance. Carefully retain these instructions for future reference. Challenge Thank you for choosing a fan. It is a remarkably versatile product which offers a choice of air-circulation for summer comfort. This fan has been designed and manufactured to high standards of engineering and with proper use and care, as described in this leaflet, this appliance will give you years of useful service.
-
Page 5: Description Of Parts
Description of parts 1 Front Guard 2 Locking screw Fan Blade Rear Guard 5 Front Guard Nut (x1) 6 Telescopic Stand 7 Pivot Adjustment Screw 8 Tilt Adjustment Screw 9 Motor Housing 10 On/Off/Speed Control 11 Oscillating Control 12 Motor Spindle 13 Fan Blade Retaining Screw (x1) 14 Guard Retaining Clips... -
Page 6: Operating Instructions
2. Next attach the motor housing (9) to the top of the telescopic stand (6).First remove all the screws, etc. (7, 8, 19 & 20) from the motor housing bracket. 3. Place the Motor Housing on the top of the stand and thread the Large Pivot Bolt (20) through the bracket and screw in the Small Retaining Screw (8) and tighten (but do not over tighten). -
Page 7: Cleaning And Maintenance
CLEANING AND MAINTENANCE Your fan reauires little maintenance and contains no user serviceable parts. Do not attempt to dismantle the Fan Motor body yourself. The fan is permanently lubricated and will not require additional lubrication. Important: Do not allow water to run into the interior of the fan , as this cause an electric shock .DRY THE FAN THOROUGHLY with a dry cloth, checking that the fan is completely dry before operating the fan. - Page 8 This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.
-
Page 9: Connection To Power
CONNECTION TO POWER Before Switching on make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. MAIN CORD Wiring Instructions: Should it be necessary to change the plug please note the wires in the mains lead are coloured in accordance with the following code: BLUE - NEUTRAL BROWN - LIVE... -
Page 10: Technical Specifications
Technical Specifications Description Symbol Value Unit Model no. FD-40M Voltage 220-240 Insulation class Class I Maximum fan flow rate 43,02 /min Fan power input 35,70 Service value 1,21 /min)/W Off mode power consumption Fan sound power level 65,30 dB(A) Maximum air velocity...
