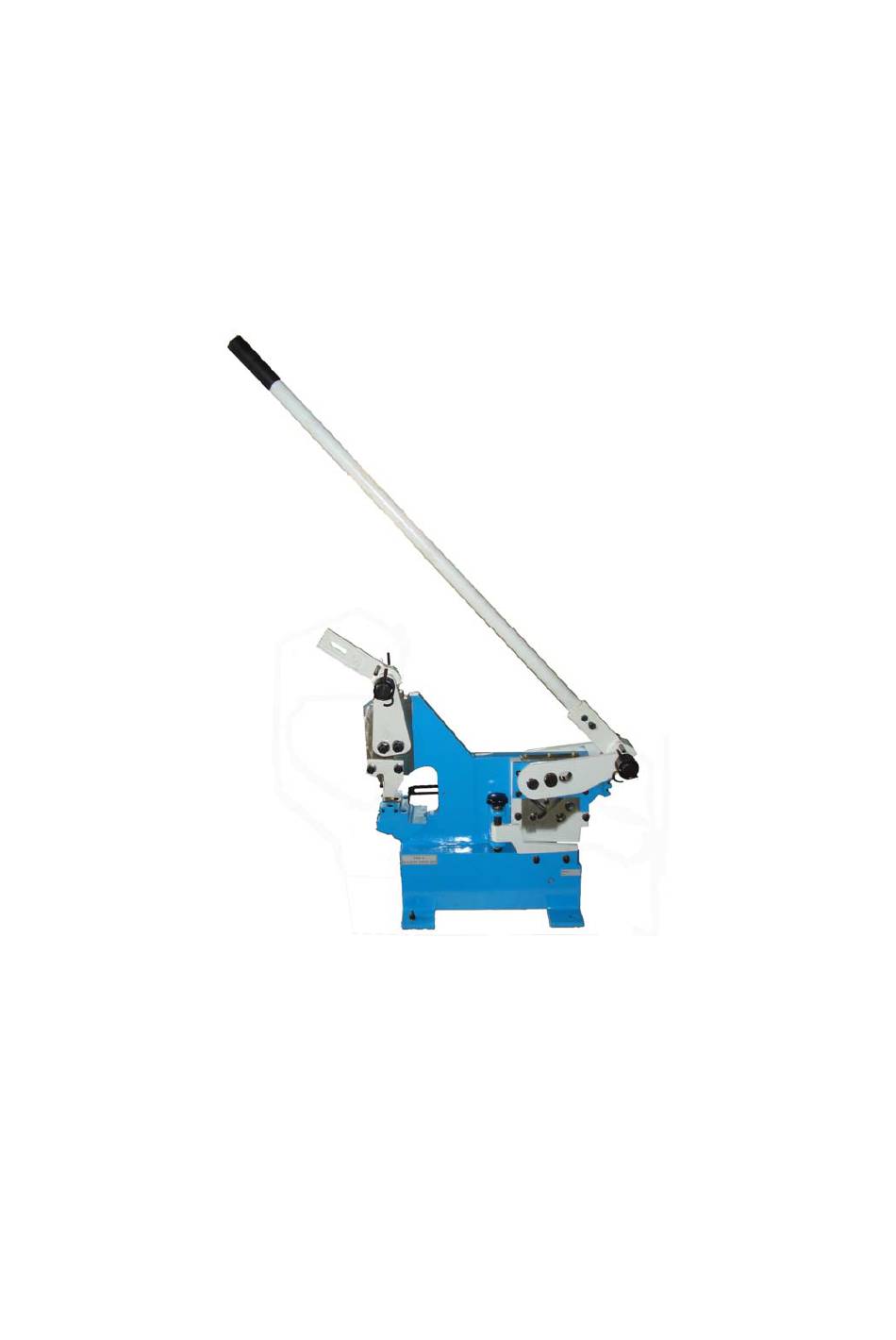

- Page 1 BAR&SECTION PUNCHING SHEAR PBS-9 MANUAL...
- Page 2 0.5mm to 4.5mm thickness. This machine adopts welded steel plate construction. Light weight allows moving it easily. Operation is easy and simple. So it is especially suitable for the medium or small workshops and home-use. Main technical specifications (mm): Model PBS-9 Round steel 22mm Square Steel 20mm...
- Page 3 different because the position of the spring is different. 7. Keep children far away from the machine. OPERATION CUT STEEL PLATE, STRIP STEEL 1. Raise handle (46), make upper blade and down blade keeping a certain distance. 2. Put the steel plate on the down blade (33), ensure the suitable size, then tighten the handle (8), fix the work-piece with the plate (21), turn the handle (4) downward strongly.
- Page 4 PARTS LIST Item Description Item Description Body Spring Pin Bolt Supporting Shaft Support Plate Left Spring Washer Screw Down Blade Connecting Plate Shaft Ring Bolt Handle Screw Handle Sleeve Handle Sleeve Screw Bolt Washer Plate Blade Base Block Oil Cup Washer Tooth Plate Bolt...
- Page 5 ASSEMBLY DRAWING...
- Page 6 Note: This manual is only for your reference. Owing to the continuous improvement of the machine, changes may be made at any time without obligation on notice.
