Summary of Contents for PROformance Hoops PROclassic 60

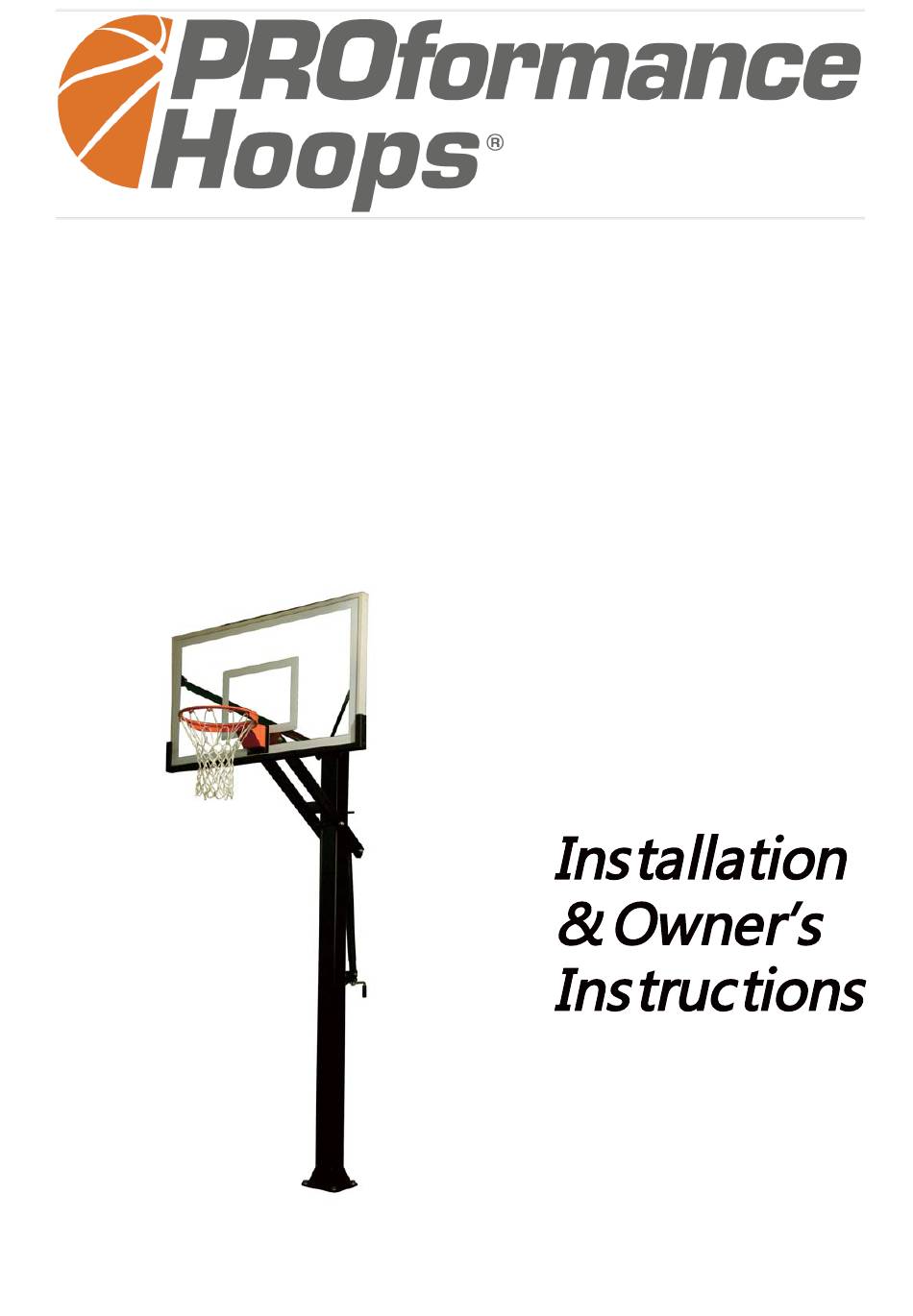

- Page 1 PROclassic 60 ADJUSTABLE HEIGHT GOAL SYSTEM...
- Page 2 Thank you and congratulations for purchasing a Proformance Hoops Goal - the finest basketball goal system on the market today! You will discover that Proformance Hoops is unsurpassed in product innovation, quality and integrity in the basketball equipment industry. We are focused on designing, engineering and products that meet and exceed expectations of today’s toughest playing...
- Page 3 Consult Proformance Hoops if you do not...
-
Page 4: Parts List
PARTS LIST PARTS LIST ITEM QTY DESCRIPTION Main Post Actuator Actuator plastic pipe Mounting plate Lower Extension Arm Upper Extension Arm Backboard Rim Height Sticker Actuator attach sleeve Flex Rim (Separate pack) UNDERGROUND PARTS Anchor Template 16mm Anc hor J-bolts Thick washer for J-bolts 12 Hex nut M16 Anchor Rebar 36"L... - Page 5 WARNING A hammer or mallet may be needed during assembly. Place the Pole on the Anchor system. Slide one Thick washer M16 (U3) over each J-bolt (U2). Lift the Pole (A) onto Anchor system, secure with one thick washer (U3), one Lock washer M16 (U6) and one Hex nut (U4) for each J-bolt.
- Page 6 Attached Actuator (B) to Lower extension Attached Actuator (B) to Actuator mounting Arm (F). plate (D). Slide Actuator plastic sleeve (C) over top of Figure 4 in previous page. Actuator (B), align the hole in the Plastic sleeve with the hole in the Actuator, Move Actuator between two Mounting plate (D), Figure 4 in previous page.
- Page 7 Attach Goal (K) to Backboard (G). Remove the Rim box cover, put Goal against Rim pad (Pre-installed), secure it with 4 Carriage bolts M10x45 (#R1), 4 Flat Figure 6 washers M10 (#R2), 4 Flange nuts M10 (#R3) See Figure 6 Tighten all four bolts and nuts.
