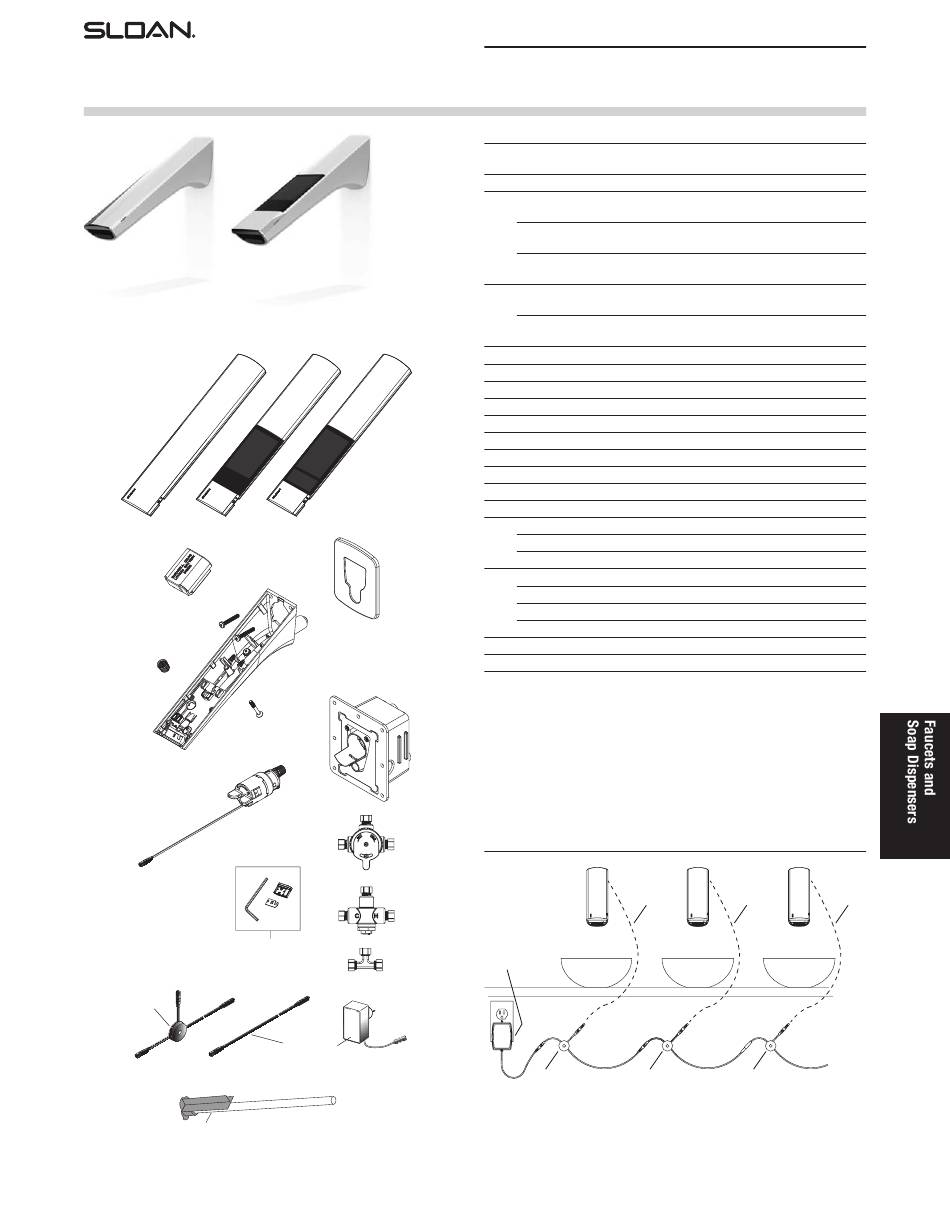

Sloan EFX-8 SERIES Repair Parts And Maintenance Manual

EFX-8XX SERIES
6A 6B
7
4
3
11
15
The information contained in this document is subject to change without notice.
6C
14
1
5
8
9
2
10
12
13
Repair Parts and Maintenance Guide
BASYS
®
Infrared Sensor Activated
PARTS LIST—BASYS FAUCETS
Item
No. Code No. Part No. Description
1. — — Wall Mount Faucet Assembly
2. 3324104 EFX-1002-A 0.5 gpm/1.9 Lpm Multi-Lam Spray Head (includes
insert, o-ring, 2.5 mm allen key, and removal tool)
3324103 EFX-1001-A 1.5 gpm/5.7 Lpm Aerated Stream Insert (includes
insert, o-ring, 2.5 mm allen key, and removal tool)
3324102
EFX-1000-A 1.5 gpm/5.7 Lpm Laminar Stream Insert (includes
insert, o-ring, 2.5 mm allen key, and removal tool)
3324162
3. EFX-1011-A 0.5 gpm/1.9 Lpm Solenoid Valve Caddy Assembly
– Wall (Green)‡
3324163
EFX-1012-A 1.5 gpm/5.7 Lpm Solenoid Valve Caddy Assembly
– Wall (Blue) ‡
0324019
4. EFX-19 Strainer (Filter)
—
5. EFX-1013-A Mounting Assembly
3324160
6A. EFX-1009-A Bowed Crown Assembly
3324138
6B. EFX-1010-A Solar Crown Assembly
6C. 3324139 EFX-1018-A Solar Crown with LCD Assembly
7. — — CR-P2 Lithium Battery
8. 3326009 MIX-60-A Mechanical, Below Deck Mixing Valve
9. 0326045 MIX-135-A Thermostatic, Below Deck Mixing Valve
10. 3365461 ETF-617-A Bak-Chek Tee Assembly
11. 0335023 EAF-23-A Splitter
12. 0335024 EAF-24-A 11-13/16" (300 mm) Extension Cable
0335025 EAF-25-A 47-1/4" (1200 mm) Extension Cable
0335015
EAF-17-A 126" (3200 mm) Extension Cable
0335009
13. EAF-11 Plug-in Adapter (US)
0335041
EAF-41 Plug-in Adapter (EU)
0335039
EAF-39 Plug-in Adapter (UK)
0335037
EAF-37 Box Mount Adapter
14. 3324165 EFX-1014-A Wall Flange
15. — — Purge Tool
NOTE: If changing flow rate caddy and spray insert must be changed in conjunction.
† Single Supply faucets include Bak-Chek
®
— in Item No. column = Not shown in illustration
— in Code No. and Part No. column = Not sold separately
‡ Old style / T-shaped contact.
New style / Plug contact
Electrical Connection for up to Six (6) Faucets Using One (1) Adapter
CABLE
BEHIND
THE WALL
6 VDC
PLUG-IN
ADAPTER
SPLITTER AND SPLITTER AND
EXTENSION CABLE EXTENSION CABLE
NOTE: HARDWIRE FAUCETS SUPPLIED WITH ONE (1) 47" (1.2 m) EXTENSION CABLE.
NOTE: EXTENSION CABLES AVAILABLE SEPARATELY.
NOTE: USE ONLY SLOAN SUPPLIED POLARIZED AND KEYED CABLE ASSEMBLIES.
IMPORTANT: CUTTING AND SPLICING WIRES WILL VOID WARRANTY.
141
CABLE CABLE
BEHIND BEHIND
THE WALL THE WALL
TO ADDITIONAL
FAUCETS (6 MAX)
