RFID Device Manual

Model：XDUR-840

Size： 295mmx245mmx110.3mm

General description

Xiamen Xindeco IOT Technology Ltd.'s XDUR-840 is a high-performance UHF RFID

reader based on the Impinj R2000 chip. It is compliant with EPC C1 Gen2 / ISO

18000-6C and FCC modular approval requirements.

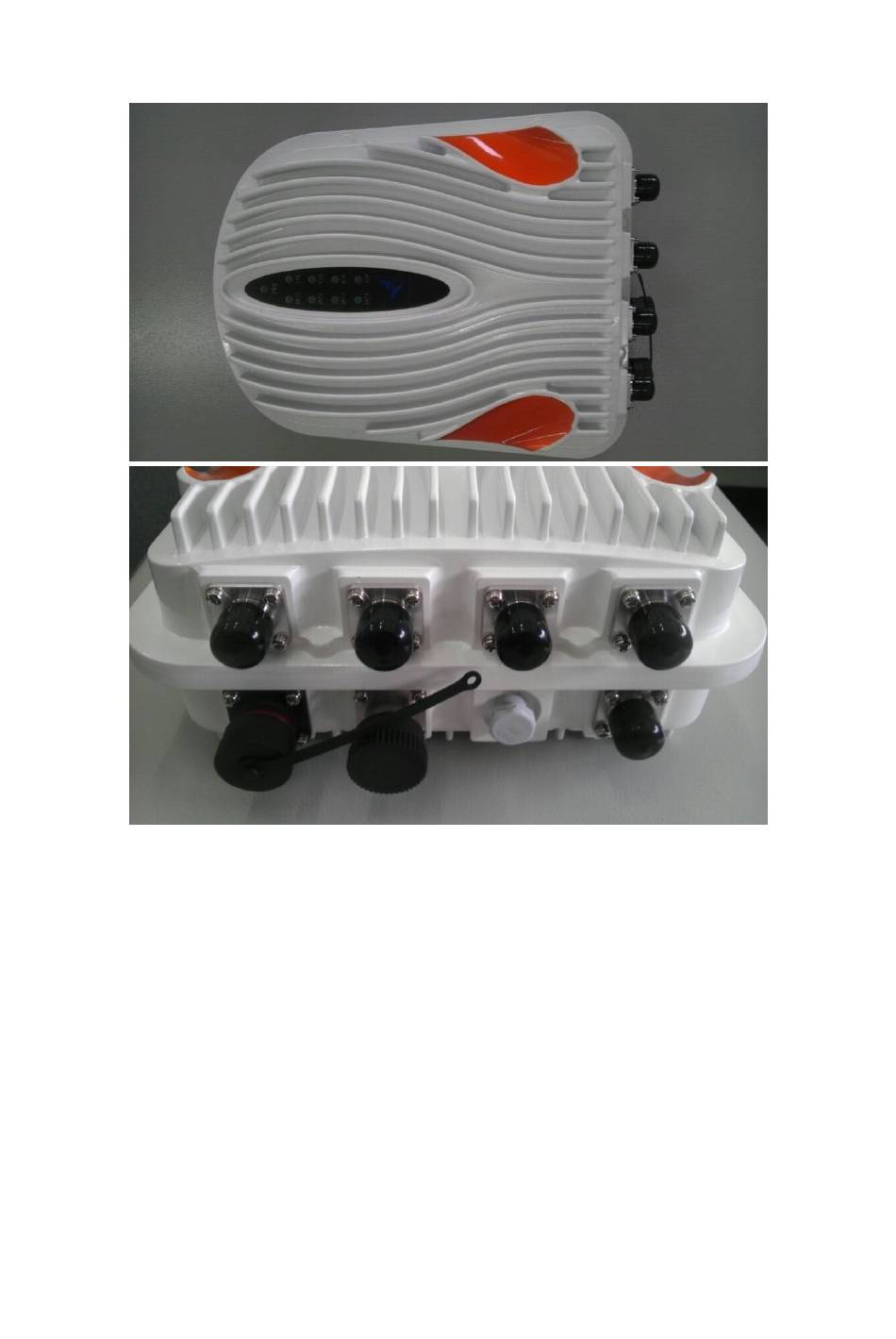

XDUR-840 has four (N type) antenna connectors thatcan be configured as four

Table of Contents

Need help?

Do you have a question about the XDUR-840 and is the answer not in the manual?

Questions and answers

Summary of Contents for Xiamen Xindeco XDUR-840

Page 1 Xiamen Xindeco IOT Technology Ltd.’s XDUR-840 is a high-performance UHF RFID reader based on the Impinj R2000 chip. It is compliant with EPC C1 Gen2 / ISO 18000-6C and FCC modular approval requirements. XDUR-840 has four (N type) antenna connectors thatcan be configured as four...
Page 2 XDUR-840uses Ethernet interfaces to connect to an external processor board or PC host. Xiamen Xindeco IOT Technology Ltd. offers a starter kit to enable you to design XDUR-840into your application quickly and easily. This kit includes SDK, demo code,and documentation. With its excellent operating range, and high quality UHF RFID technology, XDUR-840is the perfect solution for RFID applications.
Page 3 Maximum tag read rate of over 100 tags per second Ø Maximum tag read distance of 27 feet (9 m) with 12 dBi antenna Ø Easy to use Starter Kit to shorten product development time Ø Specifications Protocol RFID EPCglobalGen 2 (ISO 18000-6C), DRM Architecture RFIDASIC IMPINJ R2000...
Page 4 TX power Adjustable from 10 dBm to 20 dBm FrequencyStability ±20 ppm ModulationDepth 90% nominal DataEncoding FM0 or Miller code BitRate Supports uplink data rates of up to 640 Kbps Performance Tag Read Rate Over 100 tags/second Inventory Reliability Through anti-collision Tag Read Distance 27 feet (9m) with a 12 dBi antenna (36 dBm EIRP) Compliance...
Page 5 Package Content Check the package before connecting and operating the XDUR-840. If one or more items in this package are lost, contact your local dealer. Quick Start Connecting the XDUR-840 to a PC Before operating the DEMO software for development of the RFID device, follow the steps made below to connect the RM300 to a PC.
Page 6 4.Insert the connector of antenna into one of the four antenna ports of the XDUR-840 UHF RFID Reader. You can connect at most four antennae at the same time. 5.Operate the configuration of antenna port by demo.
Page 7 6.Open the demo. Click Startto scan RFID tags by using the XDUR-840UHF RFID Reader. The FCC federal communications commission interference statement Note: 1, don't put it on the microwave. 2, cannot and oil organic liquid contact. 3, device has to be loaded (antenna) when working.
Page 8 FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
