IONIC Rescue Pro PFD User Manual

Personal flotation device

Advertisement

Quick Links

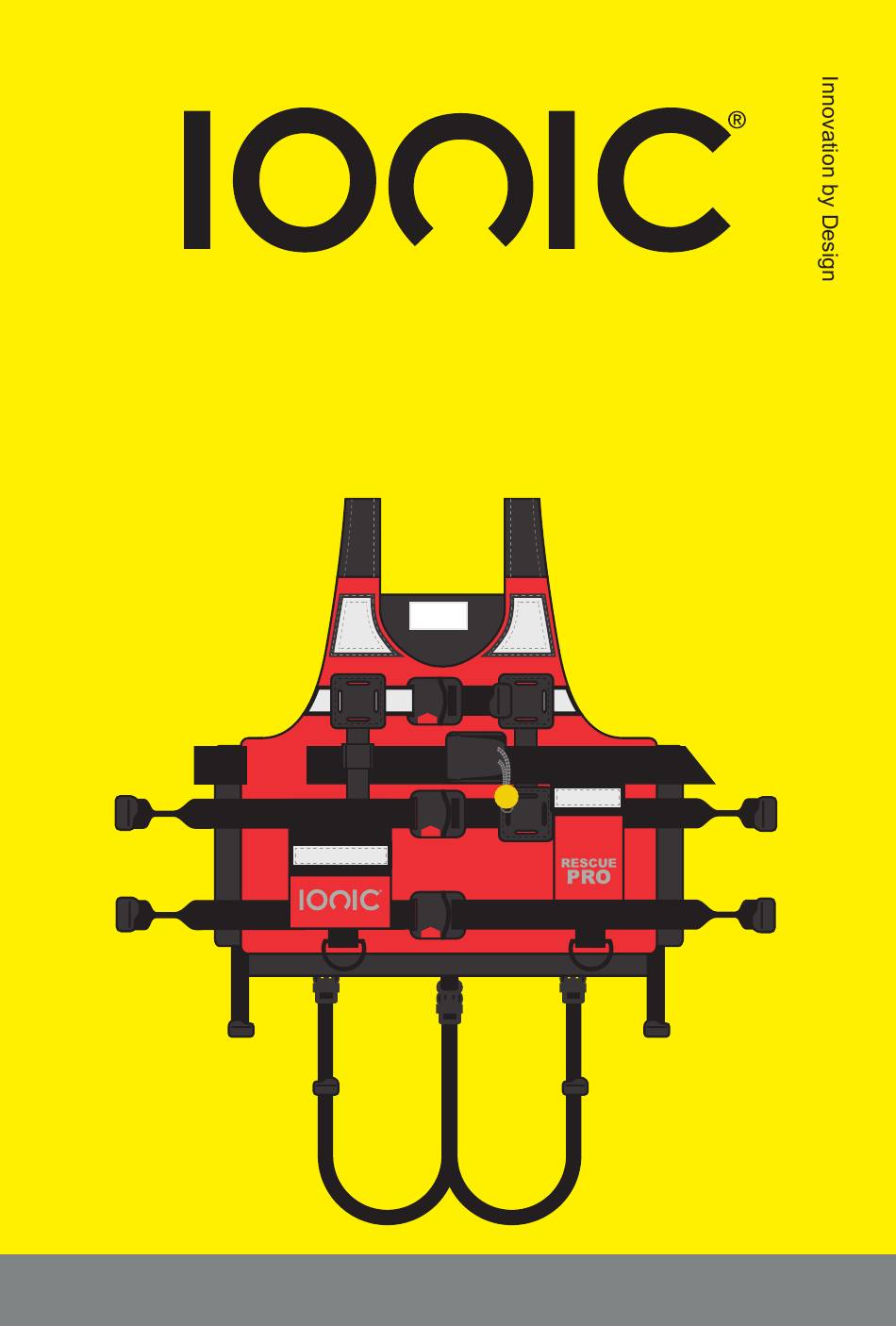

Rescue Pro PFD
User Manual
Serial No:
1
IONIC is a Safequip registered product brand

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rescue Pro PFD and is the answer not in the manual?

Questions and answers

Summary of Contents for IONIC Rescue Pro PFD

  • Page 1 Rescue Pro PFD User Manual Serial No: IONIC is a Safequip registered product brand...
  • Page 2 Waterproof ID badges can be supplied upon request, please see example below - FOR EXAMPLE ONLY Part Numbers SAF30012 Rescue Pro PFD (including crotch straps & mesh stowage bag) SAF33053 Spare crotch strap set SAF44009 Spare PFD mesh stowage bag...
  • Page 3 Pre-fitting the Cowtail Fig 1 1. Open the fix lock buckle and un-thread the webbing belt through x4 webbing loops on the PFD (Personal Flotation Device). 2. To ensure the cowtail is fitted correctly the webbing belt must be threaded through the fixed ring or karabiner on the cowtail so that it sits between the two vertical webbing loops.
  • Page 4 Donning the PFD Fig 2 Before donning make sure that the shoulder and side compression straps are fully extended. Don the PFD and starting from the bottom clip the three SR buckles together. (see illustration in fig 2) Donning and User Instructions...
  • Page 5 Adjusting the PFD Fig 3 Tighten the top black webbing strap by holding the buckle with one hand and pulling the black webbing strap to the left with the other hand. (see illustration in fig 3) Donning and User Instructions...
  • Page 6 Adjusting the PFD Fig 4 To ensure the PFD is fitted correctly, tighten the side compression straps. Starting with the bottom two straps, hold them both and pull forward simultaneously to tighten. Repeat process for the next two side straps. (see illustration in fig 4) Donning and User Instructions...
  • Page 7 Adjusting the PFD Fig 5 Finally take the two shoulder straps and pull forward simultaneously to ensure the correct adjustment. The personal flotation device should fit snug around body.(see illustration in fig 5) At this point clip the leg straps into the two front buckles located in the waistband and adjust for comfort.
  • Page 8 Adjusting the quick release belt Fig 6 Open the plastic 50mm cam buckle using the toggle and thread the 50mm harness webbing belt through the plastic cam buckle. Ensure that the webbing sits correctly in the buckle back plate, making sure no part of the webbing is twisted which could cause the webbing to jam in operation.
  • Page 9 The user is responsible for ensuring there is sufficient free harness webbing when the PFD is fully adjusted and correctly sized. This is to enable the user to open the quick release buckle in the event of an emergency, as an alternative to the toggle release. We recommend that this option is included in your standard operating procedures as a training requisite.
  • Page 10 Removing your PFD Fig 8 To remove the PFD reverse the procedures previously listed. To release the SR buckles, squeeze the red button. If the PFD is for personal use leave all the adjustable straps as they are. Donning and User Instructions...
  • Page 11: Care And Maintenance

    Care and Maintenance It is recommended that you regularly inspect your personal flotation device including the buckles, stitching, webbing and the outer fabric cover for any signs of excessive wear or damage. A full annual inspection is recommended as part of any standard operational procedure.
  • Page 12 Safequip Ltd. Head Office Unit 4, Block 3, Dumyat Business Park Tullibody, Scotland FK10 2PB sales@safequip.co.uk www.safequip.co.uk © Safequip Ltd (2016) All rights reserved...
