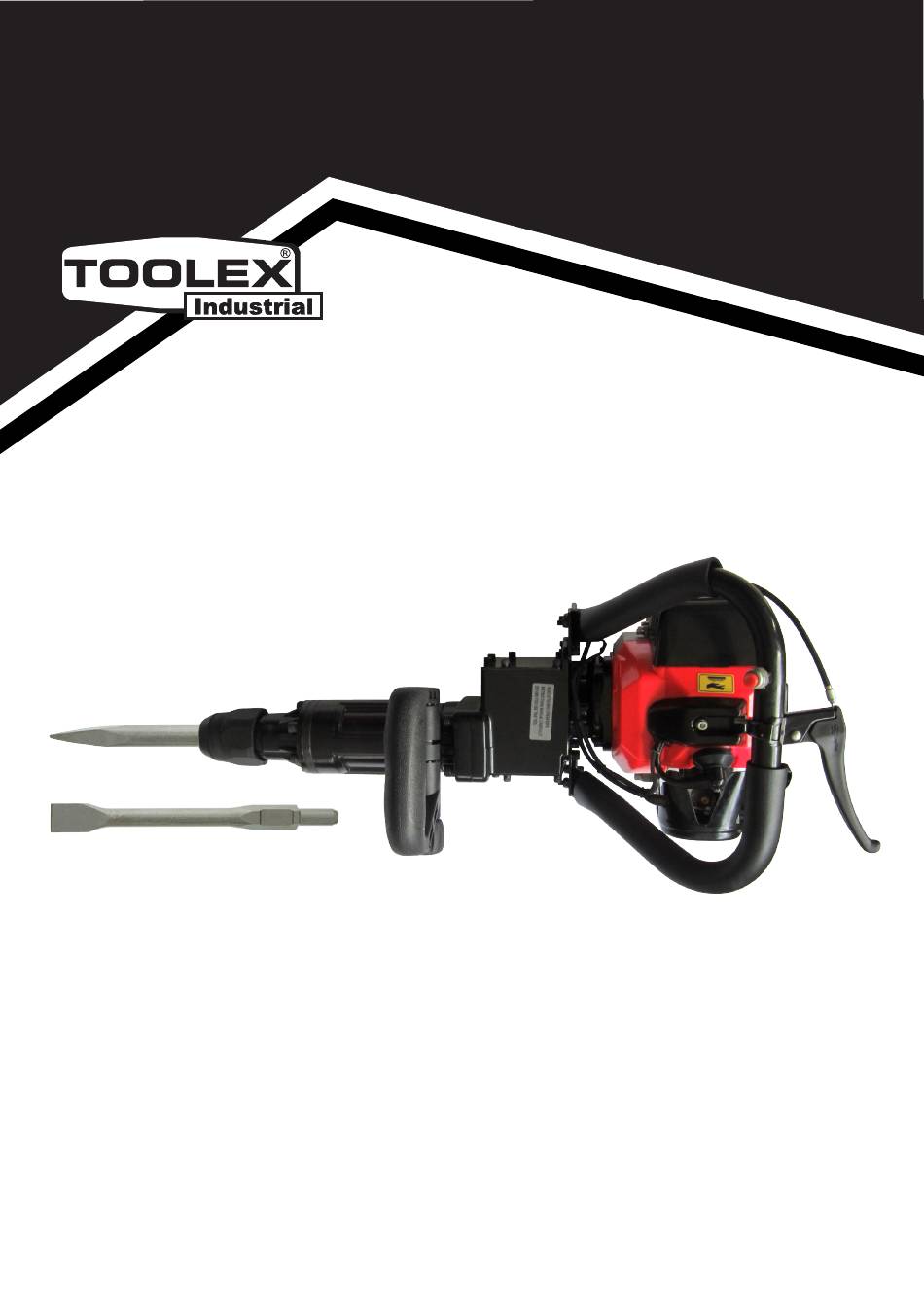

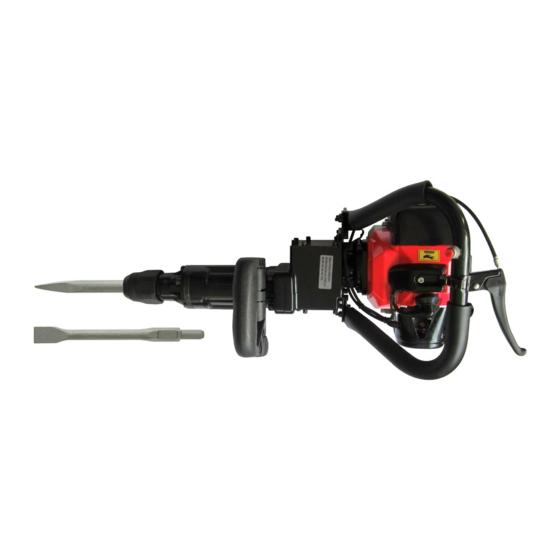

- Page 1 595951 PETROL JACK HAMMER INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
7. Starting The Machine .............7 8. Running & Stopping The Machine ........7 9. Maintenance ..............8 10. Problems...............8 11. Maintenance Cycle ............10 12. Part List of 595951 Jack Hammer ........11 13. Part List of Petrol Engine ..........13 1. SPECIFICATIONS Model Number 595951... -
Page 3: Parts Location
2. PARTS LOCATION 1. Handle 10. Assist Handle 2. Muffler 11. Cylinder Block 3. Stop Button 12. Drill Seat Installation Set 4. Throttling Handle 13. Sliding Sleeve 5. Starter Handle 14. Protect Cover 6. Air Filter 15. Drill 7. Tank Cap 16. -
Page 4: General Safety Rules
3. GENERAL SAFETY RULES WARNING When using the unit, basic safety precaution, including the following should always be followed to reduce the risk or serious personal injury and damage to the unit. Read all these instructions before operating this unit and save this instruction manual for further reference. •... -
Page 5: Symbols
4. SYMBOLS Indicates an imminently hazardous situation which, if not avoided, Danger will result in death. Indicates a potentially hazardous situation which, if not avoided, Warning could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, Caution may result in minor or moderate injury. -
Page 6: Fuelling
Fig 4. 6. FUELLING MOTOR FUEL: MIX THE PETROL AND OIL Conditions Petrol : Engine Oil Work within 20 hours 20:1 Work after 20 hours 25:1 1. Use fresh unleaded petrol. You must use 100% synthetic oil specifically made for heavily stressed two stroke engines. -
Page 7: Starting The Machine
• Never operate the machine without a properly functioning muffler and spark arrestor installed. • Never operate the machine unless it is property assembled and in good working condition. • Do not use petrol which contains ethanol or methanol as it may damage the fuel lines and other engine parts. -
Page 8: Maintenance
9. MAINTENANCE Replacing and cleaning the air filter For proper performance and long life, keep air filter clean. 1. Push down the cover of the air filter. 2. Remove the air filter and clean it in warm soapy water. Let dry completely. For best performance, replace the air filter annually. - Page 9 • Clean excess fuel from the combustion chamber by cranking the engine several times while the spark plug is removed. • Install the spark plug and firmly tighten it with the spark plug wrench. • Repeat the starting procedure as if the machine was already warm. If the engine won’t stop: •...
-
Page 10: Maintenance Cycle
11. MAINTENANCE CYCLE General Maintenance Page 10... -
Page 11: Part List Of 595951 Jack Hammer
12. PART LIST OF 595951 JACK HAMMER Page 11... - Page 12 Page 12...
-
Page 13: Part List Of Petrol Engine
13. PART LIST OF PETROL ENGINE Page 13... - Page 14 Page 14...
- Page 15 CONSUMER SERVICE CENTRE PO BOX 1012 HAMILTON NSW 2303 AUSTRALIA Made in P.R.C.
