INSTALLER, TECHNICAL ASSISTANCE
CENTRE AND USER MANUAL
TSOL CN S BLU 30° system

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSOL CN 150/1 S BLU 30 and is the answer not in the manual?

Questions and answers

Summary of Contents for thermital TSOL CN 150/1 S BLU 30

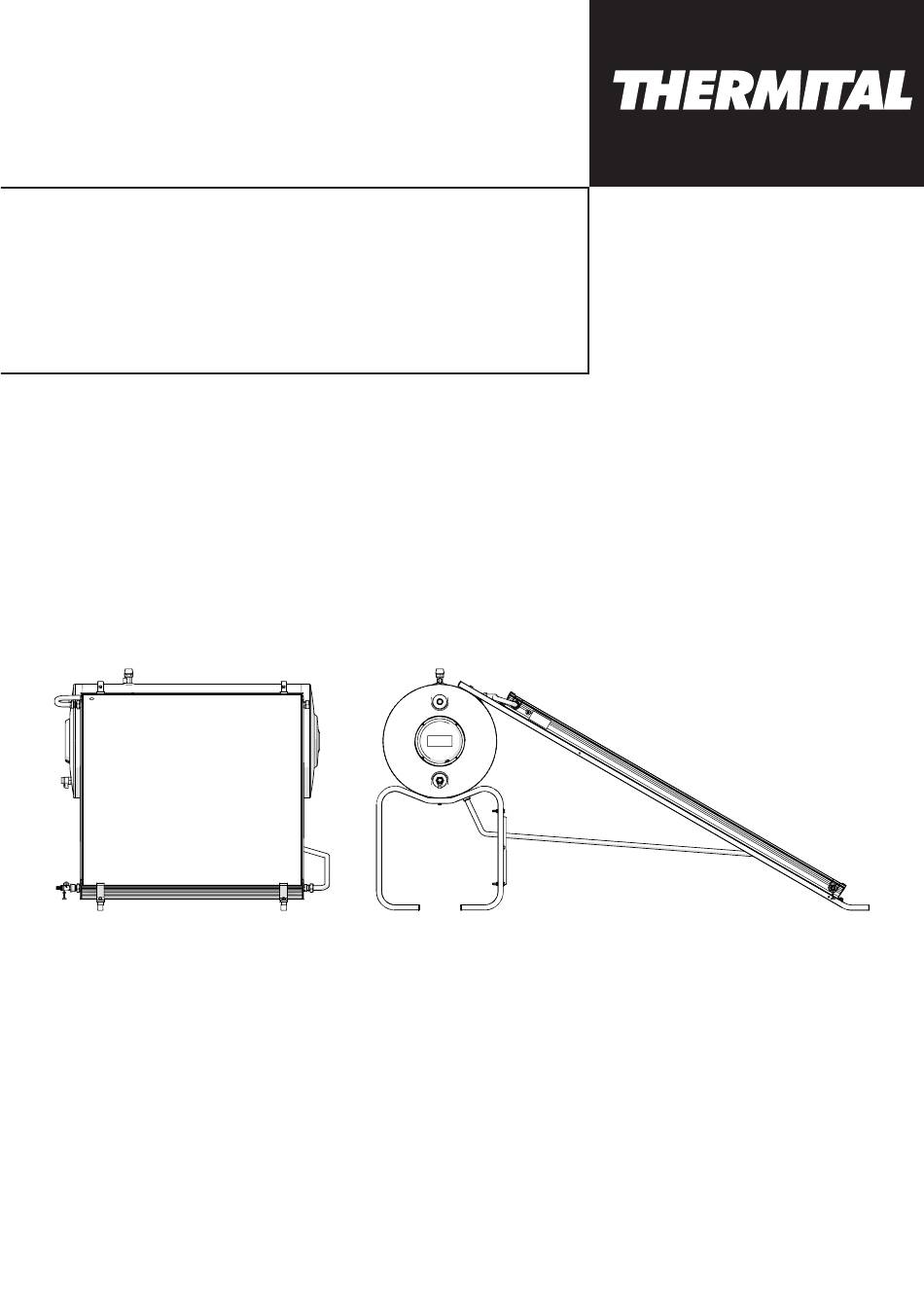

  • Page 1 INSTALLER, TECHNICAL ASSISTANCE CENTRE AND USER MANUAL TSOL CN S BLU 30° system...
  • Page 2 EN standard 12975. storage cylinders conform to DIN 4753-3 and UNI EN 12897 standards. RANGE MODEL CODE TSOL CN 150/1 S BLU 30° 20101335 TSOL CN 200/1 S BLU 30° 20101338 TSOL CN 220/2 S BLU 30°...

  • Page 3: Table Of Contents

    CONTENTS GENERAL General Safety Information......4 Precautions........4 Description of the system.

  • Page 4: General

    GENERAL GENERAL SAFETY INFORMATION Make sure that the water-glycol mix in the solar collector circuit is able to resist the minimum temperatures likely to occur in the place of installation. Check that the product is complete, undamaged The system can reach very high temperatures. Safety and as ordered as soon as you receive it.

  • Page 5: Description Of The System

    GENERAL DESCRIPTION OF THE SYSTEM The TSOL CN S BLU 30° system is a solar hot water heating system that functions on the principle of natural circulation. The heat transfer liquid therefore circulates by normal convection. The system comprises one or more solar collectors and a jacket type storage cylinder, located under the collector/s.

  • Page 6: System Layout

    GENERAL SYSTEM LAYOUT 9 (*) 30° Components External connections 1 Solar collector/s 7 Domestic cold water inlet - 3/4” 2 Storage cylinder 8 Domestic hot water outlet - 3/4” 3 Mounting frame 9 Domestic cold water inlet cock 10 Filling/drain cock Pipes and fittings 4 Collector outlet Safety devices...

  • Page 7: Overall Dimensions And Weights

    GENERAL TSOL CN S BLU 30° Description 150/1 200/1 220/2 300/2 300/3 Qnonsol M (***) 1109 1132 1007 1044 1023 kWh/a Qnonsol L (***) 2122 2124 1711 1723 1494 kWh/a Qnonsol XL (***) 3610 3600 2977 2970 2527 kWh/a Qnonsol XXL (***) 4753 4738 4022...

  • Page 8: Installer

    INSTALLER UNPACKING THE PRODUCT Contents of packing: - Solar collector/s - Storage cylinder - Box of accessories containing fittings and a container of glycol anti-freeze - Mounting kit for flat roofs (see the assembly section for details of kit contents). A plastic pouch containing: - Instruction manual - Bar code label...

  • Page 9: Handling

    INSTALLER HANDLING PREPARING FOR INSTALLATION Hold solar collectors at the points shown (A) to move them. Select the best possible orientation for the solar collectors Lift and move the storage cylinder in a horizontal position. (ideally facing south). Avoid positions that are shaded by Make sure that the slings and lifting gear used are suitable for plants, trees, buildings or hills, etc.

  • Page 10: Assembly

    INSTALLER ASSEMBLY Start installing the system by assembling the mounting frame for flat roofs. To do so, follow the instructions given below. INSTALLER ENGLISH...
  • Page 11 INSTALLER CONTENTS OF MOUNTING KIT TSOL CN S BLU 30° Description 150/1 200/1 220/2 300/2 300/3 Collector support bars Storage cylinder supports Cross bars Brackets Collector fixing bracket Tube join Square tubes Additional collector supports Bar props M8x40 screws M8x16 screws M8 washer Cross bracket Plugs...
  • Page 12 INSTALLER Steps valid for all models 150/1 - Mark the anchoring points 200/1 Check that the marks are square. TSOL CN S BLU 30° 150/1 200/1 220/2 300/2 300/3 1832 1832 1832 1832 1832 1160 1160 1160 1310 1310 1310 3216 220/2 300/2...
  • Page 13 INSTALLER - Assemble the base by fixing the cross bars (3) to the storage cylinder supports (2) - Fix the storage cylinder to its assembled base INSTALLER ENGLISH...
  • Page 14 INSTALLER - Turn the storage cylinder upright and fix the base to the roof - Fix the collector support bars (1) to the storage cylinder and to the roof INSTALLER ENGLISH...
  • Page 15 INSTALLER Steps valid for the following models: 150/1 - 200/1 - Loosely fit the bottom collector fixing brackets (5) - Engage the collector in the bottom fixing brackets (5) and lay it on the collector support bars (1) INSTALLER ENGLISH...
  • Page 16 INSTALLER - Tighten the bottom collector fixing brackets - Secure the collector with fixing brackets (5) at the top Engage the ridges on the clamp (D1) with the ridges on the frame of the collector (D2) INSTALLER ENGLISH...
  • Page 17 INSTALLER Steps valid for the following models: 220/2 - 300/2 - Fix the bar props (9) to the cross bars (3) and the storage cylinder supports (2) - Fit the cross brackets (13) to the bottom of the support bars (1) INSTALLER ENGLISH...
  • Page 18 INSTALLER - Slide the brackets (4) over the bottom square tube (7) - Secure the square tubes (7) to the cross brackets (13) INSTALLER ENGLISH...
  • Page 19 INSTALLER - Engage the collectors in the brackets (4) and lay them on the square tubes (7) - Fit the unions, complete with seals, to the collectors - Secure the collectors at the sides with collector fixing brackets (5) Engage the ridges on the clamp (D1) with the ridges on the frame of the collector (D2) INSTALLER ENGLISH...
  • Page 20 INSTALLER Steps valid for the following models: 300/3 - Fix the additional cross bars (3) and the bar props (9) using the two screws already in place - Fit the additional collector supports (8) to the cross bars INSTALLER ENGLISH...
  • Page 21 INSTALLER - Fit the cross brackets (13) to the support bars (1) and (8) INSTALLER ENGLISH...
  • Page 22 INSTALLER - Slide the brackets (4) over the bottom square tube (7) - Join up and fix the square tubes (7) using the tube join (6) - Secure the square tubes (7) to the cross brackets (13) INSTALLER ENGLISH...
  • Page 23 INSTALLER - Engage the collectors in the brackets (4) and lay them on the square tubes (7) - Fit the unions, complete with seals, to the collectors - Secure the collectors at the sides with collector fixing brackets (5) Engage the ridges on the clamp (D1) with the ridges on the frame of the collector (D2) INSTALLER ENGLISH...
  • Page 24 INSTALLER Steps valid for all models Complete the collector water connections: - flow pipes - return pipes - drain cock - Insert the plugs (14) into the ends of the storage - plug cylinder base tubes, collector support bars (1) and square tubes (7) The seals are located inside the collector's corner profiles.

  • Page 25: System Water Connections

    INSTALLER Make sure that you comply with all applicable lightning protection and building potential compensation legislation. On completion of assembly, make sure that the solar water heating system is perfectly stable, then remove the protective film from the storage cylinder. Apply the data plate (1) and the label to the storage cylinder.

  • Page 26: Preparing For Initial Startup

    INSTALLER All shut-off cocks and drain cocks must be easily accessible. Make sure that the end user fully understands how they function. Shut-off and drain cocks PREPARING FOR INITIAL STARTUP Proceed as follows to fill the primary and secondary circuits. - Fill the DHW tank.
  • Page 27 INSTALLER FILLING THE SOLAR COLLECTOR CIRCUIT Heat transfer liquid The anti-freeze supplied contains non-toxic, biodegradable Anti-freeze Temperature Density (20 °C) and environmentally friendly propylene glycol. Mix the -40 °C 1,048 kg/dm propylene glycol with water (preferably demineralised). -32 °C 1,045 kg/dm Establish the necessary concentration of propylene glycol using the table alongside on the basis of the temperatures -26 °C...

  • Page 28: Technical Assistance Centre

    TECHNICAL ASSISTANCE CENTRE INITIAL STARTUP Checks and preparations for initial start-up Fill the storage cylinder with (potable) water. Check the concentration of the anti-freeze. Fill the solar collector circuit. Uncover the solar collectors and clean them if necessary. Make sure that the domestic cold water inlet cock is open.
  • Page 29 TECHNICAL ASSISTANCE CENTRE Topping up or changing the heat transfer liquid For certain maintenance operations (such as replacing pipes or unions or changing the heat transfer liquid) the solar collector (primary) circuit may have to be drained. Proceed as follows: - Connect a hose to the hose union on the filling/drain cock (1).

  • Page 30: End User

    END USER END USER INSTRUCTIONS The TSOL CN S BLU 30° system is a solar hot water heating system that functions on the principle of natural circulation. The heat transfer liquid therefore circulates by normal convection. The system comprises one or more solar collectors and a jacket type storage cylinder, located above the collector/s. The system does not require any pumps or adjustments.

  • Page 31: Troubleshooting

    END USER TROUBLESHOOTING FAULT CAUSE SOLUTION Unusually high draw of DHW. - Check. Water leaks in the DHW distribution - Check. circuit. Collector glass covered in dust or - Clean. leaves. No or insufficient domestic hot water The level of heat transfer liquid in the production circuit has dropped as the result of leaks - Top up the circuit with water/glycol mix...
  • Page 32 RIELLO S.p.A. Via Ing. Pilade Riello, 7 37045 - Legnago (VR) www.thermital.it The manufacturer strives to continuously improve all products. Appearance, dimensions, technical specifications, standard equipment and accessories are therefore liable to modification without notice.
