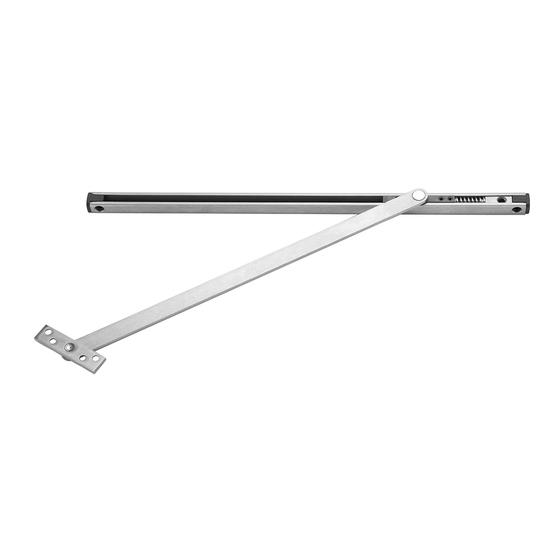

OH1000 Series Surface Mounted Door Stops and Holders

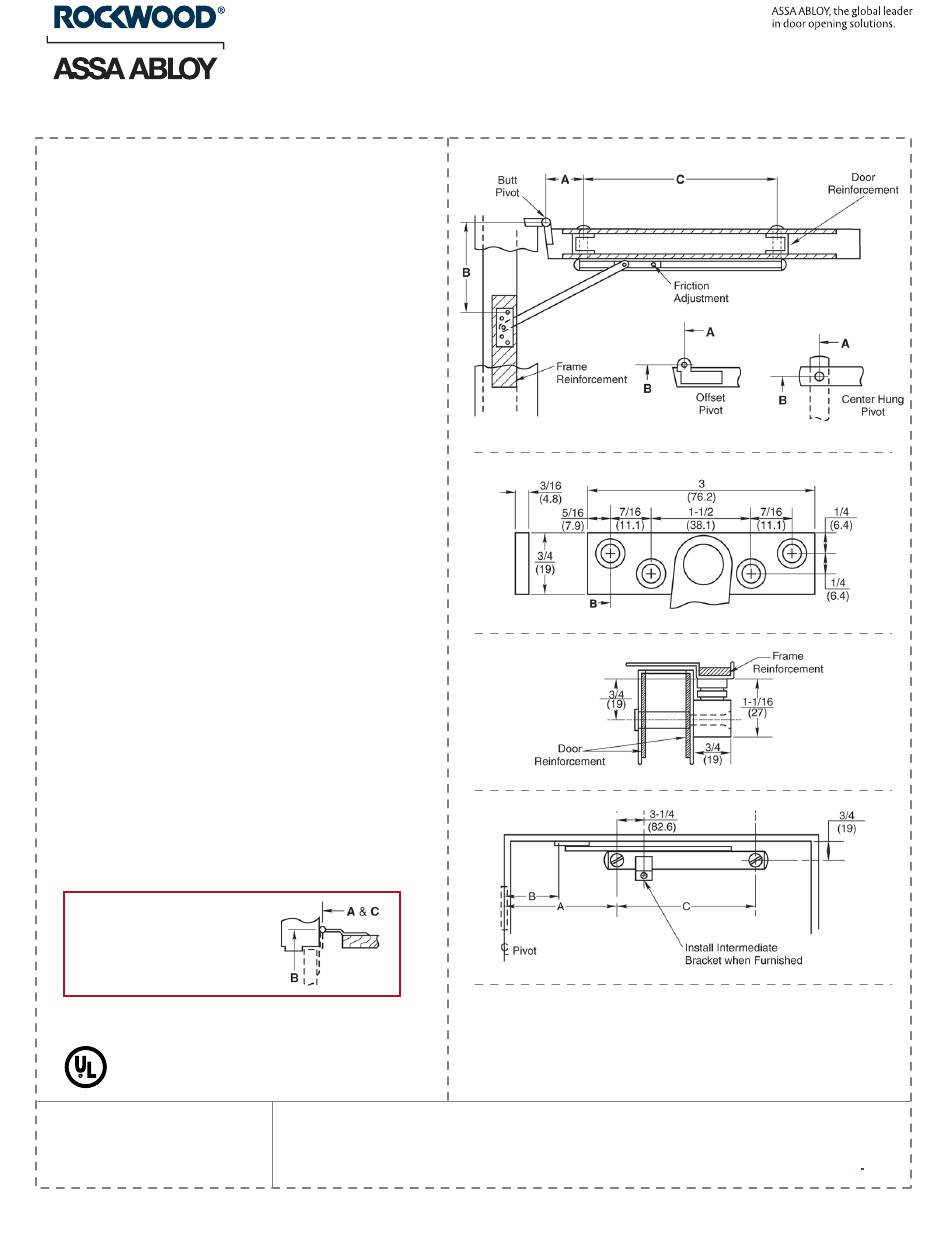

INSTALLATION INSTRUCTIONS
1. Select proper dimensions from chart on back side
of page.
2. Locate "A" and "B" dimensions on door and frame.
3. Install jamb bracket on stop strip as shown.
4. Position channel on door with shock end located
towards pivot. Drill 5/16 (7.9) dia. sex bolt hole, "A"
dimension, 3/4 (19) down from stop strip as shown.
5. Install channel on door with "A" dimension sex bolt.
Locate "C" dimension sex bolt hole making sure
that channel is horizontal and parallel with stop
strip. Drill 5/16 (7.9) dia. sex bolt hole and finish
installing holder.
NOTES:
• All hollow metal frames should be properly
reinforced with 3/16" (4.8) min. thickness x 12"
(304.8) min. length reinforcement plates.
• All hollow metal doors should be properly
reinforced.
• All drilling and tapping to be done by field men.
• Suggest mounting door stop or holder first and then
other hardware to clear. Contact factory if
interference results with other hardware.
• Jamb bracket to be on same centerline as channel.
• Intermediate bracket #12 x 3/4" FS MS.
• All dimensions are given in inches (mm).
CAUTION: Note location
of swing clear hinge
centerline to determine
"A" and "B" dimensions.
Not To Scale
Template No.
T-OH1000
Rev. 04/24/12
300 Main Street • Rockwood, PA 15557 • P: 800-458-2424 • F: 800-922-9212 • Website: www.rockwoodmfg.com
FASTENERS:
Jamb: #12 x 1-1/2" FH WS or #12-24 x 1/2" FH MS (4 Places)
Door: #12-24 x 1-1/2" FH MS and 5/16" Dia. Sex Bolt (2 Places)
NOTE: Rockwood reserves the right to make product changes and is not
responsible for obsolete template errors. To ensure your template is current,
please visit our website at www.rockwoodmfg.com or call us at 800-458-2424.
©04.12 RMC
Rev. A
