Accufire IR300 User Manual

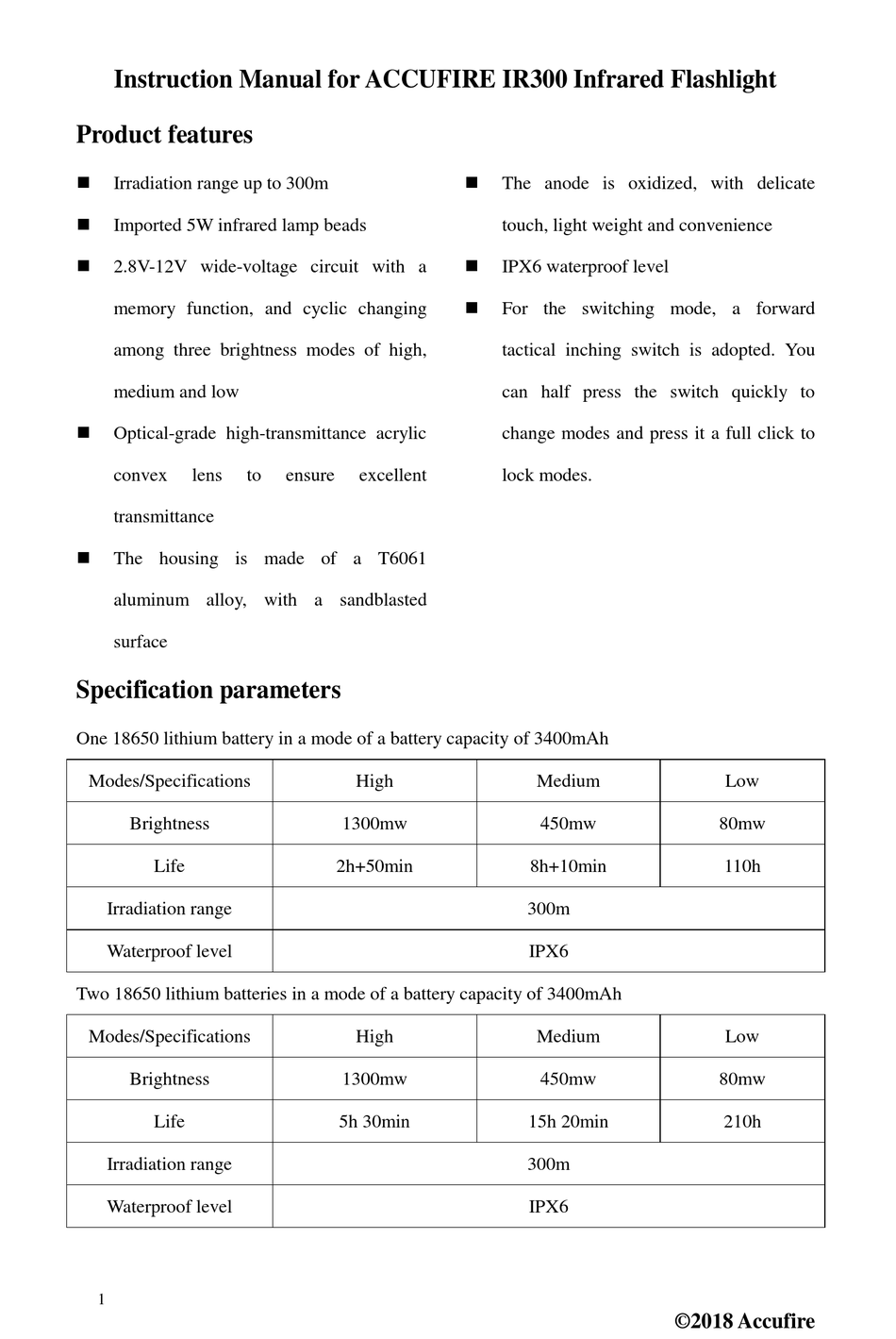

Instruction Manual for ACCUFIRE IR300 Infrared Flashlight
Product features
◼
Irradiation range up to 300m
◼
Imported 5W infrared lamp beads
◼
2.8V-12V wide-voltage circuit with a
memory function, and cyclic changing
among three brightness modes of high,
medium and low
◼
Optical-grade high-transmittance acrylic
convex lens
transmittance
◼
The housing is made of a T6061
aluminum alloy, with a sandblasted
surface
Specification parameters
One 18650 lithium battery in a mode of a battery capacity of 3400mAh
Modes/Specifications
Brightness
Life
Irradiation range
Waterproof level
Two 18650 lithium batteries in a mode of a battery capacity of 3400mAh
Modes/Specifications
Brightness
Life
Irradiation range
Waterproof level
1
to ensure excellent
High
1300mw
2h+50min
High
1300mw
5h 30min
◼
The anode is oxidized, with delicate
touch, light weight and convenience
◼
IPX6 waterproof level
◼
For the switching mode, a forward
tactical inching switch is adopted. You
can half press the switch quickly to
change modes and press it a full click to
lock modes.
Medium
450mw
8h+10min
300m
IPX6
Medium
450mw
15h 20min
300m
IPX6
Low
80mw
110h
Low
80mw
210h
©2018 Accufire
