Batribike 50930 User Manual

Display option; mini lcd; centre lcd; led display
Hide thumbs

Advertisement

Quick Links

UPGRADES
Mini LCD
LED Display
batribike.com
50707-2
50713
ELECTRIC BICYCLES
Display
Options
Centre LCD
Hand Built in Europe
50930
50935

Advertisement

loading
Need help?

Need help?

Do you have a question about the 50930 and is the answer not in the manual?

Questions and answers

Related Manuals for Batribike 50930

Summary of Contents for Batribike 50930

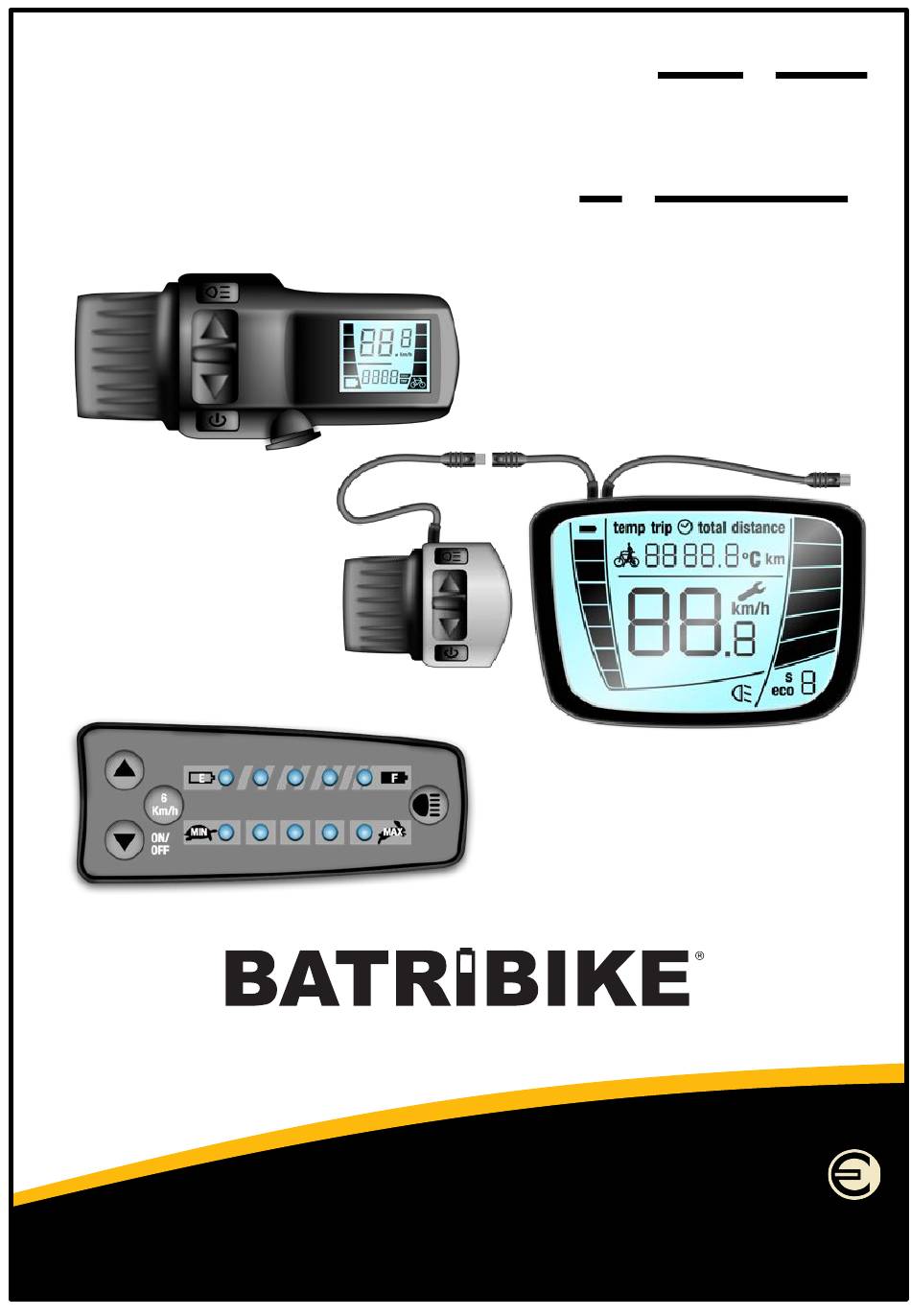

  • Page 1 Display UPGRADES Options 50707-2 50930 50935 Mini LCD LED Display Centre LCD 50713 ELECTRIC BICYCLES Hand Built in Europe batribike.com...
  • Page 2 DISPLAY TYPE:- MINI LCD CENTRE BICYCLE SERIAL № :- FITTED and TESTED BY:- FITMENT DATE:- MONTH YEAR IMPORTANT PLEASE READ THIS MANUAL FULLY BEFORE USE...

  • Page 3: Table Of Contents

    Thank you for purchasing a Display Option for your BATRIBIKE Electric Bicycle This manual contains brief fitting notes intended for the Dealer and User Instructions for each display type. This manual should be left with the User after fitting. Contents Parts Identification ..........

  • Page 4: Parts Identification

    Please ensure you select the correct size bracket if fitting a Centre Display 50713 LED Display Unit 50707-2 Mini LCD without Charging Socket (All models except PERDU) 50930 Centre LCD with Charging Socket (For PERDU) 50935 Centre LCD without Charging Socket (All models except PERDU) 50937...
  • Page 5 Mini LCD CONNECTS TO BIKE WIRING HARNESS FITTED AS STANDARD ON:- PERDU DELTA ONLY USED ON PERDU Centre LCD 50930 50935 PERDU STANDARD VERSION VERSION SWITCH UNIT CONNECTION CONNECTS TO BIKE WIRING HARNESS FITTED AS STANDARD ON:- ON REAR PERDU ONLY...

  • Page 6: Fitting Instructions

    Fitment of Display Upgrade These instructions are designed to be used by Authorised BATRIBIKE Dealers and competent personnel. It is important that you ensure that the existing display is operating correctly with no errors prior to fitting a display upgrade. Any errors or malfunctions must be rectified before following this procedure.
  • Page 7 8. Plug the new display cable into the wiring harness. 9. Test for correct operation. 10. Gently push the cable back into the frame aperture. 11. Refit plastic shroud ensuring the clip secures the shroud into the frame aperture. 12. Refit the cable cover/spiral wrap. 13.

  • Page 8: Operating Instructions

    User Instructions Your BATRIBIKE electric bicycle has a choice of display upgrade available. Refer to the following sections for Operating Instructions for each display type. LED Display See page 10 for operation. The operation of the LED system provides adjustable SPEED in five selectable steps.
  • Page 9 Mini LCD See page 14 for operation. The operation of the Mini LCD system has four selectable POWER levels. Level 1 gives 25% of the power, level 2 - 50% up to level 4, 100% power. Speed range is from 0 to 15 mph in all levels. This is available as an easy to fit upgrade.

  • Page 10: Led Option

    LED Operation Switching On To use under electric power, switch on at the battery if required, (bike model specific), then press and hold the DOWN button on the handlebar LED display until the blue lights are seen. Control Buttons By means of the three buttons, UP, DOWN and 6 Km/h, on the handlebar mounted display unit, the various functions of the power controller can be utilised.
  • Page 11 0 - 15% SOON AS POSSIBLE Bicycle Lights If your BATRIBIKE Electric Bicycle is supplied with lights on the front and rear, then these are switched on by pressing the LIGHT button on the handlebar display. To turn the lights off, again press the LIGHT button.
  • Page 12 Pedal Assistance RANGE VALUES QUOTED ASSUME THAT THE STANDARD SIZE BATTERY IS FITTED There are 5 levels of pedal assistance available from the motor. Using the UP and DOWN buttons you can select from Level 1 (Lowest), to Level 5 (Highest). The motor will then be activated upon pedalling.
  • Page 13 If the assistance level is set to ZERO, then the motor will not be turned on. Your BATRIBIKE will now act and feel like a normal bicycle. This is useful when you are feeling fit at the start of a journey or using your bike for exercise purposes.

  • Page 14: Mini Lcd Option

    Mini LCD Operation Switching On To use under electric power, switch on by pressing and holding the POWER button on the handlebar unit until the display lights. Control Buttons By means of the three buttons, UP, DOWN and MODE, on the handlebar mounted display unit, the various functions of the power controller can be utilised.
  • Page 15 15 - 30% Bicycle Lights If your BATRIBIKE Electric Bicycle is supplied with lights on the front and rear, then these are switched on by pressing and holding the LIGHT button. The LCD backlight will also dim when the lights are on so as not to be too bright at night.
  • Page 16 Pedal Assistance RANGE VALUES QUOTED ASSUME THAT THE STANDARD SIZE BATTERY IS FITTED There are 4 levels of pedal assistance available from the motor. Using the UP and DOWN buttons you can select from Level 1 (Lowest), to Level 4 (Highest). The motor will then be activated upon pedalling.
  • Page 17 No Assistance - Normal Pedal Bicycle If the assistance level is set to ZERO, then the motor will not be turned on. Your BATRIBIKE will now act and feel like a normal bicycle. This is useful when you are feeling fit at the start of a journey or using your bike for exercise purposes.
  • Page 18 CYCLE COMPUTER The BATRIBIKE mini LCD has useful Cycle Computer functions built in. Initial Display (SPEED and ODO) When first turned on the display shows the Speed in the top of the display, and the Total Distance (ODO) in the lower part.
  • Page 19 Resetting the Trip To reset the Trip Distance at the start of a journey simply press and hold the MODE button until the Trip display resets to zero. The Odometer distance displays the total distance travelled by the bicycle since leaving the factory and cannot be reset. Setting Distance Units (Miles or Km) The display can be changed to show distances and speeds in Miles or Kilometres.
  • Page 20 Setting Wheel Size (Circumference) When you change the display the tyre size will need to be set to suit the tyre circumference. This will ensure that the speed and distance readouts are as accurate as possible. TOGETHER Value needs to be set according to the chart opposite. Set first digit Set second digit Values can range from L150 to L250...
  • Page 21 Circumference Settings for BATRIBIKE Models with Standard Tyres fitted TYRE SIZE (Inches) MODEL VALUE STANDARD TYRE DESCRIPTION 26 x 2.10 ALPHA L204 Schwalbe 54-559 Smart Sam Sport 29 x 2.25 DELTA L230 Schwalbe 57-622 Rapid Rob 26 x 1.75 OMEGA...

  • Page 22: Centre Lcd Option

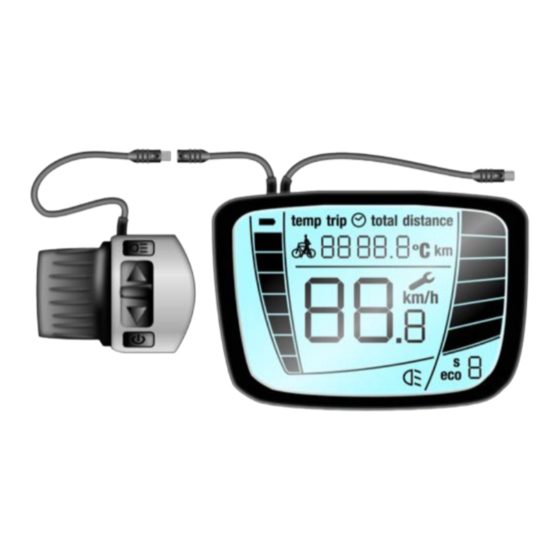

    Centre LCD Operation Switching On To use under electric power, switch on at the battery if required, (bike model specific), then press and hold the POWER button on the handlebar unit until the display lights. Control Buttons By means of the three buttons, UP, DOWN and MODE, on the handlebar mounted display unit, the various functions of the power controller can be utilised.
  • Page 23 SOON AS POSSIBLE Bicycle Lights If your BATRIBIKE Electric Bicycle is supplied with lights on the front and rear, then these are switched on by pressing and holding the LIGHT button. The LCD backlight will also dim when the lights are on so as not to be too bright at night.
  • Page 24 Pedal Assistance RANGE VALUES QUOTED ASSUME THAT THE STANDARD SIZE BATTERY IS FITTED There are 5 levels of pedal assistance available from the motor. Using the UP and DOWN buttons you can select from Level 1 (Lowest), to Level 5 (Highest). The motor will then be activated upon pedalling.
  • Page 25 No Assistance - Normal Pedal Bicycle If the assistance level is set to ZERO, then the motor will not be turned on. Your BATRIBIKE will now act and feel like a normal bicycle. This is useful when you are feeling fit at the start of a journey or using your bike for exercise purposes.
  • Page 26 CYCLE COMPUTER The BATRIBIKE Centre LCD has useful Cycle Computer functions built in. Initial Display (SPEED and TRIP DISTANCE) When first turned on the display briefly shows the current value of the Wheel Size Setting. (See page 29 for details).
  • Page 27 Trip Distance To change the display to show the Total Distance, simply press the MODE button. Repeat to return to the Trip Distance display. Resetting the Trip To reset the Trip Distance at the start of a journey simply press and hold the MODE button until the Trip display resets to zero.
  • Page 28 Setting Distance Units (Miles or Km) The display can be changed to show distances and speeds in Miles or Kilometres. To change simply press and hold the UP button for 10 seconds. Repeat to change the units back again. Setting Wheel Size (Circumference) When you change the display the tyre size will need to be set to suit the tyre circumference.
  • Page 29 To change the value, press the MODE button once more to set the first digit. Enter Setting Mode Value needs to be set according to the chart overleaf. Set first digit Set second digit Use UP and DOWN buttons to change value Set fourth digit Set third digit Confirm to return...
  • Page 30 Circumference Settings for BATRIBIKE Models with Standard Tyres fitted TYRE SIZE (Inches) MODEL VALUE STANDARD TYRE DESCRIPTION 26 x 2.10 ALPHA 2040 Schwalbe 54-559 Smart Sam Sport 29 x 2.25 DELTA 2300 Schwalbe 57-622 Rapid Rob 26 x 1.75 OMEGA...

  • Page 31: Troubleshooting

    TROUBLESHOOTING Diagnostic Error Messages All display types can also show diagnostic information in the event of a malfunction. LED style display If an error occurs the LED display will show a code by flashing the first battery light. Make a note of the number of flashes and turn off the bicycle power at both the LCD and the battery switch.
  • Page 32 Mini LCD style display If an error occurs the Mini LCD display will show a code as in the example shown. Make a note of the error number and turn off the bicycle power at both the LCD and the battery switch. After 2 minutes turn on the power again.
  • Page 33 Centre LCD style display If an error occurs the Centre LCD display will show a code as in the example shown. Make a note of the error number and turn off the bicycle power at both the LCD and the battery switch. After 2 minutes turn on the power again.

  • Page 34: Warranty

    WARRANTY CONDITIONS The following warranty conditions are in addition to your legal rights and apply to Display Options when FITTED BY AUTHORISED BATRIBIKE DEALERS only. Requirements for Warranty As the makers, we guarantee against possible material or construction defects. Provided the following conditions are satisfied : ●...
  • Page 35 In the event of a Warranty claim ● In the event of warranty repairs becoming necessary you should return your bicycle to your Authorised Batribike Dealer, (where you originally purchased your Batribike). ● Original defective parts that are sent to the manufacturer for assessment will be replaced by the same or equal value part.
  • Page 36 Batribike Limited Unit 4, Ingleby Grange Ingleby Lincoln BATRIBIKE are LN1 2PQ Members of the Phone: 01427 787774 Bicycle Association of Great Britain E-mail: support@batribike.com ----- UPGRADES - DISPLAY OPTIONS - ISSUE 2 - ©2018 Batribike Limited -----...
