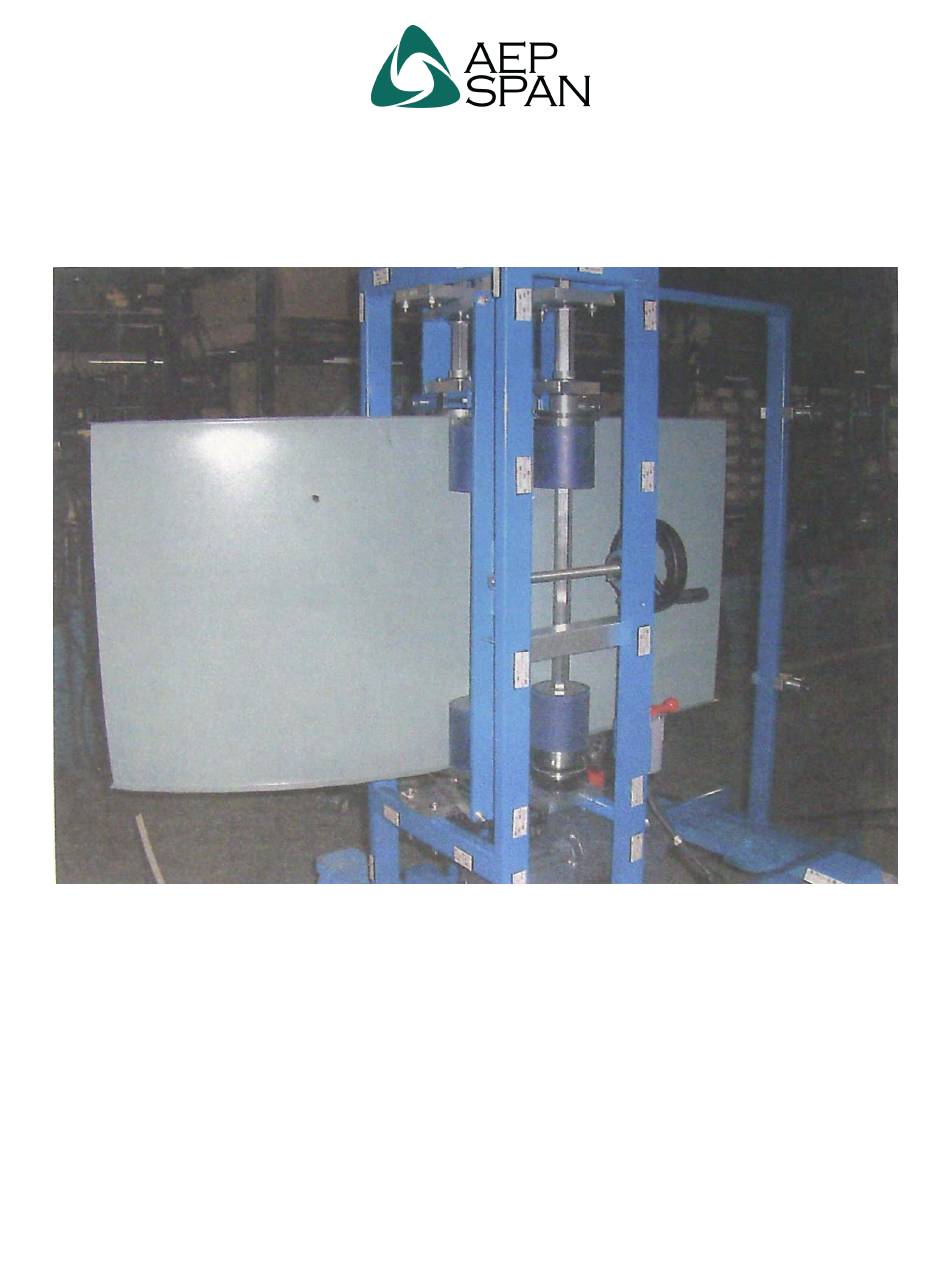

Select Seam® Curving Machine

Operating Instructions

®
The AEP Span Select Seam
Curving Machine is designed to curve both the roof
panels and the narrow batten caps. The amount of radius possible will vary with the
material type and material thickness. The user will not be able to obtain the same
minimum radius with different materials. The best results will be obtained by using the
referenced scale on the machine to develop a "log book" of radius sizes depending on
the type of material type and material
thickness.
SSM Curving Machine Operating Inst.
Page 1 of 6
Rev.12/14/11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Select Seam and is the answer not in the manual?

Questions and answers

Summary of Contents for AEP Span Select Seam

  • Page 1: Operating Instructions

    Select Seam® Curving Machine Operating Instructions ® The AEP Span Select Seam Curving Machine is designed to curve both the roof panels and the narrow batten caps. The amount of radius possible will vary with the material type and material thickness. The user will not be able to obtain the same minimum radius with different materials.
  • Page 2 It is also helpful to cut a ® slight angle on the leading edge of the Select Seam panels with a pair of snips. 2. Lower the top guide rolls to hold the material in place.
  • Page 3 Slide the panel up to the forming rolls. Then raise or lower the top rolls by turning the crank on the top of the unit until the corners of the panels match the slots in the forming rolls. It is very important that the width between the forming rolls matches the panel exactly.
  • Page 4 This setting helps to support the "floating rail" adjustment side ® of the Select Seam panels. Note: Remember to loosen the knob screws when adjusting the floating rail for different panel widths.
  • Page 5 BATTEN CAP CURVING 1. Set both the entrance rolls to the bottom set of scribe lines for the batten cap. Check to see the direction that the cap curving rolls are facing. Lay the cap on the side that matches the form of the curving rolls, and feed into the machine. Note: The jeweler saw blade should be on the inside of the batten caps.
  • Page 6 GENERAL MACHINE SPECIFICATIONS Product limitations (AEP Span): 22ga to 24ga steel (painted or bare) .032 aluminum 16 oz. copper ® Select Seam Pan widths: 12" to 21-1/4" Electric Gear Box Drive: 3/4 HP 110 volt, 1 Phase, 11.4 AMPS. GENERAL MAINTENANCE Hexagonal shafts must be kept cIean.
