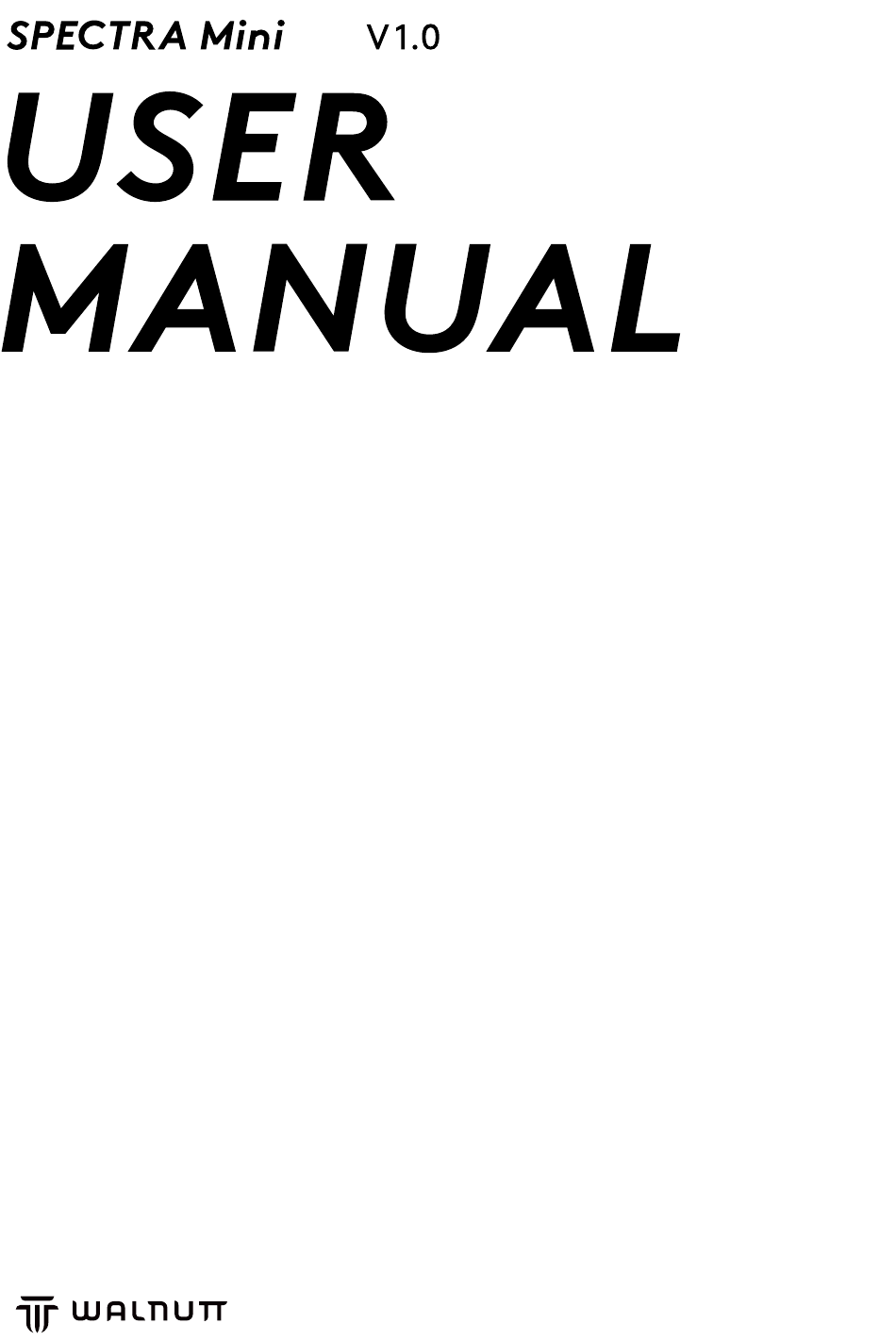

Walnutt SPECTRA Mini User Manual

Hide thumbs

page of 35

/ 35
Bookmarks

Quick Links

Download this manual

Need help?

Do you have a question about the SPECTRA Mini and is the answer not in the manual?

Questions and answers

Summary of Contents for Walnutt SPECTRA Mini

Page 3 Legends Read Before the First Ride Video Tutorials Download the eBoard Go App 6-Step Quick Start Introduction Feature Highlight SenDeck Start Mode Motion Control Brake Speed Mode Riding Status Indicator Magnetic Charge Device Home Discover Inbox Tutorial for Beginners Ride Environment Requirements Ride Limits Pre-ride Checklist Warnings...
Page 4 Storage and Transportation Travel Notice Maintenance and Upkeep Disposal Specifications Charger After-Sales Information Safety Certificates...
Page 5 If you have any questions or problems during the use or maintenance of this product, please contact WALNUTT or a WALNUTT authorized dealer or designated service provider. Please watch the tutorials videos at the link below, which demonstrate how to use SPECTRA Mini safely. www.walnuttech.co/product/SPECTRAMini/info#video Download and install the eBoard Go app before using the SPECTRA Mini.
Page 6 SenDeck. Then step on your rear foot. Remember to stand on those arrows. Straighten your body, try to maintain balance and keep the deck level. D-D- Lean slightly forward. SPECTRA Mini will gradually speed up. Lean your body backward to gently slow down until stop. ©...
Page 7 Lift your front heels to make faster deceleration. You can press your front heels to accelerate again. D-D-D-…… Jump off to the side of SPECTRA Mini to stop it immediately. The SPECTRA Mini brakes until stop. Do not jump off SPECTRA at high speed. Confirm the landing environment before jumping.
Page 9 The SPECTRA Mini is an extremely portable mobility device. With SPECTRA Mini, you are able to travel around and brake without any additional controller. By connecting the eBoard Go app, you can also interact, share and lock with your SPECTRA Mini.
Page 10 Press to switch on or off the Press to switch on or off the Headlight. SPECTRA Mini. Our battery module features high-capacity battery cells and an advanced power management system, satisfying various stringent safety standards. Walnut Technology Limited reserves the right to update this user manual.
Page 12 - You are supposed to check the sensor modules before using the SPECTRA Mini. Refer to the "Device" on Page 16 for more information. - The arrows on the surface mark the positions of sensor modules. Putting your toes or heels on the arrows will help to perceive your body postures.
Page 13 To start SPECTRA Mini, you can either stand still on it or pedal with it. The details of each start mode are found below. 1. Step on your front foot. Brakes. None 2. Step on your rear foot. Brakes. 3. Straighten your body, maintain...
Page 14 - The maximum uphill slope is 7°. The SPECTRA Mini may shut off the motors if exceeding such limit. The maximum downhill slope is 5°. Exceeding such limit may cause loss of control therefore should be avoided.
Page 15 Speed and acceleration limits are relaxed: Approx. 15km/h and 1.5 m/s - Use the eBoard Go app to change the speed mode of SPECTRA Mini. Refer to the "Device" on Page 16 for more information. - An interactive tutorial is provided in the Beginner Mode. Refer to the "Tutorial for...
Page 16 The LED Indicator and Alarm reflect the riding status of the SPECTRA Mini. The tables below contain more information about these indicators. In normal riding, the LED Indicator color reflects the battery level. — Solid Green ~ 20 — Solid Yellow —...
Page 17 3. Connect the Charger to an indoor power source (100-240V, 50/60Hz). 4. The Charger light indicates the charging status. Check the table below for details. 5. Unplug the Charger from the socket after full-charge, then disconnect from SPECTRA Mini. 6. Reattach the protective cover of the Charger.
Page 18 The SPECTRA Mini is fully charged. - Always turn off SPECTRA Mini before charging it. - FIRST attach the charger to SPECTRA Mini, then connect the charger to the socket. - Use only with the provided charger unless otherwise specified. WALNUTT does not take any responsibility for damage caused by third-party chargers.
Page 20 On the Device page, you can configure SPECTRA Mini and check its status. Connect your SPECTRA Mini via Bluetooth. Lock or unlock your SPECTRA Mini. Return to previous page. When abnormality occurs, tap the image to check the details. Displays battery level and estimated time to ride.
Page 21 On the Home page, you can browse and share your photos and videos with others. Find out the wonderful moments of your friends and discover the colorful sharing of SPECTRA Mini users all over the world. View all notifications, comments, or messages in the Inbox page. When you are using SPECTRA Mini for the first time, you will receive notifications in this page to enter the tutorial sections.
Page 22 View your own static information, such as total mileage and previous routes. You can also configure the app in the Me page. ©...
Page 24 It usually takes only 5 minutes to go through all the process and handle the ride skills. 1. DO NOT use SPECTRA Mini in severe weather conditions. These include wind speeds exceeding 10 m/s, snow, rain, smog, heavy wind, hail, lightning, tornadoes or hurricanes.
Page 25 All the SPECTRA Mini users should abide by all regulations set forth by government and other regulatory agencies. As regulations in different regions may vary, we strongly recommend that you timely consult with local traffic authorities and note the most updated information in our official website (www.walnuttech.co) to ensure the following features are fully updated:...
Page 26 NEVER store in environments outside the temperature range of -15 - 45 ℃ (5 - 113 ℉). 2. Discharge the SPECTRA Mini's battery level to 40% - 65% if it will not be used for 10 days or more. This can greatly extend the built-in battery life.
Page 27 2. NEVER store SPECTRA Mini or charger in environment with a temperature higher than 60 ℃ (140 ℉). 1. Check every part of the SPECTRA Mini after any crash or violent impact. If you have any problems or questions, please contact WALNUTT or a WALNUTT authorized dealer or designated service provider for further assistance.
Page 28 2. Dispose the SPECTA only after a complete discharge and turn off it. DO NOT disassemble the SPECTRA Mini. 3. If the power on/off button on the SPECTRA Mini is disabled and the built-in battery can not be fully discharged or turned off, please contact a professional battery disposal/recycling agent for further assistance.
Page 29 You can also use the eBoard Go app to interact with, configure and lock the SPECTRA Mini. We put your safety in the first place from design to manufacturing. Whether the SPECTRA Mini or its built-in battery has adopted rigorous testing and qualified for various safety certifications.
Page 30 The SPECTRA Mini could run up to 15 km/h, and is designed to travel as far as 9 km. Since the built- in battery and motor performance is subjected to environmental factors, the actual speed and range may vary.
Page 31 ©...
Page 32 ℉ UL File No. E350715 Manufacturer Shenzhen Fuyuandian Power Co., Ltd ** Use only with the charger provided here unless otherwise specified by the WALNUTT. Actual charging time may vary depending on ambient temperature, charging efficiency and other factors. ©...
Page 33 4. Warranty Service: www.walnuttech.co/service/warranty-service Your safety is our priority. Whether the SPECTRA Mini or its built-in battery has adopted rigorous testing and qualified for various safety certifications. The SPECTRA Mini's safety has been authenticated by testing in qualified laboratories, such as electrical testing, EMC testing, mechanical testing, radio equipment testing and environmental testing, etc.
Page 34 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
