Varvel RO series Working Instructions & Maintenance Manual page 9

RG

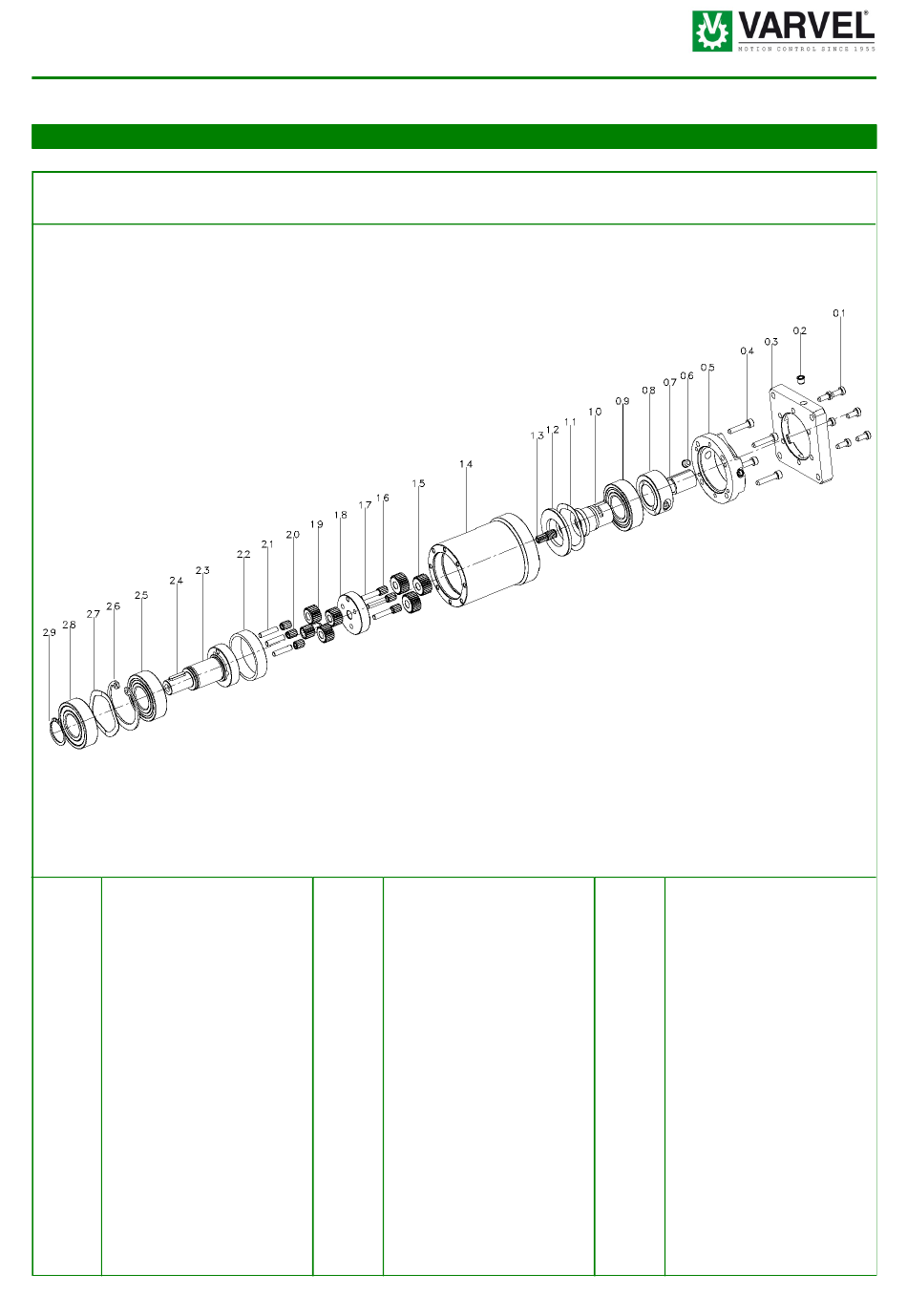

The layout shows the general structure of a two-stage reduced backlash planetary gearbox type FRG.
01 Screw
02 Plug
03 Motor flange
04 Screw
05 Input flange
06 Plug
07 Adapter
08 Clamp coupling
09 Bearing
10 Input shaft
11 Shim
12 Spacer
Working Instructions & Maintenance
13 Sun gear
14 Ring gear body
15 Planet gear
16 Needle bearing
17 Planet shaft
18 Planet carrier
19 Planet gear
20 Needle bearing
21 Planet shaft
22 Spacer
23 Planet carrier
24 Key
- -
9
Product Layout
Series RG - 2 stages
25 Bearing
26 Snap ring
27 Shim
28 Bearing
29 Snap ring
