Summary of Contents for Intech Instruments Ltd Z-2400-A2 Series

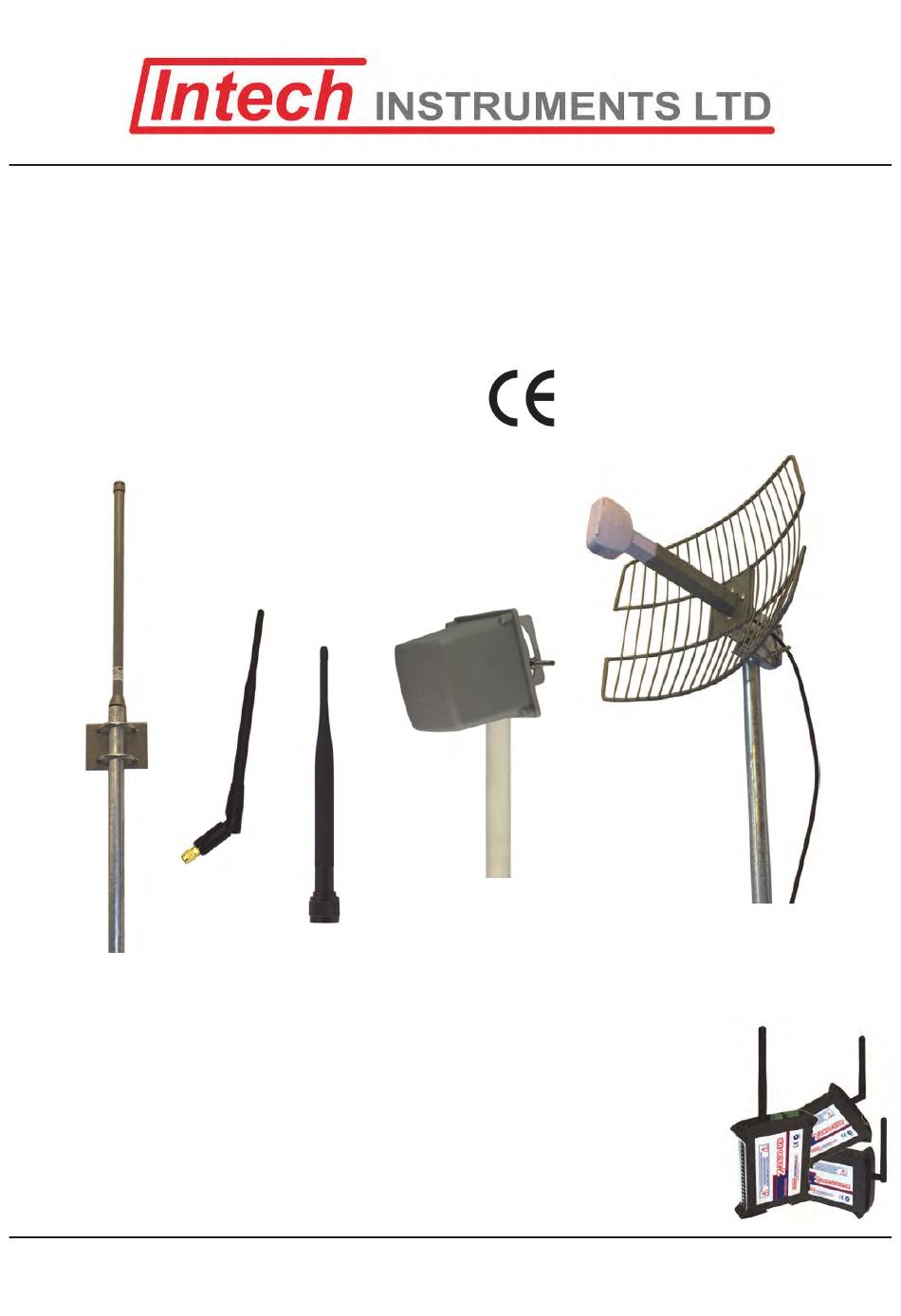

- Page 1 Intech Wireless Antennas for MicroScan Data and Discrete Analogue Connections RoHS Compliant Installation Guide.
-
Page 2: Table Of Contents
Wireless Antennas Installation Guide Index. Description. Page 3 Features. Page 3 Ordering Information. Page 3 10 Metre Coax Option. Page 3 2.4GHz 5.5dBi Rubber Duck Indoor Antenna. Page 3 2.4GHz 2.2dBi Omni Directional Whip Antenna. Page 4 2.4GHz 8dBi Omni Directional Monopole Antenna. Page 4 2.4GHz 12dBi Mini Directional Antenna. -
Page 3: Description
Directional and Omni Directional Antennas. Supplied as a Complete Kit. Easy to Install. Ordering Information. Z-2400-A2 Antennas: Z-2400-A2 Series Models: ZA-OD24-5 - 2.4GHz 5.5dBi Rubber Duck Indoor Antenna. Z-2400-A2O ZA-OD24-2 - 2.4GHz 2.2dBi Omni Directional Whip Antenna. Z-2400-A2I ... -
Page 4: Ghz 8Dbi Omni Directional Monopole Antenna
2.4GHz 2.2dBi Omni Directional Rubber Duck Antenna. The 2.4GHz 2.2dBi rubber duck antenna is designed for indoor or outdoor use. Because it’s omni directional, its great for short range Mesh topology and also point to point wireless networks. This antenna features an integral N-Male type connector that mounts directly to the supplied N-Female bulkhead and coax lead. -
Page 5: Ghz 12Dbi Mini Directional Antenna
2.4GHz 12dBi Mini Directional Antenna. This very compact panel antenna provides 12dBi gain with very broad coverage, suitable for both indoor and outdoor applications. Designed for all weather operation, this antenna features drain holes in the radome to help prevent moisture build-up inside the antenna. The mini directional antenna is supplied with a tilt and swivel mast mount kit. -
Page 6: Placement Considerations
Placement Considerations. Antennas are devices that focus energy in a particular direction similar to the way the megaphone focuses voice energy. Antennas can provide different radiation patterns depending on the design and application. How much the energy is focused in a given direction is referred to as Antenna Gain. Environment. -
Page 7: Getting The Most Out Of Your Wireless Network
Directional Antennas focus energy more in one direction. Here is an example of antenna gain versus vertical and horizontal beam widths (VBW & HBW) using Parabolic antennas: Gain 15dBi 17º 21º 19dBi 11º 17º 24dBi 8º 10º Getting the most out of your Wireless Network. Under ideal conditions, increasing the gain of an antenna at one end by 6dBi should double the distance the link will work over. -
Page 8: Intech Wireless Nodes, Bracket Kit And Enclosure
Weatherproof NEMA 4X Enclosure Supplied with Pole Mounting NEMA-4X-1 Brackets. 0.2 metre, short length coax extension lead with bulkhead fitting. To be used with the Z-2400-A2 series with RP-SMA connection. ZB-P-45 Ideal for mounting the supplied antenna on the outside of a cabinet. Indoor use only.
