CHANCE
Operating Instructions Model No. PSC4032915
For use with Capacitive Test Point through 765 kV AC
NOTICE: Before operating a Chance
Auto-Ranging Voltage Indicator (ARVI), thoroughly
read, understand and follow these instructions. Keep
these instructions with product for future reference.
Hubbell has a policy of continuous product improvement. Please visit hubbellpowersystems.com to confirm current design specifications.
Full Range Auto-Ranging
®
Voltage Indicator
Full Range
®
©2017 Hubbell Incorporated | hpsliterature@hubbell.com | hubbellpowersystems.com
Advertisement
Table of Contents
Summary of Contents for Hubbell CHANCE PSC4032915
- Page 1 Auto-Ranging Voltage Indicator (ARVI), thoroughly read, understand and follow these instructions. Keep these instructions with product for future reference. Hubbell has a policy of continuous product improvement. Please visit hubbellpowersystems.com to confirm current design specifications. ©2017 Hubbell Incorporated | hpsliterature@hubbell.com | hubbellpowersystems.com...
- Page 2 A CAUTION refers to operating procedures, techniques, etc., that, if not followed carefully could RESULT IN DAMAGE TO EQUIPMENT or LOSS OF SERVICE to customers. NOTICE A NOTICE refers to information that is considered important but not hazard related. ©2017 Hubbell Incorporated | Chance Full Range ARVI Operating Instructions ®...
-
Page 3: Product Safety
Should additional information and details be desired or if situations arise which are not covered adequately for the user’s purpose, the specifics should be referred to Hubbell Power Systems. ©2017 Hubbell Incorporated | Chance Full Range ARVI Operating Instructions ®... - Page 4 To avoid such field distortions, keep the unit as far away as practical from all system components other than the specific conductor being tested. ©2017 Hubbell Incorporated | Chance Full Range ARVI Operating Instructions ®...
-
Page 5: Front Panel Information

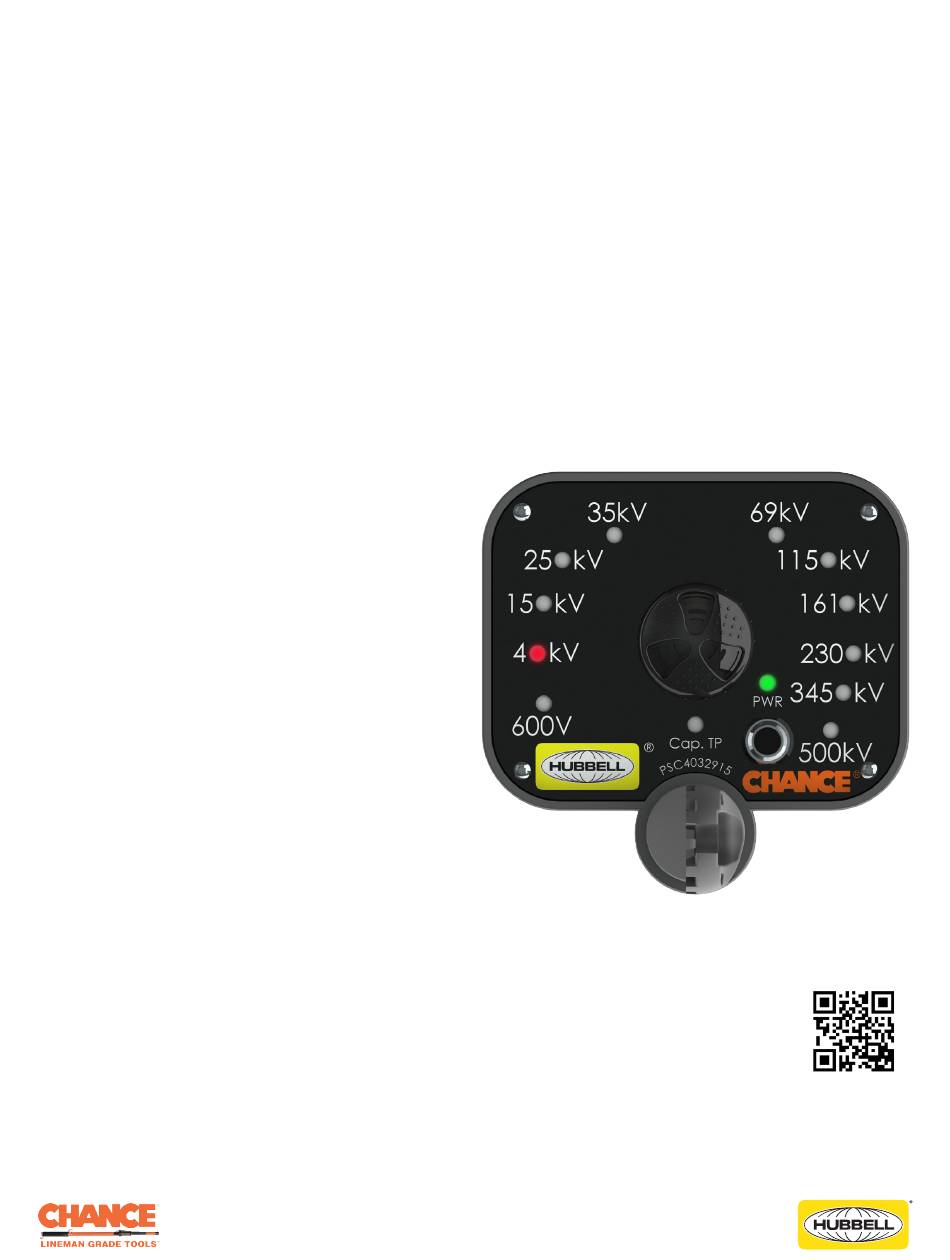

230 kV 200 kV to 299 kV 345 kV 300 kV to 399 kV 500 kV 400 kV to 699 kV 765 kV 700 kV and above: all LEDs illuminate ©2017 Hubbell Incorporated | Chance Full Range ARVI Operating Instructions ®... - Page 6 The adjustable audible alarm will generate two series of three tones each. The unit will turn off after the second series of tones. b. Or the unit will automatically power itself down (auto-off) after approximately 15 minutes of inactivity. ©2017 Hubbell Incorporated | Chance Full Range ARVI Operating Instructions ®...
- Page 7 Activity effects can exist between all conductor pairs. The Full-Range ARVI indicates the combined field intensity from all other conductors, including ground wires. ©2017 Hubbell Incorporated | Chance Full Range ARVI Operating Instructions ®...
- Page 8 WARNING Before and after each use, always test the unit on a known energized voltage source or with the Voltage Indicator Tester to verify proper operation. ©2017 Hubbell Incorporated | Chance Full Range ARVI Operating Instructions ®...
- Page 9 The adjustable audible alarm will generate two series of three tones each. The unit will turn off after the second series of tones. b. Or the unit will automatically power itself down (auto-off) after approximately 15 minutes of inactivity. ©2017 Hubbell Incorporated | Chance Full Range ARVI Operating Instructions ®...
- Page 10 For safety reasons, use other approved safe procedures, such as direct contact, to determine if the Cable is de-energized. ©2017 Hubbell Incorporated | Chance Full Range ARVI Operating Instructions ®...
- Page 11 3. Minimum Approach Distances (MAD) should be adhered to at all times. WARNING Failure to use proper safety equipment, procedures, and work rules could result in personal injury or damage to equipment. ©2017 Hubbell Incorporated | Chance Full Range ARVI Operating Instructions ®...
- Page 12 In the Hold Mode, the unit is waiting for a steady (consistent) voltage reading before holding a reading. Loss of contact with the conductor during the Hold Mode will cause a delay in capturing the reading. ©2017 Hubbell Incorporated | Chance Full Range ARVI Operating Instructions ®...
-
Page 13: Battery Replacement
After the battery drawer and screws are replaced in the housing, test the function of the unit on a known energized voltage source or with the Voltage Indicator Tester to verify proper operation. ©2017 Hubbell Incorporated | Chance Full Range ARVI Operating Instructions... -
Page 14: Maintenance
See page 18 "Specifications" for operating and storage temperatures and humidity ranges. CAUTION Do not drop tool as accuracy may be impaired. Repairs For Hubbell Power Systems authorized repair or factory calibration, please contact: M.W. Bevins Co. 9903 E. 54th St. Tulsa, OK 74146 (918) 627-1273 (918) 627-1294 (FAX) www.bevinsco.com... -
Page 15: Optional Accessories
Optional Accessories Indicator Tester - PSC4033582 15 kV Bushing Adapter - T4030428 15 kV, 25 kV, 35 kV Bushing Adapter - T4030857 Elbow Adapter - T4030856 ©2017 Hubbell Incorporated | Chance Full Range ARVI Operating Instructions ®... -
Page 16: Specifications
Sticks even when wearing rubber gloves. To verify proper operation, always test the unit on a known energized voltage source or with the Voltage Indicator Tester to verify proper operation. ©2017 Hubbell Incorporated | Chance Full Range ARVI Operating Instructions... - Page 17 Notes ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ©2017 Hubbell Incorporated | Chance Full Range ARVI Operating Instructions ®...
- Page 18 Hubbell Power Systems, Inc. 210 N. Allen St Centralia, MO 65240 www.hubbellpowersystems.com Hubbell has a policy of continuous product improvement. Please visit hubbellpowersystems.com to confirm current design specifications. PSP4033591 TD_09_114_E Rev A. ©2017 Hubbell Incorporated | hpsliterature@hubbell.com | hubbellpowersystems.com...
