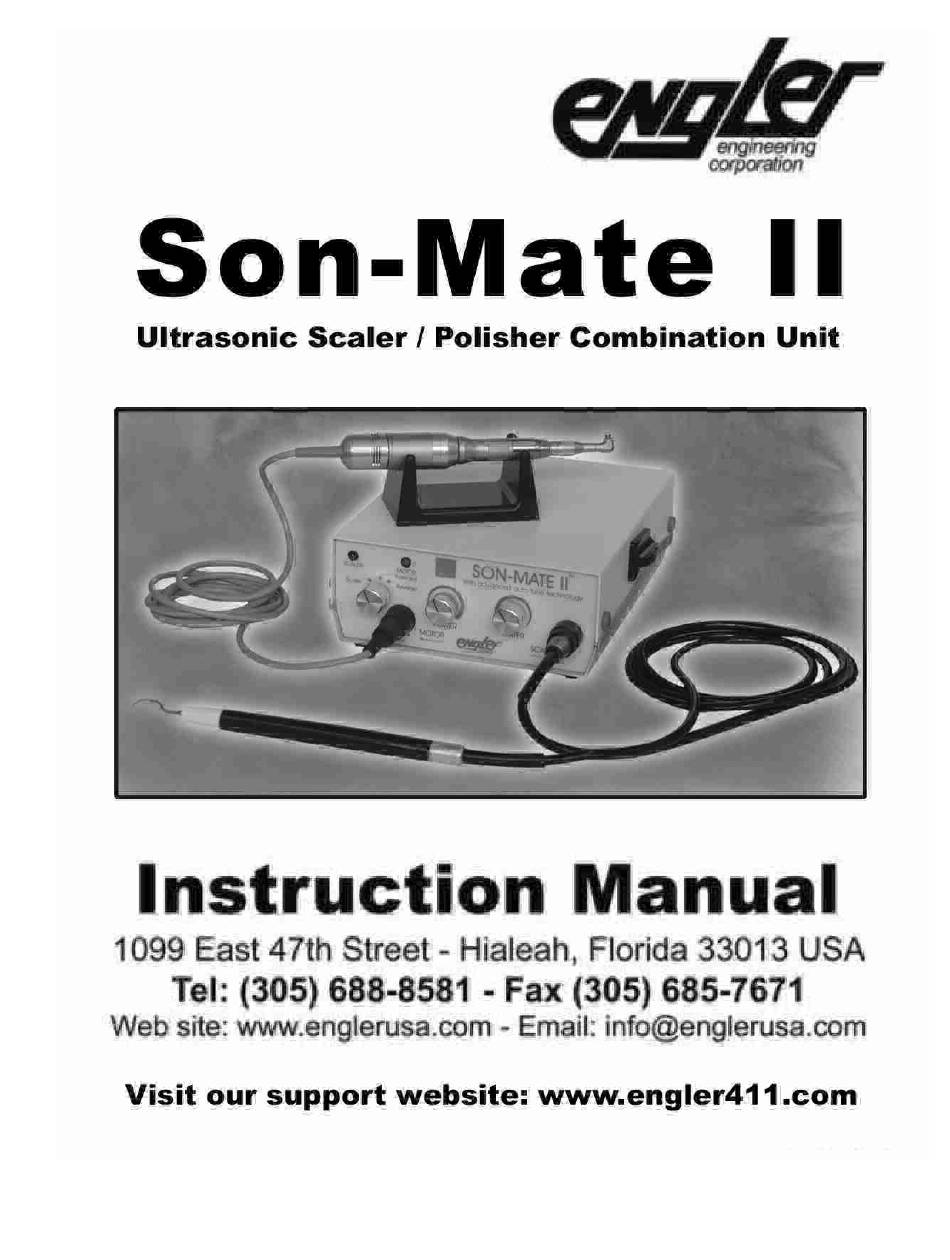

- Page 1 VER. A 09 / 24 / 2009 Page 1 of 31...
-
Page 2: Company Profile
Tri- Mate scaler / polisher / electro surge (for veterinary use only), and A.D.S. 2000 Anesthesia delivery system / Ventilator (for veterinary use only) We manufacture all of the inserts and tips used in the Engler products as well as many others on the market today in the 18K, 25K, and 30K frequency range. -
Page 3: Introduction
0.001 to 0.004 in. (25.4 um to 102 um). In designing our unique Engler tips, water flows internally through the tip as it vibrates. As the bubbles in the lavage are bactericidal, the energy released collapses and destroys the bacterial cell walls. The water flowing internally through the tip, effectively cools the area and assists in removing any debris from the operative site. -
Page 4: Table Of Contents
WATER FILTER CLEANING INSTRUCTIONS.................21 SADDLE VALVE ASSEMBLY ......................22 WATER TANK INSTRUCTIONS.......................25 CARE AND MAINTENANCE OF YOUR PORTABLE WATER TANK..........26 OPTIONAL SON-MATE II ACCESSORIES..................27 WARRANTY INFORMATION......................29 RETURN FOR EVALUATION / REPAIR FORM................30 SON-MATE II LOANER REQUEST FORM ................31 Page 4 of 31... -
Page 5: Technical Data
TECHNICAL DATA SCALER: Input Voltage: 100-250VAC (UNIVERSAL POWER SUPPY) Input Frequency: 50/60 Hz. Current (Amperes) 2.3 Amps Transducer Style: Magnetostrictive Operating Frequency: 17,500 -19,000 Hz. Ultrasonic Generator Data: Auto-Tuned Feedback Oscillator Variable pulse width Power Control Pulse width Modulation Output II. WATER: Input Pressure: 30 PSI (min.) 60 PSI (max) - Page 6 VII. DIMENSIONS: VIII. NET WEIGHT 3 Lbs. (1.36 Kg.) IX. CHASSIS DIMMESION: Length: 9 in. (23 cm) Width: 8 in. (20 cm) Height: 3.3 in. (8.4 cm) X. CABLE LENGTHS Handpiece 96 in. (244 cm) Footswitch 96 in. (244 cm) Power Cord 72 in.
-
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS Before installing or operating your new Son-Mate II, carefully read and follow all of the instructions. IMPORTANT: This device must be connected to a clean, filtered, water supply, capable of delivering 30 to 60 psi (2.0 to 4.2 kg/cm2) of water input pressure. This unit comes with an In-Line water filter (P/N: A52030). - Page 8 Female Quick Disconnect (P/N: 44300) - This is the female mating connector to the male quick disconnect supplied with the Son-Mate II . Use this to create a custom water installation. 44300 Female quick disconnect 2. Saddle Valve Assembly (P/N: A44303) - This kit contains all parts to quickly and easily connects your unit to an existing cold water supply line.
-
Page 9: Scaler Operating Instructions
DO NOT remove or bypass the ground pin from the power cord of this device. Doing so will void the warranty. IMPORTANT: Your Son-Mate II has been equipped with a universal switching power supply and will not require adjustments in this regard. - Page 10 digital readout will read 1. NOTE: The transducer (stack) has already been installed into the handpiece, please do not remove it at this time. 3. With only the transducer (stack) in the handpiece (no tip installed), set the water control to its maximum setting by rotating it counterclockwise, (knob will rotate up to 3 and a half turns for maximum water) hold the handpiece over a sink and depress the footswitch until water comes out in a stream.
- Page 11 ULTRASONIC SCALING PROCEDURES: 1. Before placing tip into patient’s mouth, activate the scaler over a sink by depressing the footswitch. A fine mist, with the temperature between cool to lukewarm to the touch is recommended. This should be accomplished with minimal power and proper water flow. 2.
-
Page 12: Scaler Maintenance
SCALER MAINTENANCE Instrument Tips: IMPORTANT: The scaling tips should be thoroughly cleaned and free of blood, tissue, or any other debris before sterilization. The scaling tips, nosecone and stack may be sterilized by Autoclave or Chemiclave, always following the manufacturer’s instructions and recommendations. Do not autoclave over 270 degrees F or more than twenty (20) minutes.. -
Page 13: Stack (Transducer) Installation / Removal Instructions
STACK (TRANSDUCER) INSTALLATION / REMOVAL INSTRUCTIONS You have purchased a precision instrument. Please handle gently - It is easily damaged TO REMOVE THE STACK: Unscrew the scaling tip by turning the plastic nosecone counterclockwise. Remove tip. b. Pull off plastic nosecone. Pull stack straight up. DO NOT USE PLIERS! If you have difficulty pulling up, insert the scaling tip and pull from tip. - Page 14 Page 14 of 31...
-
Page 15: Polisher Installation
Do Not rotate the selector switch on the front of the control box between Forward and Reverse rapidly. Always allow a second between the two selections. 7. As this is a precision instrument, always return it to Engler Engineering Corporation for repair. Page 15 of 31... -
Page 16: Polisher Operation
POLISHER OPERATION 1. Dampen the rubber cup and place a small amount of polishing paste on it. 2. Rotate the POWER control to the minimum setting in the Prophy Range. 3. Depress the footswitch and the rubber cup will begin to rotate. The speed of rotation may be adjusted to your desired level by readjusting the POWER control. -
Page 17: Straight Handpiece Maintenance
2. Never clean the handpiece with boiling water, chemical solutions, ultrasonic cleaner, or with wire brushes. Sterilization: 1. Autoclaving is recommended for the Engler Straight Handpiece. 2. Clean the Handpiece as described above. 3. Lubricate the Handpiece as described in the lubrication section of this manual. -
Page 18: Micromotor Maintenance
5. Autoclave the Handpiece for no longer than 20 minutes at 121 C (250 F), or 15 min. at 132 C (270 F). Keep the straight Handpiece away from water vapor or mist that may settle and cause premature damage to the bearings. IMPORTANT: If you experience problems during operation, call our repair department. -
Page 19: Scaler Troubleshooting
B. Tip clogged. Replace tip. C. Check and / or replace “O” ring and disc. D. Water restriction in unit: contact Engler Engineering Corporation repair department. E. If using Portable Water Bottle, pump up to pressurize the bottle. INTERMITTENT OPERATION: I. -
Page 20: Polisher Troubleshooting
II. “ON” LED indicator lights up polisher not functioning: Switch unit to Polisher mode. Micromotor not plugged in: plug micromotor in. Short in Micromotor or its cord: Contact Engler Engineering Corporation for instructions. HOT HANDPIECE: Handpiece not lubricated properly: Lubricate as shown on page 17. -
Page 21: Water Filter Cleaning Instructions
WATER FILTER CLEANING INSTRUCTIONS SHOULD BE DONE AT LEAST QUARTERLY 1. Turn off water supply to unit or disconnect the male from the female water connector 2. Unscrew filter by firmly holding Point “A” in your left hand and Point “B” in your right hand. (Refer to Figure) Next, unscrew by simultaneously rotating your left hand away from you and rotating your right hand toward you. -
Page 22: Saddle Valve Assembly
SADDLE VALVE ASSEMBLY Installation Instructions: 1. To assemble the saddle valve to existing water source: Place the saddle valve over and around your existing 3/8” copper tubing. Evenly tighten the securing screws so that the saddle valve is securely fastened onto the copper tubing. DO NOT OVERTIGHTEN, THIS MAY CAUSE THE COPPER TUBING TO CRIMP AND REDUCE FLOW. - Page 23 Page 23 of 31...
- Page 24 To Connect the Scaler to the Quick Disconnect: Push the male quick disconnect from the scaler into the female quick disconnect until they lock and installation is complete. Engler Engineering Corporation will not be held liable for any damage including, but not limited to leakage caused by improper installation of our products.
-
Page 25: Water Tank Instructions
This process should be repeated often depending on usage, or when pump starts to work harder. 4. Black particles found in water, the pump assembly is deteriorating. Order new pump assembly from Engler Engineering. Page 25 of 31... -
Page 26: Care And Maintenance Of Your Portable Water Tank
Pump assembly has been pre-lubricated...DO NOT TAKE THIS ASSEMBLY APART TO CLEAN INSIDE PUMP. WARNING: READ AND FOLLOW ALL INSTRUCTIONS. ALWAYS INSPECT your pump before each use. ALWAYS RELEASE AIR pressure before removing pump or servicing tank, by pulling pressure relief valve knob out fully. ALWAYS TIGHTEN CAP securely, a loose cap could be forcibly ejected &... -
Page 27: Optional Son-Mate Ii Accessories
C. Do not heat over 275 F (135 D. Use only Engler Care Free Prophy Rubber Cups. Other brands will not properly seal the angle, causing premature wear and voiding the warranty. E. Use 1 year and dispose of properly. - Page 28 If you have any questions or concerns, please contact us. ENGLER ENGINEERING CORP 800-445-8581 To co n t a c t us by inte r n e t pl e a s e us e: info@englerusa.com To help troubleshoot problems, download manuals and see our products, Visit us at: www.engler411.com...
-
Page 29: Warranty Information
/ purchaser for a period as specified below. The Son-Mate II control box is warranted for a period of six (6) years from date of purchase. The scaler handpiece is warranted for a period of two (2) years from date of purchase. -
Page 30: Return For Evaluation / Repair Form
Address all returns as follows: ENGLER ENGINEERING CORP. REPAIR DEPARTMENT 1099 EAST 47 STREET HIALEAH, FL 33013 If you have any questions or concerns, please call us. ENGLER ENGINEERING CORP 800-445-8581. Page 30 of 31... -
Page 31: Son-Mate Ii Loaner Request Form
A Credit Card is required – the information must be shown on the form below. 3. It is understood that if Engler Engineering does not receive your unit for repair within five (5) business days of you receiving the loaner, your credit card will automatically be charged $50.00 per week for rental of the loaner.
