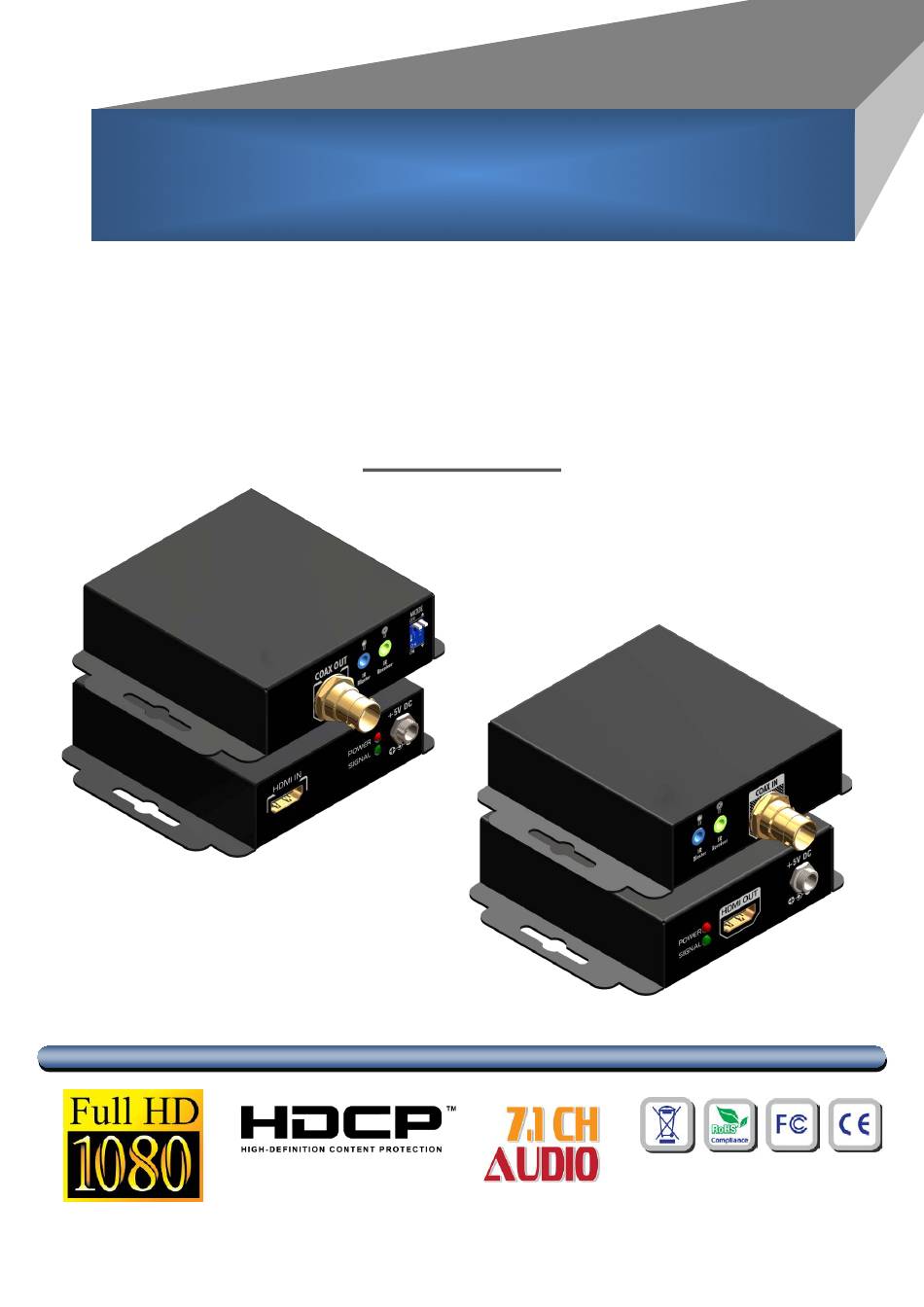

- Page 1 HDMI Extender over Single Coax with Bi-directional IR User Manual rev: 170224 Made in Taiwan...
-
Page 2: Table Of Contents
However, like all electronic equipments, the K5706 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
HDMI Extender over Single Coax with Bi-directional IR boosts up your HDMI transmission range up to 120m (394ft) in HDTV 1080p format through single coaxial cable. K5706 is easy to install and works perfectly with Belden 1694A coaxial cables. Other coaxial cables can also work with K5706 and the transmission distance depends upon the quality and bandwidth of coaxial cables. -
Page 4: Specifications
SPECIFICATIONS Model Name K5706 Technical K5706[Tx] K5706[Rx] Role of usage Transmitter [TX] Receiver [RX] HDMI compliance HDMI Deep Color HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support 480i / 720p / 1080i / 1080p60 (Does NOT support 480p) Audio support Surround sound (up to 7.1ch) or stereo digital audio... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS ► Transmitting unit K5706-TX Front Panel 1. COAX OUT: Connects to a high standard coaxial cable here 2. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster 3. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver 4. -
Page 6: Receiving Unit ► K5706-Rx
Receiving unit ► K5706-RX Front Panel 8. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster 9. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver 10. COAX IN: Connect to a high standard coaxial cable here Rear Panel 11. -
Page 7: Edid Learning
EDID LEARNING 1. Please make sure the Pin #1 - Pin #2 of DIP switch is at On-On [ - ]. 2. Connect the HDMI display to the HDMI port of TX. 3. Power on TX. 4. The green LED in the transmitting module will light up indicating the EDID learning procedure is complete. -
Page 8: Eye Pattern
EYE PATTERN... -
Page 9: Hdmi Pin Definition
TMDS Clock+ NOTICE Since K5706 is sensitive to the HDMI source’s input jitters, the input HDMI signals with larger jitters will shorten the transmission distance hugely, especially for full HD 1080p@60! 1. The lab testing result shows that Belden 1694A coaxial cables can transmit HDMI signals up to 120m (394ft). -
Page 10: Warranty
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the K5706 features and specifications is subject to change without further notice.
