Galaxy SED-MON-IT-860 User Manual

Ip camera tester. 7 inch touch screen multi-functional tester monitor (ip, cvbs, analog, built-in wifi)
Hide thumbs
Table of Contents

Advertisement

Quick Links

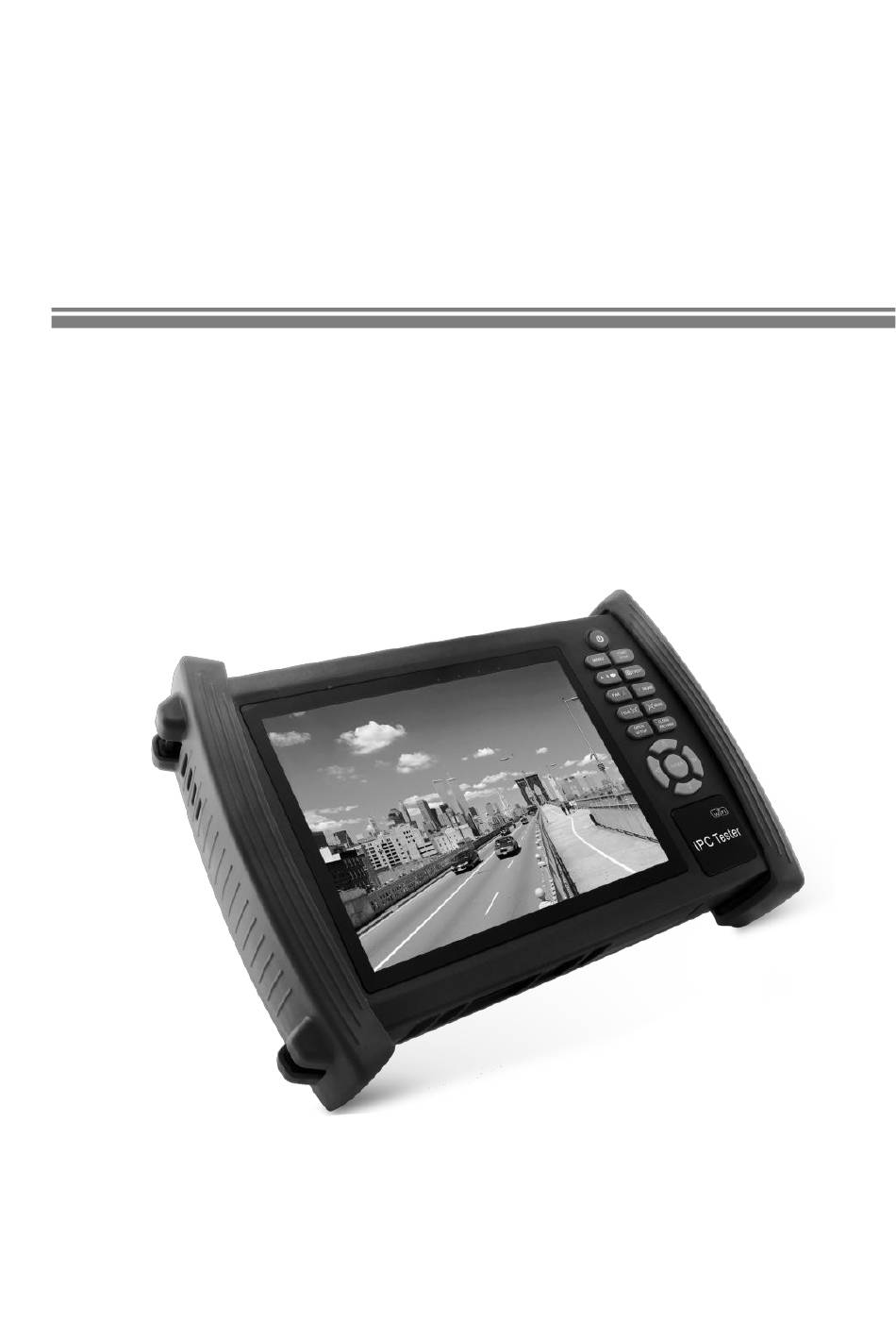

IP camera tester
USER MANUAL
（V01.00）

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SED-MON-IT-860 and is the answer not in the manual?

Questions and answers

Summary of Contents for Galaxy SED-MON-IT-860

  • Page 1 IP camera tester USER MANUAL （V01.00）...
  • Page 2 Thank you for purchasing the IP camera tester. Please read the manual before using the IP camera tester and use properly. For using the IP camera tester safely, please first read the「Safety Information」carefully in the manual. The manual should be kept well in case of reference. Keep the S/N label for after-sale service within warranty period.

  • Page 3: Table Of Contents

    Content 1 .Safety information ........................1 2. IP Camera Tester Introduction ......................2 2.1 General ............................2 2.2 Features............................3 2.3 Function .............................4 2.3.1 Touch screen and OSD menu ..................4 2.3.2 IP camera test ........................5 2.3.3 Analog camera test ......................5 2.3.4 Video level meter ......................5 2.3.5 PTZ controller .........................6 2.3.6 Enhanced Color bar generator ..................6 2.3.7 DC12V 2A/DC 5V 2A output power ................7...
  • Page 4 2.3.23 LED lamp ........................9 2.3.24 TDR cable open circuit and short circuit measurement (Optional) ........9 2.3.25 WIFI ..........................10 2.3.26 SDI camera test （*optional） ...................10 2.3.27 PoE power supply .......................10 2.3.28 HDMI signal output ....................10 2.3.29 Network bandwidth testing ..................10 2.3.30 Cable Tracer ......................10 2.3.31 Screen display rotates in 180 angle................10 2.3.32 FTP Server ........................11 2.4 Packing list ..........................11...
  • Page 5 3.3.12 Optical power meter （Optional ） ................47 3.3.13 Visual Fault Locator（optional） ................49 3.3.14 Digital Multi-meter （optional ） ................50 3.3.15 Video Player ........................58 3.3.16 Music player ........................59 3.3.17 LED lamp (Flashlight)....................60 3.3.18 PoE Voltage test ......................61 3.3.19 TDR cable test （optional） ...................61 3.3.20 Calculator ........................64 3.3.21 Browser ........................64 3.3.22 IP camera viewer ......................65...

  • Page 6: Safety Information

    1 .Safety information ◆ The tester is intended to use in compliance with the local rules of the electrical usage and avoid to apply at the places which are inapplicable for the use of electrics such as hospital, gas station etc. ◆...

  • Page 7: Ip Camera Tester Introduction

    ◆Never connect the meter with any voltage source while the function switch is in the current, resistance, capacitance, diode, continuity, otherwise it will damage the meter. ◆Never perform capacitance measurements unless the capacitor to be measured has been discharged fully. ◆Never measure any of resistance, capacitance, diode or continuity measurements on live circuits.

  • Page 8: Features

    2.2 Features  7 inch 800× 600 touch screen, easy to operate  ONVIF IP camera test  Test some customized brands‘s H.264/MPEG4/MJPEG IP cameras, such as Dahua, HIKVISION,ACTI, etc. Customized service is available.  Built in Wi-Fi ,can receive image from wireless camera, as well as ONVIF and customized IP cameras.

  • Page 9: Function

    address is correct.  In digital IP surveillance applications, if IP camera‘s IP address is not clear or forgotten; the device cannot be used .IP address scan can quickly search the connected IP camera or other network device‘s IP address. ...

  • Page 10: Ip Camera Test

    2.3.2 IP camera test The device is designed with ONVIF test, IP camera test, browser functions etc. It can display the image from the ip camera and change the IP address etc. 7 inch 800× 600 screen display, allows the user to view the image at larger angle.

  • Page 11: Ptz Controller

    SYNC level: by testing the amplitude of the video sync pulse to verify if the video level is correct and the coaxial cable connectivity is good. For PAL format, the SYNC level is 300 ± 35mV For NTSC format, the SYNC level is 40 ± 5IRE If the level is too low, it will cause the image to fracture or scroll, but if the level is too high, it will lead to reduce the image‘s color levels and dynamic range.

  • Page 12: Dc12V 2A/Dc 5V 2A Output Power

    its BNC input to test on-site video transmission, such as video optical transmitter and receiver, video cables. The new function of sending the testing image can judge if the monitor receives the image well. The new color bar (red, green, blue, white, black) can test the monitor whether have white or black dot etc.

  • Page 13: Video Screenshot, Record And Playback

    2.3.12 Video screenshot, record and playback Capture the video image and save the current video frames as JPEG file, record and save the current video in the SD card, video image and record files are saved in the SD card. Storage file directory can be created according to the date.

  • Page 14: Poe Test

    2.3.19 PoE Test It can test the PoE voltage when the POE switch is supplying the POE power to IP camera. It can clearly display the power+ and power- on the Ethernet cable pins, each cable pin‘s voltage and the failure connection of cable pin series numbers.

  • Page 15: Wifi

    short-circuits location. It greatly improves working efficiency. 2.3.25 WIFI Built in WIFI, can receive the image from wireless camera (ONVIF and customized camera) or network data etc. 2.3.26 SDI camera test （*optional） SDI digital video surveillance testing, support 720p 60fps / 1080p 30fps / 1080i 60fps digital camera image test and video image zoom, record, snapshot, photo viewer and video playback .

  • Page 16: Ftp Server

    2.3.32 FTP Server Start the tester‘s Wifi or connect the tester‘s Lan port to network. After the tester is online, start its FTP Server, the PC can directly access files from the tester‘s SD card without the use of the SD card reader. It does not need to pull out the SD card or use the SD card reader.

  • Page 17: Function

    2.5 Function Page.12.
  • Page 18 Press more than 2 seconds, turn on or off the device ,short press to turn on or off the menu display Menu key 4xzoom the image display. OTDR start or stop. Video record Snapshot Far focus: Focus the image faraway Near focus: Focus the image nearby TELE: zoom in the image WIDE: zoom out the image...
  • Page 19 Top interface Bottom interface Multimeter interface (Optional) The charge indicator: it lights red while the battery is being charged. As the charging is complete, the indicator turns off automatically The RS485/RS232 data transmission indicator: it lights red while the data is being transmitted The data received indicator: it lights red while the data is being received The power indicator: it lights green while the tester is powered on by the adapter Visible red laser source emits Interface(Optional)

  • Page 20: Operation

    RS232 Interface: RS232 communication for the PTZ LED lamp TDR cable test interface HDMI output interface Micro SD card moveable，default 4G, support Micro SD card up to 16G. UTP cable port: UTP cable tester port/ Cable tracer port Audio output and earphone interface Audio input PSE power supply input interface PoE power supply output/Lan test interface,...

  • Page 21: Instrument Connection

    Notice: When the Charge Indicator turns off, the battery is approximately 90% charged. The charging time can be extended for about 1 hour and the charging time within 12 hours will not damage the battery. Notice ：Press the key several seconds to restore the default settings when the instrument works abnormally.

  • Page 22: Analog Camera Test

    Note：1)If the IP camera does not support external power supply, but only supports PoE power, then connect the IP camera to IPC tester‘s LAN port , the tester will supply PoE Power for IP camera. Before connecting, the PoE switch and tester must be disconnected. It means tester‘s PSE port cannot be connected to any network cable when its LAN port is supplying the PoE power to the IP camera.

  • Page 23: Osd Menu

    (1) The camera or dome video output is connected to CCTV Tester VIDEO IN，the image display on the tester . (2) CCTV Tester ―VIDEO OUT‖ interface connect to the Video input of monitor and optical video transmitter and receiver, the image display on the tester and monitor (3) Connect the camera or the speed dome RS485 controller cable to the tester RS485 interface ,(Note positive and negative connection of the cable).Support RS232 PTZ controller ,connect the RS232cable to RS232 interface of the tester...
  • Page 24 Click SD card, install or remove SD card . Press function icon seconds, tip: whether move this icon to APPS file, if some function not be often used, can move these function icons to APPS. Page.19.

  • Page 25: Video Monitor Test

    Click icon ―APPS‖ tool, to show all collected function icons, Click CLOSE, back to the tester‘s main menu. In APPS file, Select icon and press it for seconds, tip: whether move the file to the desktop? 3.3.1 Video monitor test Analog camera test and PTZ control, click icon to enter Page.20.
  • Page 26 Display the input video image, click the top menu bar icon to enter video level meter, (PEAK level, SYNC level, COLOR BURST measurement) Select relative function on the right side Toolbar to operate , functions including ―Photos‖, ―Snapshot‖ , ―Record‖ , ―Playback‖ , ―PTZ‖ , ―Set‖ , Click , or press to quit.
  • Page 27 A. Protocol Use the up and down arrow keys to move the yellow cursor to the ―protocol ‖, set corresponding Protocol and support more than thirty PTZ protocols. Such as Pelco-D、Samsung、Yaan、LiLin、 CSR600、Panasonic、Sony-EVI etc. B. Port Click and move, to ―port‖ Select the communication port for the PTZ camera controlling (RS232/485) C.
  • Page 28 PTZ Control： Press the key control the PTZ direction of rotation Press the key to switch on or turn off the aperture. Press the key , adjust the focus manually Press the key , manually adjust the zoom (2) Video and storage setting Click icon ―set‖，to enter and set analog video image brightness , contrast, color saturation, as well as the file storage way after snapshot and recording, support auto-storage and manual storage.
  • Page 29 (3) 4 x zoom image display and Video out to enter ―zoom‖，press it again to quit. when image input，press By two fingers move outward and inward on the touch screen to zoom in and out the image. When the image is enlarged, click left, right, upward and downward the image to view every detail. if not by touch screen to operate ,press the key to zoom out , press the key zoom in, press upward and downward key to move the image...
  • Page 30 if select manual storage ,appears dialog box ―Input Name‖ , user-defined the files name(by Chinese character, English letter , or digit ) to save in SD card, if select ―Auto-storage, tester auto stores the files after snapshot. (5) Video record Click icon ―Record‖, when video in, the tester starts to record, the red recording icon appear on the screen and begin to flash and count, if click the icon ―Record ―...
  • Page 31 Double-click the photo to make it full display. Double-click again the photo to return. Press the photo several seconds, rename or delete the files. Click to close and return to PTZ controller. (7) Record playback Click icon ―playback‖to enter Page.26.
  • Page 32 Double –click the files to play，Click on the top right icon to close and return to PTZ controller. In the video "Playback‖ interface, Press the recording for several seconds, rename or delete the files. Video files also can play in the main menu ―Video Player". (8) Video level meter Click the icon to enter, the IP camera tester has adopted hardware high-speed sampling and...
  • Page 33 SYNC level, COLOR BURST chroma level. When the video signal is input, the tester auto test and display the measurement on the left bottom corner of the screen. While in PAL format, the unit will be mV, While in NTSC format, it will be IRE. Video signal level 140±...

  • Page 34: Color-Bar Generator (Tv Out)

    Video signal PEAK level: For PAL format , the video signal level is 1000± 200mV For NTSC format, the video signal level is 140± 15IRE If the level is too low, it will cause the image to dim and reduce dynamic range, but if the level is too high, it will lead to virtual shadow and reduce the definition of the image .

  • Page 35: Onvif

    Click the selected color-bars, testing image or single bar ( red, green, blue, white or black). Double click to full display on the screen and output, click to return main menu. Application A. When maintaining the dome camera, the tester sends out the color bar by its BNC output to the monitor at the monitoring center.
  • Page 36 to enter ONVIF，the icon ―ONVIF‖ is LD mode ,the icon HD ONVIF is HD mode Click icon Click icon to enter, the tester Auto-Scan different network segments ONVIF cameras, and list the camera name and address on the screen left. Some cameras not need user name and password to login, please select ―Non- verification‖...
  • Page 37 Click the button ―Refresh‖, tester will scan the ONVIF camera again. Click the new displayed ONVIF camera below ―Device List―, the tester will show the IP camera relative information and setting. Input IP camera user name and password to login，click ONVIF camera below ―Device List― to operate( Device Set, Time Set, Maintenance, Network Set, User Set, Live Video, Video Streaming, Image Set,etc).Some functions can only operate with the IP camera authorization.
  • Page 38 Live Video: click ―Live Video‖ to enter, show the IP camera image. Double click on the image, image can be full displayed on the screen. Double click again to return. By two fingers move outward on the touch screen to zoom in the image. When the image is enlarged, click left, right, upward and downward the image to view every detail.
  • Page 39 Zoom in image :press the key to enter, press it again to quit. By two fingers move outward and inward on the touch screen to zoom in and out the image. When the image is enlarged, click left, right, upward and downward the image to view every detail. When the image is enlarged, if not operate on touch screen, it can operate by the keyboard ,press the to zoon in , press the key to zoom out ,press upward and downward key to move...
  • Page 40 Image setting: Click ―Image Set‖, adjust image brightness, saturation and contrast , etc. Network setting：Click ―Network Set ―to change the IP address. Some cameras cannot support change IP address, so there is no change after saving. Page.35.
  • Page 41 On the interface of ―Live Video‖, click ―Video Menu‖, appears toolbar: Snapshot, Record, Photo, Playback, PTZ, Set, etc. Snapshot：Click ―snapshot‖ to screenshot the image and store it to SD card. if select manual storage, appears dialog box ―Input Name‖ , user-defined the files name(by Chinese character, English letter ,or digit ) to save in SD card, if select ―Auto- storage‖，...
  • Page 42 in the SD card . If select manual storage , before recording begins, appears dialog box ―Input name‖ , user-defined the files name(by Chinese character, English letter, or digit ) to save in SD card, the tester will hereby store the files in SD card after recording is finished; if select ―Auto- storage, the tester will auto store the files in SD card after recording.

  • Page 43: Ip Camera Test

    Press the video files seconds to delete or rename. Video files can play in the Video player on the main menu. 3.3.4 IP camera test IP camera Tester supports HD and LD test two modes .When IP camera stream is MPEG4 , please select LD mode display , HD mode can not support MPEG4.
  • Page 44 resolution is 720P or higher 720P, the image display may be delayed.While in HD mode, if the network camera stream is H.264, the tester can fluently display the image up to 1080P. Click icon to enter IP camera test Display high-definition images, support snapshot, video record and playback. Currently, the IPC tester only support some brands‘...
  • Page 45 Local IP： it means tester‘s IP address, support Multi- network segments‘ IP cameras test , click ―Deploy ― to enter ―IP setting ― and set the tester ‗s IP address, can add IP address of the Different network segments, click ―set‖ to save , click icon to close it and return IPC test interface.

  • Page 46: Sdi Camera Test(*Optional)

    If IP address setting has error or IP camera is not connected.. The tester prompts ―Network Error‖ Click to quit from image display and return to IP camera test interface. Under the IPC Test , on the IP camera image display, there is ―Video Menu‖ icon, click ―Video Menu‖, appears toolbar: Snapshot, Record, Photo, Playback, PTZ, Set, etc.

  • Page 47: Ip Address Scan

    1920x1080I 60Hz When SDI tester detects the camera input image resolution is 1080p 60Hz or1080p 50Hz, the tester‘s screen will display ―Does not support playing 1920*1080p 60Hz". If no SDI camera image input, the tester‘s screen display ―NO video signal input!‖. IPC tester‘s HDMI output port can be use as SDI to HDMI converter, output HD SDI image to HD TV monitor.

  • Page 48: Ping Test

    3.3.7 PING Test Connect the cable to the LAN port, click icon to enter, set local IP, Remote Host IP, Packet Size, Packet time, Timeout etc, press ―Start ―to test. If IP camera or other network equipment is not connected to the tester, show sending and receiving packet ‗s quantity inconsistency，Error rate 100%， if connect well, to start Ping test ,if the tested device‘s IP address is correct, sending and receiving packet ‗s quantity consistency.

  • Page 49: Cable Test

    Application： PING testing is the most conventional network debugging tools. It is used for testing if the connected IP camera or other network equipment‘s Ethernet port is working normally and the IP address is correct. It‘s normal that the first data packet will be lost when test start. 3.3.8 Cable Test Click icon to enter...
  • Page 50 Turn on the cable scan; use the copper pin to search, the cable with loudest voice means it is connected with the tester. Four Audio types can choose. LED lamp is convenient to work in dark or at night. Press the button (+ - ) to adjust the volume, use two batteries (size AAA) Application...

  • Page 51: Port Finder

    Note：While the cable tracer tester is receiving the audio signal from the tester, it may be influenced by other signals and make some noise. 3.3.10 Port Finder Connect the cable to the tester ―LAN‖ port，click icon to enter. Click ―Start‖ to test, tester send signal to make the connected LAN port of switch flicker at special frequency.

  • Page 52: Data Monitor

    Application： The tester will send special signals to make the connected LAN port flicker at special frequency, which will enable the installers to easily and quickly find the connected Ethernet cable. This function can prevent mistakenly insertion or disconnection non-corresponding cable to artificially interrupt network connection.
  • Page 53 communication, cable television and CCTV security system. Note：Please keep the fiber connector and the dust cap be clean, and clean the detector with the special alcohol. Data hold While testing, click ―Hold‖ to data hold, the data will not change. It‘s convenient to read. Press again to quit.

  • Page 54: Visual Fault Locator（Optional

    Data hold and Relative measuring use together, the data is yellow while the function is effect. 3.3.13 Visual Fault Locator（optional） Click icon to enter VFL four status can select——―Steady mode‖, ―Evasive 1Hz‖,―Evasive 2Hz‖and―Time off‖. Click button ―Steady mode‖ to enter steady status, click button ―Evasive 1Hz‖ and ―Evasive 2Hz, to enter pulse mode, click button ―Time off‖, VFL is turned off.

  • Page 55: Digital Multi-Meter （Optional

    mins, 60 mins and 120 mins). Click‖ Steady mode‖, red laser source emits steady, click again to quit. Click icons ―Evasive 1Hz‖or―Evasive 2Hz‖to enter pulse mode, the red laser source is emitted by a certain frequency, press it again to quit （optional ）...
  • Page 56 Click icon to enter 1) SYMBOLS： U：DC Voltage Measuring A：DC Current Measuring Ω：Resistance Measuring ：Diode Testing ：AC Voltage Measuring ：AC Current Measuring ：Continuity Testing ：Capacitance Measuring AC/DC Voltage and current measurement state display Auto- range The Multimeter auto adjust the range by input signal or tested components Data hold Hold data Relative...
  • Page 57 2) OPERATING INSTRUCTION DC Voltage Measuring WARNING! You can‘t input the voltage which more than 660V DC, it‘s possible to show higher voltage, but it‘s may destroy the inner circuit. Pay attention not to get an electric shock when measuring high voltage. a.
  • Page 58 e．Manual range： 0.000V  6.600V range 00.00V  66.00V range 000.0V  660.0V range 000.0mV  660.0mV range C. DC Current Measuring (only manual range ) WARNING! Shut down the power of the tested circuit, and then connect the meter with the circuit for measurement.
  • Page 59  The maximum current of 10A socket is 10A, over-current will destroy the meter, and will damage the operator. D. AC Current Measuring (Only Manual range) WARNING! Shut down the power of the tested circuit, and then connect the meter with the circuit for measurement.
  • Page 60 E. Resistance Measuring WARNING! When measuring in-circuit resistance, be sure the circuit under test has all power removed and that all capacitors have discharged fully. Ω a. Connect the black test lead to the ―COM ‖ jack and the red test lead to the ―V/ ‖...
  • Page 61 G. Diode Testing WARNING! The capacitance of a capacitor should be tested separately, should not test in the installation of circuit. a. Connect the black test lead to the ―COM‖ jack and the red test Ω lead to the ―V/ ‖...
  • Page 62  66.00μF range 00.00uF  660.0μF range 000.0uF  0.000mF 6.600mF range  00.00mF 66.00mF range d. Before connect test leads across two sides of the capacitor under measurement, be sure that the capacitor has been discharged fully. Note: The capacitance of a capacitor should be tested separately, should not test in the installation of circuit.

  • Page 63: Video Player

    Data hold Click ―Hold data‖ to enter, the data be hold, the value is green. Press it again to quit. Relative value measurement Click ―Relative ―to enter ，the tester Auto-save the data, the displayed new measurement and relative value is red color. Press it again to quit The hold function and the relative value be combined use, the display value is yellow The meter protection ...

  • Page 64: Music Player

    Video file player, can browse image files, also supports play formats MP4, H. 264, MPEG4, MKV,etc ONVIF tool, IP camera Test and video monitoring test‘s video recording can play directly via video player. Video player auto-search the video files on SD card，click the display list to play directly，and click RETURN to quit Click the files for several seconds，delete or rename the files 3.3.16 Music player...

  • Page 65: Led Lamp (Flashlight)

    Only support MP3 format Audio files 3.3.17 LED lamp (Flashlight) It is convenient for the installation or maintenance in the evening or in the dark. Click icon enter Page.60.

  • Page 66: Poe Voltage Test

    While in flashlight interface, click the red button, to turn on the LED lamp. Press again to turn off. If not turn off the light but click icon to quit, the LED lamp is still on. Lighting model or Time setting can be selected. 3.3.18 PoE Voltage test Click icon to enter PoE voltage measurement...
  • Page 67 Connect Alligator clip cable to the TDR port, and the cable must connect well before testing, otherwise to enter, and click ―Start‖ to test it will influence the accuracy. Click Built-in BNC cable, network cable, RVV control cable, Telephone line and TVVB cable etc can test. 11 groups user-defined cable can be set.
  • Page 68 1.Select user-defined and click ―Calibration ―to enter test , click ―user-defined 1‖can define cable name，such as：AiPu BNC-5。 2. Click ―Cable‖ , ―Type‖ to select cable, and corresponding type, for example, if testing BNC cable, select ―BNC‖, if testing communiction cable 75-2, select SYV 75-2. Page.63.

  • Page 69: Calculator

    3.Click ―+‖or―-‖ to adjust wave speed ,while display length is the same with the actual Length ,click ―Save―to save calibration data . It can be used for the same cable testing next time. Application：TDR test is the use of pulse reflection method, to transmit pulse signal for tested cable, when cable is open circuit or short-circuit, reflected pulse is generated, the tester receives and deals with the reflected wave, measurement results displayed on the screen.

  • Page 70: Ip Camera Viewer

    The IP camera and IP tester must be in the same network segment so that the browser can login IP camera successfully，if they are not in the same segment after the IP camera‘s IP address is changed by or press ―RETRUN‖ to exit , click main menu ―SET ‖ to change and make the browser ,click tester and IP camera in the same segment，then can test IP camera .
  • Page 71 Click desktop icon several seconds, to uninstall this application Click icon ―update ― in the IPC viewer interface，to update Video Management Software. Page.66.

  • Page 72: Poe Power / Dc12V 2A And Dc 5V 2A Usb Power Output

    3.3.23 PoE power / DC12V 2A and DC 5V 2A USB power output When the tester is turned on, DC12V output power function Auto-turn on. 5V USB power output,adopts ultra-low power consumption design, when the tester is turned off , also can be used as a power bank ,to supply power for the external USB device , to choose ―on‖...

  • Page 73: Application Tools

    2. Don‘t output this DC12V/2A power to the DC12V/IN port of the IP camera tester to avoid destroy 3. The IPC tester power output is close to 2A, if the IP camera‘s power is over 2V, the tester will auto enter protection mode.
  • Page 74 Network test (Ethernet bandwidth test) Built in Ethernet bandwidth test tools, need two testers mutual –testing, one as a Server, the other as a Client，then test Network bandwidth, also can download test software on a computer ,combine with a tester to test . Note：...
  • Page 75 sends packet test。The two testers must be in the same network segment. a).Start the server：Click ―Start the server‖, the tester as Server, display its IP address b).Start send packet test：Input Server's IP address in the other tester , used as a Client, to send packet test ,click button ―start test‖...
  • Page 76 Tester as Client, tester‘s IP address is:192.168.0.230. The Server and the Client are at the same network segment, but with different IP address. Input Server‘s IP address 192.168.0.89 in the tester and click ―Start‖ to test network bandwidth. Or use tester as a Server, computer as test Client（select Client,input tester‘s IP address to test） Page.71.
  • Page 77 when use tester as Server，shows results： DHCP server： Start ―DHCP‖ Server, dynamic assign IP address for the IP camera, not need to set IP camera‘s static IP address before start the testing . Select ―Start‖ , set assigned addresses segment, click “save”to assign dynamic IP addresses. Click ―Refresh‖...
  • Page 78 Notepad： Notepad can be used to record the important testing results, click the key ―Save‖ to save the contents. Notepad can auto record the storage date and time. pls click to view the notepad , all saving contents display. Click each record bar to show the details.
  • Page 79 Link monitor ： Click icon to enter, check the new IP address whether has been occupied by other network device. Avoid the new address conflict with other network devices. Click ―Add‖ to display the testing IP addresses, can add multiple IP addresses. For different network segments‘...

  • Page 80: Apps Tools

    Application： Add an IP camera or other network device to the current network group, the new IP address must not be occupied, otherwise it will cause IP conflicts and stop the equipment normal working. Link monitor can check if the new setting IP address is occupied. 3.3.25 APPS Tools Click icon to enter...

  • Page 81: System Set

    3.3.26 System Set Click icon to enter Language：Simplified Chinese, Traditional Chinese, English and others Date/Time：Set the Date/time IP setting： Set the IP address, Subnet Mask, Default Gateway, DNS address Test multiple network segments‘IP, click ―Advance‖, to display IP setting interface, then click ―Add‖ to add new IP address as tester‘s address to test .
  • Page 82 WLAN：Turn on /off WIFI. After connecting WIFI, double click WIFI to check the connected IP address. Brightness：Set brightness、sleep time Volume：Set volume SD Card：Show SD Card Capacity, remove SD card FTP server：IP camera tester connect to network by WIFI or network port ,PC can read SD card files via network.

  • Page 83: Update

    Version information：Check version information for each application Screen display rotation：The LAN slot, PSE IN slot, UTP/SCAN slot etc, are on the downside of the IPC tester. Before upward the downside, screen display can be rotated in 180 angle by manual setting. This function is very convenient for the user to upward the downside to connect the LAN cable and do the testing.

  • Page 84: Audio Test

    If there are applications for updating, the applications will be displayed on the interface. Click the relevant applications to update to the latest version. 3.4 Audio test Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable. Support audio record and storage 3.5 HDMI output Built in HDMI output port, output recording files, media files and image to HD TV monitors, support...

  • Page 85: Poe Power Output

    resolution up to 1080p. Also can output the live image of analog camera, IP camera, SDI digital camera to HD TV monitors. 3.6 PoE power output The tester supports PoE (Power over Ethernet) output to IP camera via RJ45 cable from LAN port. Data transmission and DC 48V power supply are using the same cable‘s PIN 1, 2, 3, 6 to deliver.
  • Page 86 connect to camera power input interface. Application Power output function is mainly used in the camera field demonstration and testing, meanwhile, for some camera installation sites, if there is no power outlet, the tester can offer temporary power for the camera.

  • Page 87: Specifications

    Make sure the tester is full charged or the battery icon shows more than 3 bars; otherwise the tester will show battery power is low, not able to offer power output. 3.8 USB 5V 2A power output 5V USB power output， adopts ultra-low power consumption design, when tester is turned off , this interface still can output power (Provide temporary emergency power for the mobile phone or other devices).
  • Page 88 1 channel BNC Input & 1 channel BNC Output , NTSC/PAL (Auto adapt) Analog Video test PEAK video signal level, SYNC signal level, COLOR BURST chroma level Video level meter measurement for cvbs camera. Zoom Image Support Analog camera and IP camera image zoom /move Snapshot, Video record Image screenshot and photos review, video record and playback, and playback...

  • Page 89: Multi-Meter Specifications

    Calibrated Wavelength(nm) ：850/1300/1310/1490/1550/1625nm Optical power meter Power range(dBm) ：-70～+10dBm (Optional)* Visual fault locator Test fiber‘s bending and breakage ( SM and MM fiber) (optional)* Cable‘s open circuit (Breakpoint) and short circuit measurement(BNC cable, telephone TDR cable test cable) (optional) * POWER External power supply DC 12V 2A...
  • Page 90 6.600V 66.00V 10mV 660.0V 100mV AC voltage Range Accuracy Resolution ± （1.5%+6） 660.0mV (Manual range) 0.1mV 6.600V ± （0.8%+6） 66.00V 10mV 660.0V 100mV DC current Range Accuracy Resolution 6.600mA ± （0.5%+3） 66.00mA 10uA 660.0mA 100uA ± （1%+5） 10.00A 10mA AC current Range Accuracy Resolution...
  • Page 91 660.0Ω 0.1Ω ± （0.8%+5） 6.600KΩ 1Ω 66.00KΩ 10Ω ± （0.8%+2） 660.0KΩ 100Ω 6.600MΩ 1KΩ 66MΩ ± （1.2%+5） 10KΩ Continuity Range Resolution Function 660.0Ω 0.1Ω The measurement value less 30Ω±3Ω,the tester will sound Diode Range Resolution Function Schottky diode：0.15~0.25V 2.0V rectifier diode：0.6~1.0V triode PN junction:0.5~0.8V Capacitance Range...

  • Page 92: Optical Power Meter Specifications

    10μF 66.00mF 4.3 Optical power meter specifications -70～+10dBm Measure Range(dBm) 850nm、1300nm、1310nm、1490nm、1550nm、1625nm Wavelength(nm) Detector InGaAs ＜± 3%dB(-10dBm，22℃) ＜± 5%dB(full range，22℃) Uncertainly Linear：0.1% ; Nonlinear：0.01dBm Display Resolution -10～+50 Operating Temperature(℃) -20～+70 Storage Temperature (℃) Connector type FC/PC 4.4 Visual fault locator specifications Laser type Wavelength Calibration 650nm...
