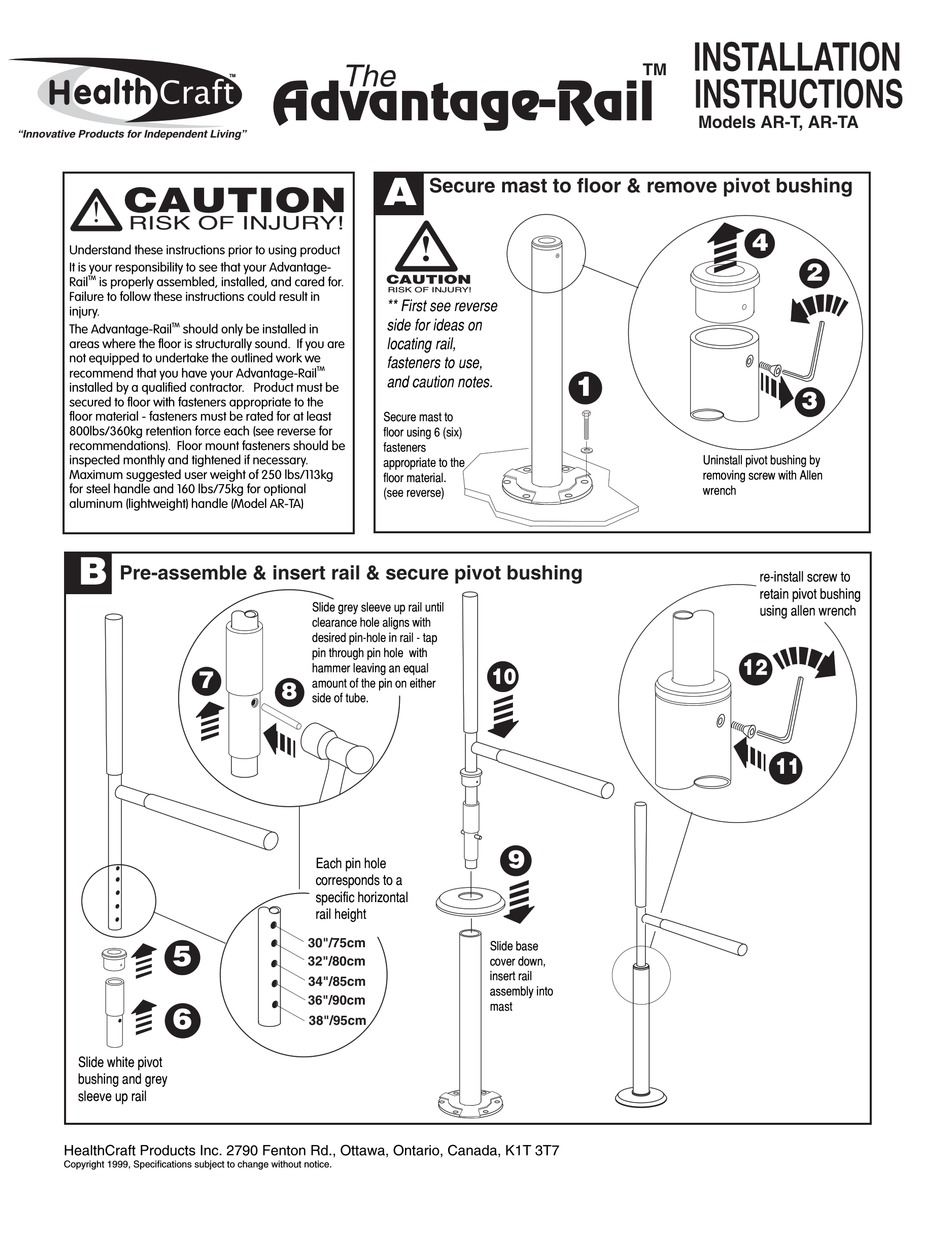

Health Craft Advantage-Rail series Installation Instructions

Craft
H
"Innovative Products for Independent Living"
CAUTION
!
RISK OF INJURY!
Understand these instructions prior to using product
It is your responsibility to see that your Advantage-
TM
Rail is properly assembled, installed, and cared for.
Failure to follow these instructions could result in
injury.
TM
The Advantage-Rail should only be installed in
areas where the floor is structurally sound. If you are
not equipped to undertake the outlined work we
recommend that you have your Advantage-Rail
installed by a qualified contractor. Product must be
secured to floor with fasteners appropriate to the
floor material - fasteners must be rated for at least
800lbs/360kg retention force each (see reverse for
recommendations). Floor mount fasteners should be
inspected monthly and tightened if necessary.
Maximum suggested user weight of 250 lbs/113kg
for steel handle and 160 lbs/75kg for optional
aluminum (lightweight) handle (Model AR-TA)
B
Pre-assemble & insert rail & secure pivot bushing
5
6
Slide white pivot
bushing and grey
sleeve up rail
HealthCraft Products Inc. 2790 Fenton Rd., Ottawa, Ontario, Canada, K1T 3T7
Copyright 1999, Specifications subject to change without notice.
The
TM
Advantage-Rail
TM
Slide grey sleeve up rail until
clearance hole aligns with
desired pin-hole in rail - tap
pin through pin hole with
hammer leaving an equal
7
8
amount of the pin on either
side of tube.
Each pin hole
corresponds to a
specific horizontal
rail height
30"/75cm
32"/80cm
34"/85cm
36"/90cm
38"/95cm
A
Secure mast to floor & remove pivot bushing
!
CAUTION
RISK OF INJURY!
** First see reverse
side for ideas on
locating rail,
fasteners to use,
and caution notes.
Secure mast to
floor using 6 (six)
fasteners
appropriate to the
floor material.
(see reverse)
10
9
Slide base
cover down,
insert rail
assembly into
mast
INSTALLATION
TM
INSTRUCTIONS
Models AR-T, AR-TA
4
1
Uninstall pivot bushing by
removing screw with Allen
wrench
12
2
3
re-install screw to
retain pivot bushing
using allen wrench
11
