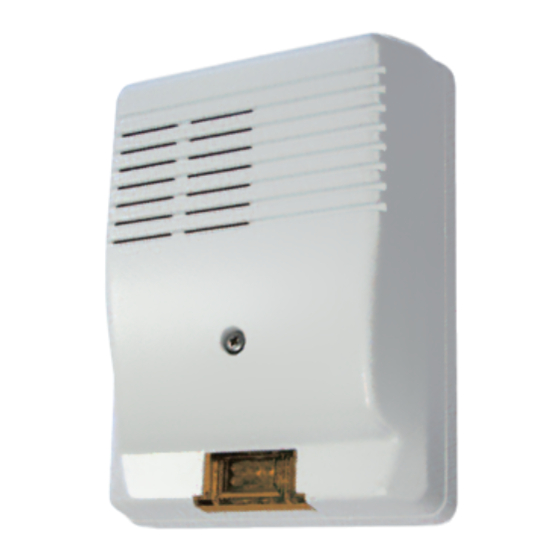

Outdoor siren self-powered
Made in FRANCE
Housing in cast
aluminium with
polyester paint
LEDs
SIREX : siren without FLASH
SIREX-F : siren with integrated FLASH
SIREX and SIREX-F are admitted to NF and A2P « 3 shields » in accordance with norms
NFC48-265 and NFC48-266 and with the reference of the certification NF324-H58
in numbers: 3030000490 and 3230000620 -- Manufacturing Unit : N° 122 P2
CNPP Certification (centre national de prévention et de protection):
According to the continuous improvement of our products, the information contained in this guide may be
subject to change without notice. ATLS may not be held liable for any errors contained in this document, nor
incidental or consequential damages relating to the supply, the quality or use of this document.
The products of the range ALTEC are designed and made in France by the company ATLS
http://www.cnpp.com
AFNOR Certification :
http://www.marque-nf.com
Certificate number INCERT: B-712-0002
SIREX and ALTEC are registered trademark of ATLS
N O T I N S 0 U K 0 0 0 0 2 5 - V 1 . 0 4
Installation GUIDE
Advertisement
Table of Contents
Summary of Contents for Altec SIREX
- Page 1 SIREX : siren without FLASH SIREX-F : siren with integrated FLASH SIREX and SIREX-F are admitted to NF and A2P « 3 shields » in accordance with norms NFC48-265 and NFC48-266 and with the reference of the certification NF324-H58 in numbers: 3030000490 and 3230000620 -- Manufacturing Unit : N° 122 P2 CNPP Certification (centre national de prévention et de protection):...
- Page 2 - Regulation of charging to 13.8 Vdc: Even if the charging voltage delivered by the panel is not high enough, Sirex amplifies it to provide to the battery a charging voltage of 13.8 Vdc to warranty a perfect load. WIRING •...
- Page 3 Input + blocking siren Input + blocking to place the sign M/A Tamper circuit All the connections are Very Low Safety Voltage in terms of the norm EN 60950. The SIREX electric power must be supplied by a limited power source. OPERATION...
- Page 4 The signal set ON or OFF of the alarm system triggers a series of short beeps and the flashing, when the blocking voltage of 12V is switched to 0VDC. When the blocking voltage is back, the SIREX generates a new series of beeps with longer flashings this time to distinguish the two states.
- Page 5 INSTALLATION SIREX is fixed on a vertical wall and flat surface greater than that of its box, leaving at least 2cm on each side. Drill the mounting holes according to the drilling template, and then attach first the plastic plug-shaped on the wall. Then place the...
- Page 6 DESTRUCTION OF THE BATTERIES Sirex may have been installed with a battery or a backup battery backup. Do not dispose of batteries in your trash, it is forbidden to cremate, bury them or throw them into landfills. Dispose batteries according to the current laws and regulations.
