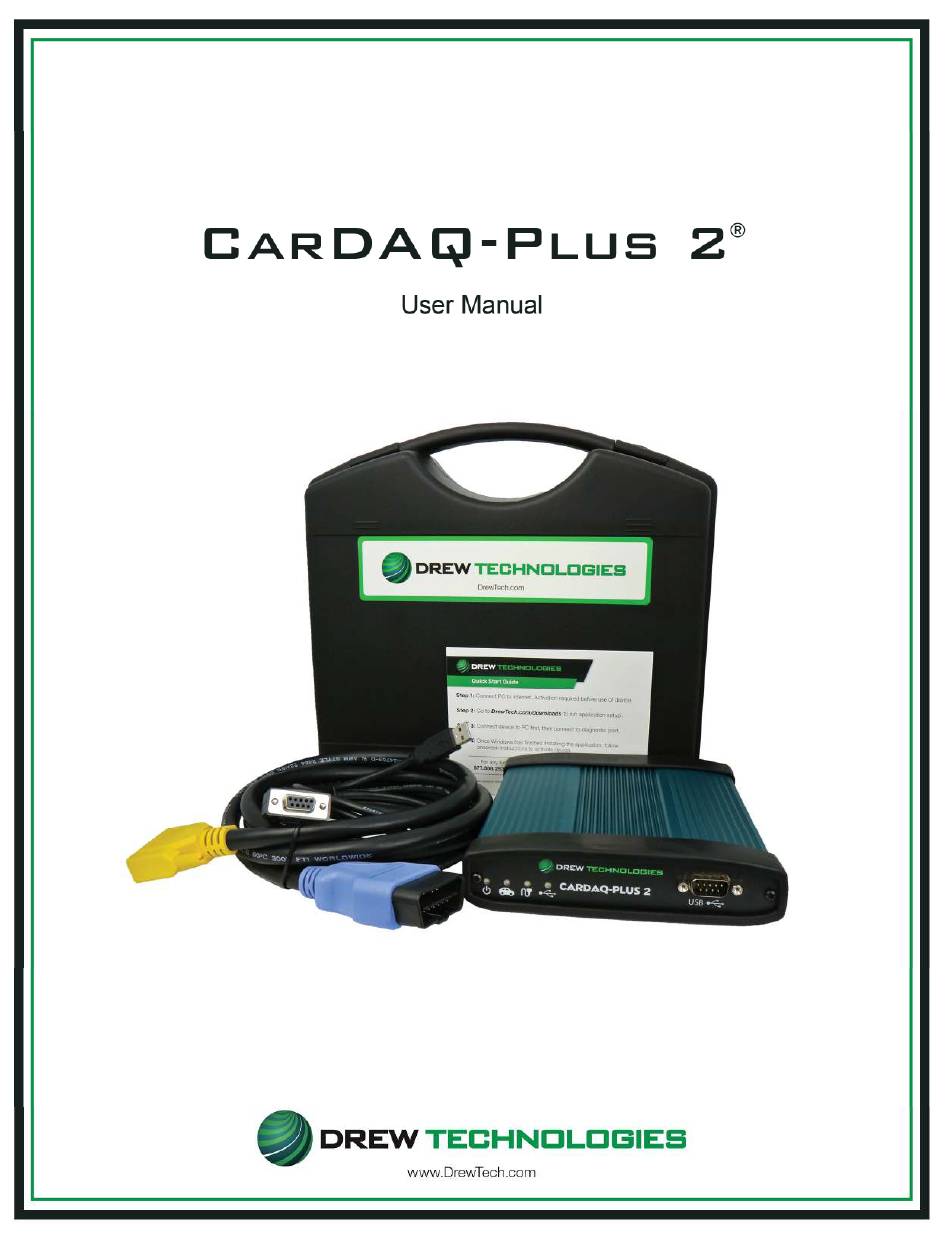

Summary of Contents for Drew Technologies CarDAQ-Plus 2
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ......................3 ® GETTING TO KNOW THE CarDAQ-Plus 2 ............... 3 - LED Status Lights ......................3 INSTALLATION & DEVICE ACTIVATION ..............4 J2534 Toolbox 3 ......................7 DREWTECH - Tech2Win DRIVER ................9 - Troubleshooting ....................... 9 PRODUCT SPECIFICATIONS .................. -
Page 3: Introduction
INTRODUCTION ® Thank you for choosingDrew Technologies! CarDAQ-Plus 2 will allow you to re-flash/program modern vehicle controllers specified by the OEM as well as perform dealer level diagnostics with select OEM applications. More information for each OEM can also be found in the J2534 ®... -
Page 4: Installation & Device Activation
INSTALLATION & DEVICE ACTIVATION 1. Click this link to go to the DrewTech downloads page: DrewTech.com/downloads ® 2. Locate and click on the "CarDAQ-PLUS 2 Set-up" link 3. Run the installation once the software has downloaded to your PC. Upon encountering this screen,... - Page 5 5. The Device Activator application will refresh. Click "Activate My Device!" 6. Select the device you want to activate and click "Continue" 7. Fill in all applicable information and click "Continue"...
- Page 6 OEMs you are planning to support. Click "Continue" 9. (a) For final check of the interface, unplug ® the USB cable for the CarDAQ-Plus 2 device from your PC, and click "Ok" (b) Then plug the USB cable for the ®...
-
Page 7: J2534 Toolbox 3
J2534 Toolbox 3 The J2534 Toolbox 3 application isautomatically installed on the PC when the pass-thru driver is installed and will place an icon on the desktop. The purpose of J2534 Toolbox 3 is to provide current, relative information and assistance to the user. The information is provided viavarious walk-through documents, OEM documentation, web-links, quick-links, videos, basic diagnostic functions, connection verification, and more. - Page 8 7. Support tab:contains functions to check driver installation, vehicle communication, updating the device, create debug logs, contacting Support,and other resources 8. Training tab:contains general information, regarding installation and using OEM J2534 application videos with Drew Technologies products...
-
Page 9: Drewtech - Tech2Win Driver
DREWTECH - Tech2Win DRIVER DrewTech’s Tech2Win driver allows the use of the CarDAQ-Plus 2 ® device as the interface using the Tech2Win application. If communication concerns are encountered, first check the DrewTech Tech2Win driver status and configuration: 1. Go to: Start>All Programs>Drew Technologies, Inc>Tech2WinDriver and open the "DrewTech Tech2Win Driver Configuration"... -
Page 10: Product Specifications
If you have ordered a Bluetooth equipped CarDAQ Plus 2 , you will have an antenna and Bluetooth USB dongle included. Drew Technologies supports Bluetooth Diagnostics, but will not provide support for module programming done via Bluetooth. To setup your CarDAQ Plus ®... -
Page 11: Operating Systems Supported
Operating Systems Supported: Windows 7® 32-bit and 64-bit Versions • Windows 8® 32-bit and 64-bit Versions • Windows 8.1® 32-bit and 64-bit Versions • Windows 10® 32-bit and 64-bit Versions • Physical Specifications/Tolerances: Name Value Dimensions (approximate) 6.5” x 6” x 1.5” InputVoltageRange 7VDC to 27VDC Supply Current... -
Page 12: Important Notes
Products are warranted to be free from defects in materials or workmanship for one year from the date of purchase*. Within this period, Drew Technologies will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost. -
Page 13: Fcc Statement
• Users are given permission to copy any part of this manual provided that the copy is • used with the DrewLinQ product and the "Copyright © 2017 Drew Technologies, Inc ." statement remain on all copies • "DrewTech" is synonymous with "Drew Technologies, Inc." and is used in this manual The “Drew Technologies”... -
Page 14: Drewtech Support
DREWTECH SUPPORT For any technical support, please contact Drew Technologies Support by emailat support@drewtech.com or call toll-free:877.888.2534, option 3. Support hours are 8:30am - 5:30pm EST Monday - Friday, excluding holidays. Drew Technologies, Inc. 3915 Research Park Drive, Suite A10...
