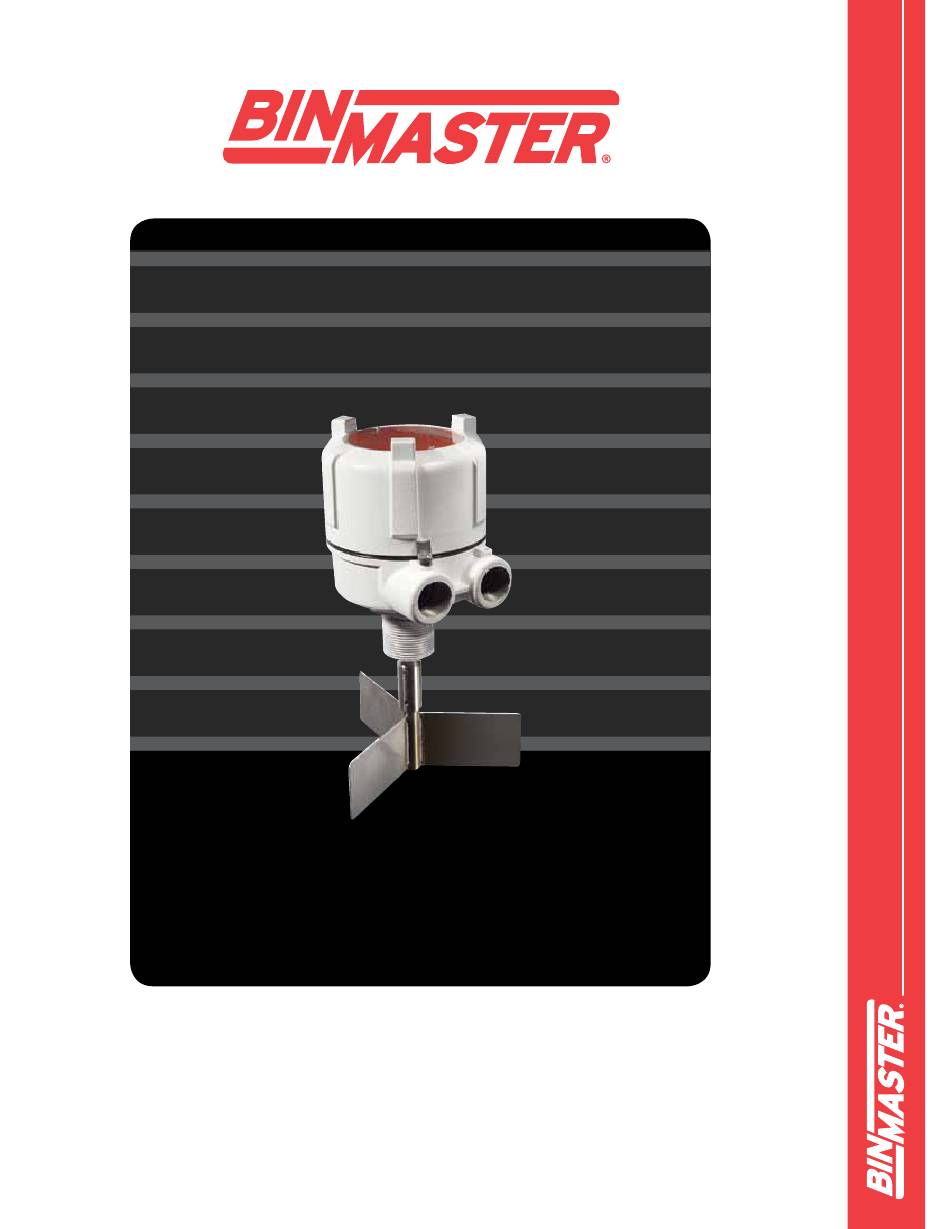

- Page 1 BMRX Series Rotary Level Indicator BinMaster: Division of Garner Industries 7201 N. 98th St., Lincoln, NE 68507 402-434-9102 • email: info@binmaster.com www.binmaster.com OPERATING INSTRUCTIONS PLEASE READ CAREFULLY 927-0252 Rev C 0812...
-
Page 2: Table Of Contents
TABLE OF CONTENTS GENERAL SPECIFICATIONS .................... 3 SAFETY SUMMARY ......................4 1.0 INTRODUCTION ......................5 2.0 INSTALLATION ......................5 2.1 Location and Mounting ..................5 2.2 Input Power and Field Wiring................6 2.3 Grounding......................6 3.0 DPDT RELAY ....................... 7 3.1 Fail-Safe High ....................... -
Page 3: General Specifications
SPECIFICATIONS BMRX GENERAL SPECIFICATIONS Supply: AC MODELS 24 VAC, 115 VAC, or 230 VAC 50/60 Hz DC MODELS 12 VDC or 24 VDC Supply Tolerance: -15% +10% Load: AC Model = 5.5 VA; DC Models = 1 VA Ambient Temperature: (Electronics) -40°F to +158°F (-40°C to +70°C) Enclosure: Type 4X, 5, 7, 9, &... -
Page 4: Safety Summary
SAFETY SAFETY SUMMARY Review the following safety precautions to avoid injury and prevent damage to the equipment. The product should be installed, commissioned, and maintained by qualified and authorized personnel only. Install according to installation instructions and comply with all National and Local codes. Use electrical wire that is sized and rated for the maximum voltage and current of the application. -
Page 5: Introduction

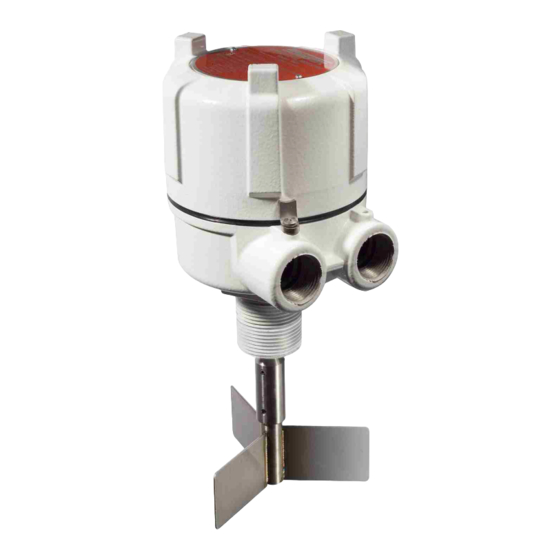

INTRODUCTION 1.0 INTRODUCTION The BinMaster BMRX is a rotating paddle style level sensor which provides reliable point level detection for bulk solids, including powder, pellet, and granular materials. The unit has a switch selectable fail-safe relay that will fall to a "safe" condition in the event of a power failure. -
Page 6: Input Power And Field Wiring
MOUNTING PLATES Mounting plates are necessary when a completely assembled unit is to be mounted on the bin wall from the outside. A 5-1/2” hole is cut in the bin. Six bolt holes are drilled around the hole to match the mounting plate. The plate, with the unit attached, is then bolted in place. All mounting plates are available in carbon and stainless steel. -
Page 7: Grounding
2.3 Grounding An equipment grounding connection (earth ground) must be supplied to the unit for safety. Connect the ground conductor to the green equipment grounding screw identified in the enclosure. 3.0 DPDT RELAY The DPDT relay utilizes a Fail-Safe selector switch. There are 2 positions for this switch, High (H) and Low (L). -
Page 8: Warranty And Customer Service
4. This warranty is in lieu of all other warranties, expressed or implied. 4.2 Customer Service BinMaster offers a toll-free Customer Service phone number 1-800-278-4241. You may call the Customer Service Department for technical and application assistance Monday through Friday from 8:00 AM to 5:00 PM Central Time. -
Page 9: European Declaration Of Conformity
Lincoln, NE 68507-9741 Phone: 402-434-9100, Fax: 402-434-9133 BinMaster declares that all models of the BMRX level control devices as listed below comply with the following directives and harmonized standards. This product if installed, operated and maintained as described in this manual will provide a safe and reliable point level control device for bulk solid materials. - Page 10 BinMaster: Division of Garner Industries 7201 N. 98th St., Lincoln, NE 68507 402-434-9102 • email: info@binmaster.com www.binmaster.com...
