Read this owners manual thoroughly before use and save.
1.0 METER FUNCTIONS
7
3
2
4
9
CONTENTS
1. Meter Functions
2. Read First
2.1 For Your Safety
3. Operating Suggestions
3.1 AC Volts
3.2 DC Volts
3.3 Resistance
4. Battery Replacement
OPERATING INSTRUCTIONS
3 Function, 12 Range Digital Multi-Meter

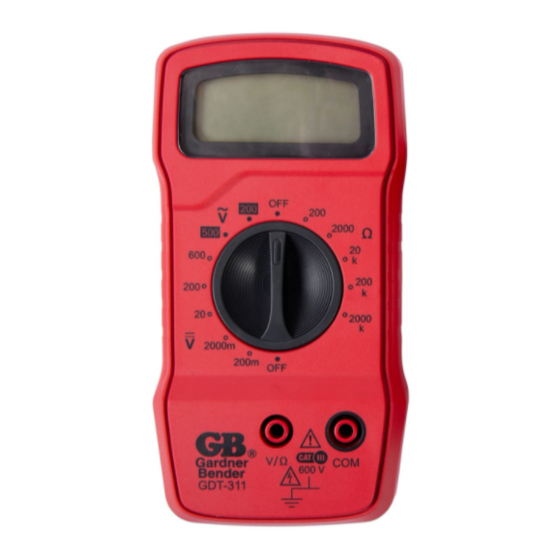

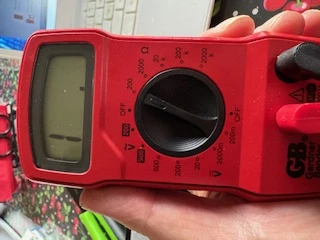

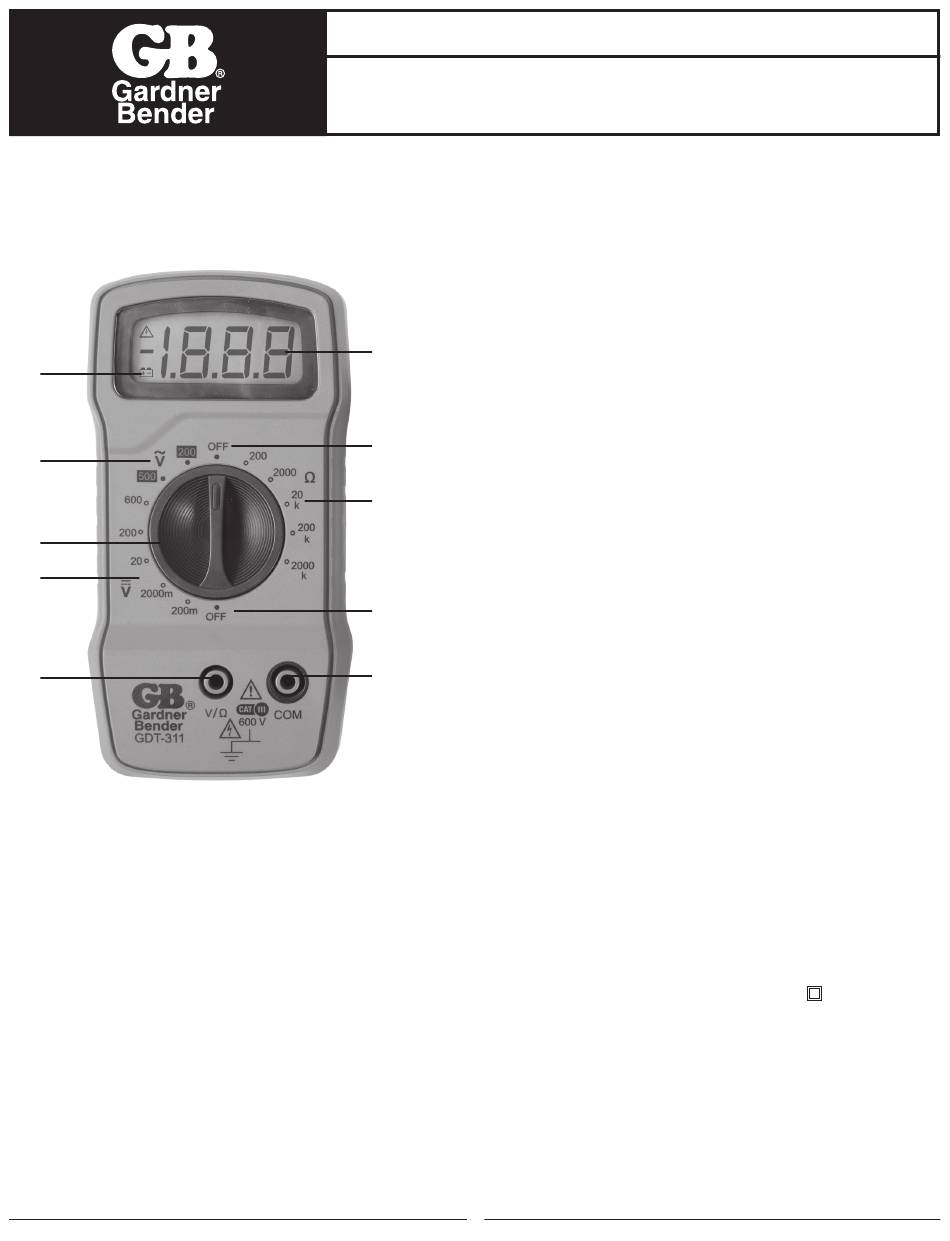

1.1 FUNCTIONS (Figure 1)
1. 2000 count digital display
2. 14 position
3. AC Volts
4. DC Volts
1
5. Resistance
6. Off Dial Selection
7. Low Battery Indicator
8. Common Input Jack
9. Positive Input Jack
6
1.1 METER FUNCTIONS
Meter Type:
5
Functions:
Ranges:
Display Count:
Input Impedance:
AC Volt Ranges:
DC Volt Ranges:
6
Resistance Ranges:
Operating Environment
Indoor Use
8
Operating Temperature:
Storage Temperature:
Relative Humidity:
Altitude:
Ingress protection degree: IP40
Pollution degree:
Battery Type:
Battery Life:
Overrange Indication:
Polarity Indication:
Size (LxWxH):
Weight:
Test lead type:
Agency Approvals:
Note: Accuracy is given for one year at 23°C ± 3°C rH<70%
1
GDT-311
Manual
3
12
2000
10 Meg Ohm
200 / 500 (2.5% + 5 digits)
200m / 2000m / 20 / 200 / 600 ±(1.2% + 2 dgts)
200 / 2000 / 20k / 200k / 2000k ±(1.5% + 2 dgts)
0°C – 40°C
-10°C – 50°C
0% – 75%RH (0°C – 31°C)
0% – 50%RH (31°C – 40°C)
Up to 2000m
2
9 Volt
100 hours with carbon-zinc cells, 200 hours with
alkaline cells under normal conditions.
The three least significant digits are blank and
the number "1" is displayed at the left when the
range capacity is exceeded by the input.
Negative displayed, positive implied
5.51" x 2.83" x 1.26"
Approximately 110g (without batteries)
ETL, cETL, CE, CAT III 600V 1A
ETL, CE, CAT III 600V
