Define Instruments PRO-TC-LV Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Contents
1 - Specifications .............................. 2
2 - Front Panel & Display ................. 3
3 - Wiring .......................................... 5
5 - Data Sources ............................. 10
7 - Setpoint Setup .......................... 20
8 - Setpoint Direct Access .............. 23
Firmware Version ...................... 23
Copyright © 2017 Define Instruments

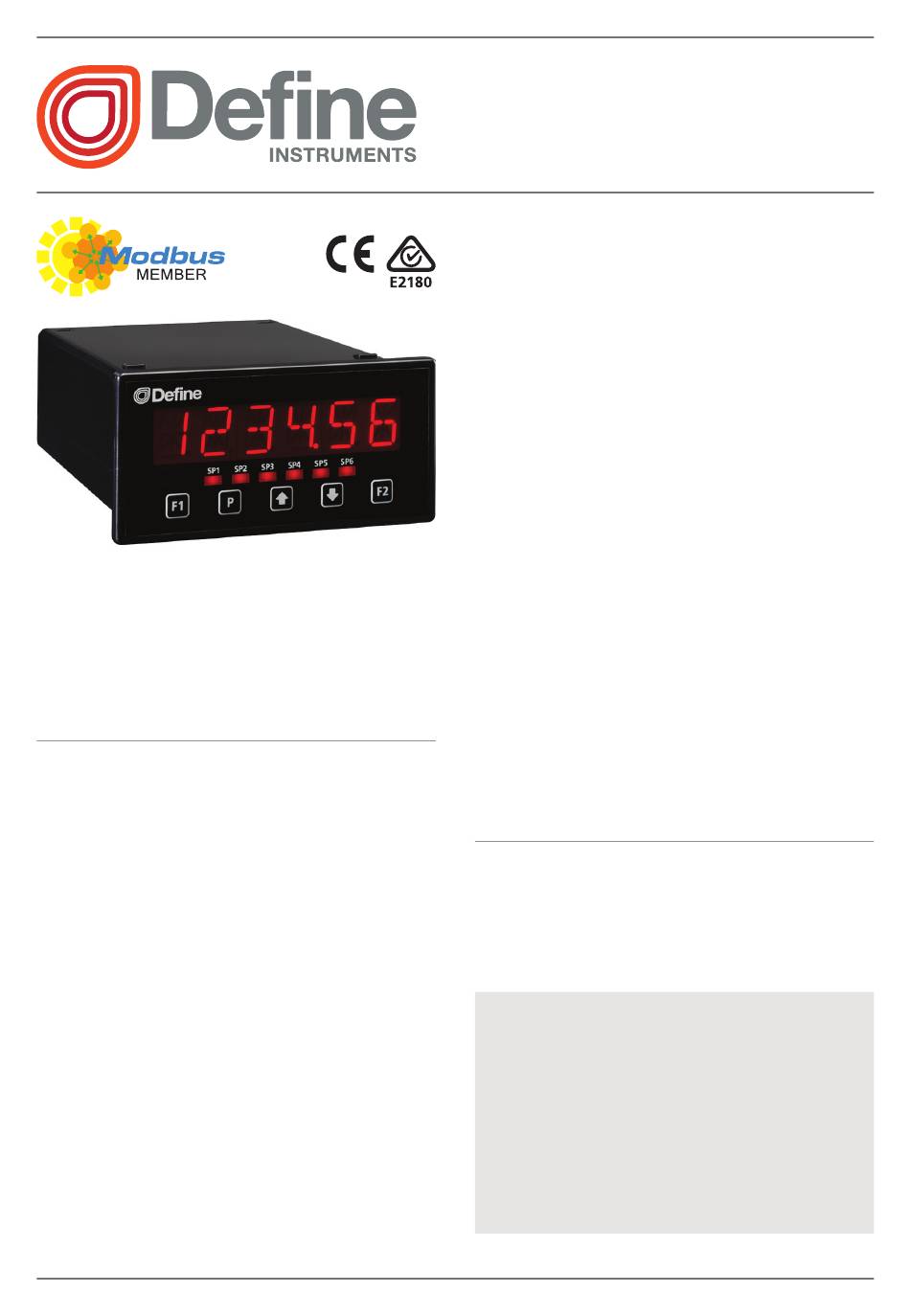

Temperature Controller
This quad channel thermocouple con-
troller is ideal for numerous industrial
temperature applications. It accepts di-
rect sensor input from all common ther-
mocouple types.
One of the key features of this controller
is its ability to average the inputs across
2, 3 or 4 temperature channels, and use
this averaged value for a display source
or for setpoint activation.
Order Codes
PRO-TC
-HV
85-265V AC / 95-370V DC
-LV
15-48V AC / 10-72V DC
Options
-R2
2 x relay outputs
-R4
4 x relay outputs
-A
1 x mA/V analog output
-S2R 1 x RS232 (RJ11 terminal)
-S4S 1 x RS485 (screw terminal)
PRO-TC
PRO-TC-MAN-17V01 (0802)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO-TC-LV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Define Instruments PRO-TC-LV

  • Page 1: Table Of Contents

    1 x mA/V analog output -S2R 1 x RS232 (RJ11 terminal) 9 - Reset PIN Numbers / View -S4S 1 x RS485 (screw terminal) Firmware Version ...... 23 A - Appendix A - Serial Modes ..24 Copyright © 2017 Define Instruments PRO-TC-MAN-17V01 (0802)

  • Page 2: Specifications

    AC max or 3A 30V DC max) Digits 1 row of 6 digits, 13mm (0.5"), 14 OPTIONAL Analog Output segment alphanumeric LED Analog output type 1 x Isolated 16 bit Display range 0.1 to 99999.9 4–20mA / 0–10V (selectable) PRO-TC-MAN-17V01 (0802) Copyright © 2017 Define Instruments...

  • Page 3: Front Panel & Display

    Valley value, or to view the current channel average value (see 2.3). This button is used to access the Setpoint Setup menu (Section 7) and the Set- point Direct Access menu (Section 8). Copyright © 2017 Define Instruments PRO-TC-MAN-17V01 (0802)
  • Page 4 Current input value for channel 3 TEMP 4 Current input value for channel 4 VALLEY The minimum measured value since the instrument was turned on or reset (see 5.5) AVETMP Average temperature value (see 5.4A) PRO-TC-MAN-17V01 (0802) Copyright © 2017 Define Instruments...

  • Page 5: Wiring

    3.3 - Relay outputs –R2 –R4 See 3.1A If your controller has relay outputs fitted, wire them as shown. Relays can be pro- grammed to operate within the total span range of the controller. Copyright © 2017 Define Instruments PRO-TC-MAN-17V01 (0802)
  • Page 6 Note that if you have activated the multiplex feature by setting your analog output source to MPX in 6.6B, then the 'Pk/Val' and 'Hold' pins will not perform the func- tions described above. (See 5.4C for more information.) PRO-TC-MAN-17V01 (0802) Copyright © 2017 Define Instruments...
  • Page 7 10–72V DC) HV power LV power supply supply Once you have completed the wiring process it is safe to switch on your power supply. Ensure that your display is functioning before you proceed. Copyright © 2017 Define Instruments PRO-TC-MAN-17V01 (0802)

  • Page 8: Dimensions & Installation

    4.1 - Case dimensions mm (4.72") mm (1.54") (0.16") Cabling Allowance (3.78") (3.62") minimum depth required behind panel mm (6.10") (4.72") (1.54") mm (0.16") Cabling Allowance (1.89") (1.77") minimum depth required behind panel mm (6.10") PRO-TC-MAN-17V01 (0802) Copyright © 2017 Define Instruments...
  • Page 9 Meter Faceplate the Screws evenly until the unit sits firmly against the panel. Do not Panel Gasket over-tighten the screws. Mounting Clips Panel Cutout 92mm Screws ±.5 (3.62 ±.02 45mm ±.5 (1.77 ±.02 Copyright © 2017 Define Instruments PRO-TC-MAN-17V01 (0802)

  • Page 10: Data Sources

    This will essentially mirror the display data source to the selected output, allowing the cycling 'AUTO' feature to be used with other outputs, if desired. PRO-TC-MAN-17V01 (0802) Copyright © 2017 Define Instruments...
  • Page 11 The MAXTMP or MINTMP value can be used as the default view for the op- erational display, or as a data source for analog output, serial output, setpoint control, or the peak and valley values. Copyright © 2017 Define Instruments PRO-TC-MAN-17V01 (0802)
  • Page 12 (3.6), or by restarting the controller. While 'Peak' and 'Valley' have their own data source, they can also be used as data sources - for the display, analog output, serial output, or setpoint control. PRO-TC-MAN-17V01 (0802) Copyright © 2017 Define Instruments...

  • Page 13: Input Setup & Calibration

    1–3, etc. See 3.2 for wiring. _ _ _ TEMPERATURE SCALE scrolls across the display and toggles with the cur- rent scale. Use the buttons to select DEG C (°C) or DEG F (°F), and then press Copyright © 2017 Define Instruments PRO-TC-MAN-17V01 (0802)
  • Page 14 For more information about display data sources, see 5.2. In Auto mode, the main display constantly cycles through all available input channels (I.e. TEMP 1, followed by the current value for that channel, then TEMP 2, TEMP 3 etc). PRO-TC-MAN-17V01 (0802) Copyright © 2017 Define Instruments...
  • Page 15 ENTER and set the date and time. _ _ _ HOURS scrolls across the display and toggles with the current selection. Use the buttons to adjust the hour (from 0 to 23), and press Copyright © 2017 Define Instruments PRO-TC-MAN-17V01 (0802)
  • Page 16 Then use the buttons to set the required high level display value, and press to accept. If calibration was successful, you will be directed back to 6.5A to select a new PRO-TC-MAN-17V01 (0802) Copyright © 2017 Define Instruments...
  • Page 17 _ _ _ HIGH SCALE VALUE FOR ANALOG O/P scrolls across the display and toggles with the currently selected high scale display value. Use the buttons to enter your cal high position, and then press Copyright © 2017 Define Instruments PRO-TC-MAN-17V01 (0802)
  • Page 18 MODBUS (RTU) is an industry standard RTU slave mode that allows connection to a wide range of devices, such as PC’s or PLC’s. See A.2 for more information. RNGR A is a continuous output, used to drive instruments in the Rinstrum™ range. See A.3 for more information. PRO-TC-MAN-17V01 (0802) Copyright © 2017 Define Instruments...
  • Page 19 _ _ _ ENTER NEW F1 PIN NUMBER scrolls across the display and toggles with the current PIN (default 1). Using the buttons, enter your new F1 PIN number. Then press to exit to the operational display. Copyright © 2017 Define Instruments PRO-TC-MAN-17V01 (0802)

  • Page 20: 7.2 - Setpoint Setup

    _ _ _ SP VALUE scrolls across the display and toggles with the current value for the selected setpoint. Using the buttons, adjust the display value at which the selected setpoint will activate, and then press PRO-TC-MAN-17V01 (0802) Copyright © 2017 Define Instruments...
  • Page 21 HYSTERESIS VALUE controls deactivation point. HYSTERESIS VALUE con- setpoint deactivation point. trols setpoint reactivation point. Hysteresis Hysteresis Hysteresis Hysteresis band band band band Energised Below Energised Above Energised Below Energised Above Copyright © 2017 Define Instruments PRO-TC-MAN-17V01 (0802)
  • Page 22 _ _ _ ENTER NEW F2 PIN NUMBER scrolls across the display and toggles with the current PIN (default 1). Using the buttons, enter your new F2 PIN number. Then press to exit to the operational display. PRO-TC-MAN-17V01 (0802) Copyright © 2017 Define Instruments...

  • Page 23: Setpoint Direct Access

    – ALL PIN NUMBERS RESET TO 1. Reset the default PIN numbers if required by following the instructions in 6.8 and 7.3, entering ‘1’ whenever you are prompted for your current PIN. Copyright © 2017 Define Instruments PRO-TC-MAN-17V01 (0802)

  • Page 24: A - Appendix A - Serial Modes

    1000000, but note that not all registers will accept this range. Message Terminator - This is the last character, and must be either a '$' (dollar) or an '*' (asterisk). Neither of these characters should be used elsewhere in the PRO-TC-MAN-17V01 (0802) Copyright © 2017 Define Instruments...
  • Page 25 Controller Response - After the controller has completed a read or write instruction, it responds by sending a carriage return/line feed (CR/LF) back to the host. If the instruction was a read command, the CR/LF follows the last character in the Copyright © 2017 Define Instruments PRO-TC-MAN-17V01 (0802)
  • Page 26 (up to 62 characters). This is accessed using a standard Modbus read/write command for holding registers, where each 16 bit register holds 2 x ASCII string characters in sequence. PRO-TC-MAN-17V01 (0802) Copyright © 2017 Define Instruments...
  • Page 27 (If there is no decimal point, then the first character is a space. Leading zero blanking applies.) Status - Single character output value status. 'U'=Under, 'O'=Over, 'E'=Error. End - ETX character (ASCII 03) Copyright © 2017 Define Instruments PRO-TC-MAN-17V01 (0802)
  • Page 28 Defi ne Instruments New Zealand (Head Offi ce) United States (Dallas, TX) 10B Vega Place, Rosedale, Ph: (214) 926 4950 Auckland 0632, New Zealand sales@defi neinstruments.com PO Box 245 Westpark Village, www.defi neinstruments.com Auckland 0661, New Zealand Ph: +64 (9) 835 1550 South Africa (Pretoria) Fax: +64 (9) 835 1250 sales@defi neinstruments.co.za...
