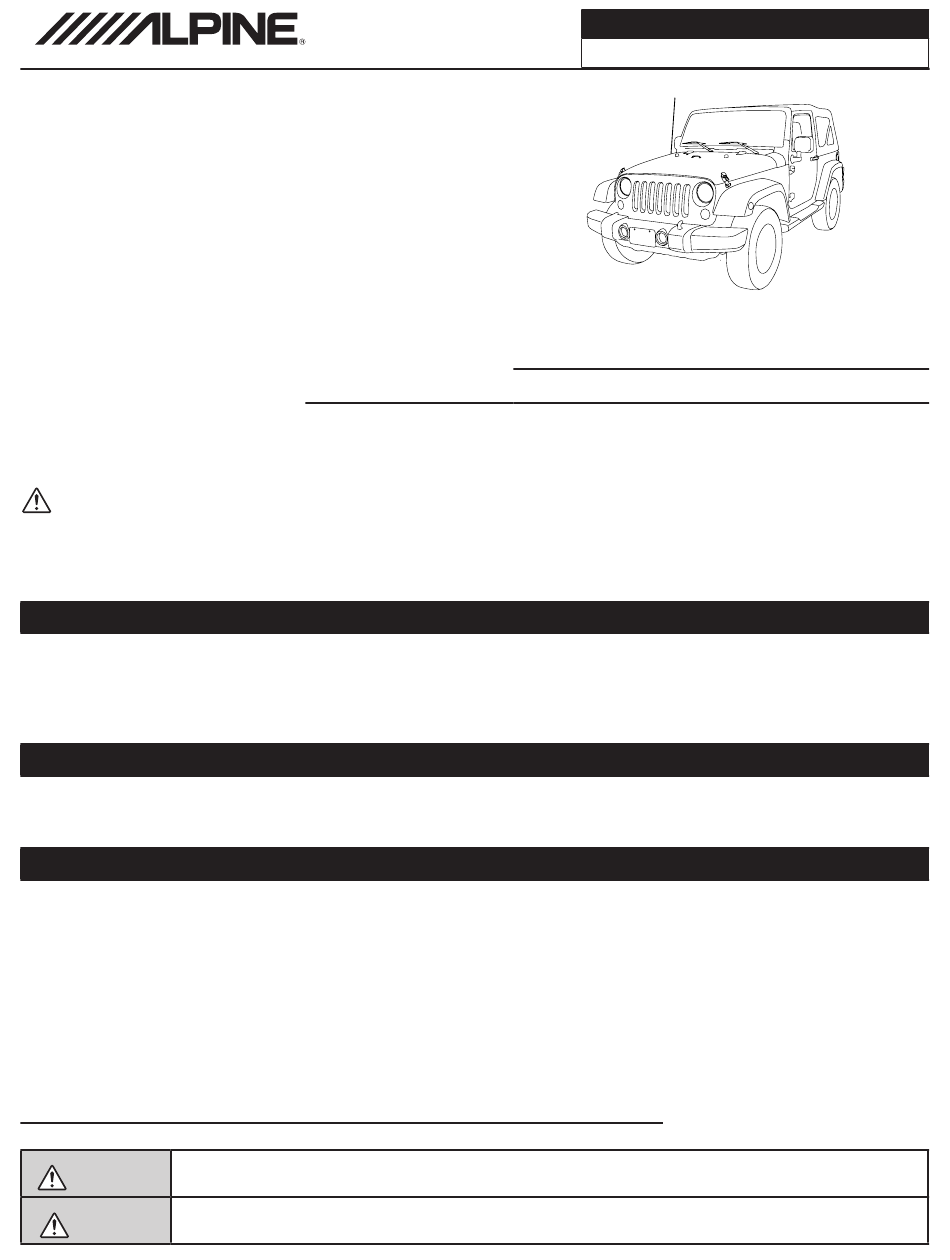

9” restyle in-dash system for jeep wrangler year: 2011-2018

Advertisement

Jeep Wrangler
X209-WRA-OR
X209-WRA-ORSXM

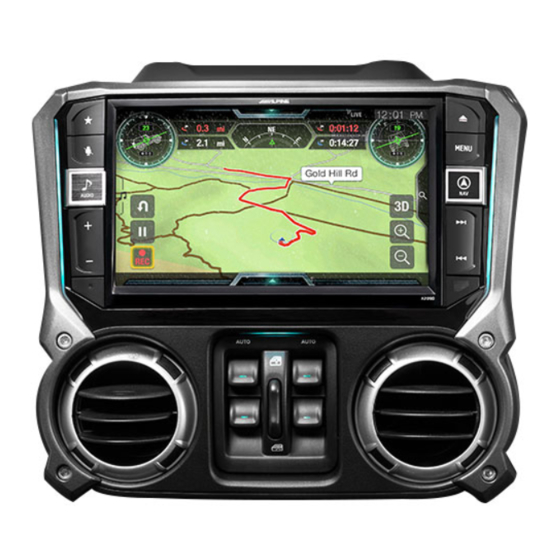

9" Restyle In-Dash System
Installation Manual
˜ Model: Wrangler
˜ Model Year: 2011-2018
* The specified vehicles have been tested and have met compatibility specs at the time of testing. Compatibility is
not guaranteed if the manufacturer has made production changes to the listed vehicles above.
Warning: Before you begin wiring, remove the ground wire from the negative
terminal of the battery. Failing to do so can lead to electric shock, injury or damage
to equipment.
Introduction
˜ Congratulations on purchasing the X209-WRA-OR. This installation manual is designed to take you through the
step-by-step installation of X209-WRA-OR into a 2011-2018 Jeep Wrangler. Please familiarize yourself with the
owners manual and if you still have additional questions please call 1-800-TECH-101.
Note
˜ Design and specifications are subject to change without notice for improvement.
To Ensure Safe Use, Always Follow These Precautions
˜ The installation of this product requires specialized skills and experience. We recommend that you have the
product installed by an Alpine authorized dealer.
˜ Before you use this product, be sure to carefully read this installation manual and the separate user's manual
so that you can use the product correctly. Alpine Electronics bears no responsibility for problems that arise as
a result of failure to follow the instructions in the manuals.
˜ This manual includes a number of symbols that are intended to help you use the product safely, to prevent
harm to you and others, and to protect against damage to property. These symbols and their meanings are
listed below. Make sure you fully understand these symbols before you begin reading the main text.
Explanations of Injury and Damage That May Result from Incorrect Use
Ignoring the content marked by this indication and using the product incorrectly is
Warning
expected to lead to death or serious injury.
Ignoring the content marked by this indication and using the product incorrectly is only
Caution
expected to lead to injury or property damage.
Model
Jeep
Wrangler
WRANGLER
Year
2011 - 2018
Jeep Wrangler
˜ 1/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X209-WRA-OR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Alpine X209-WRA-OR

  • Page 1 ˜ Before you use this product, be sure to carefully read this installation manual and the separate user's manual so that you can use the product correctly. Alpine Electronics bears no responsibility for problems that arise as a result of failure to follow the instructions in the manuals.
  • Page 2 Jeep Wrangler WRANGLER ˜ 2/22 Types of Precautions Indicates actions that are forbidden Indicates actions that are (must not be performed) mandatory (must be performed) Forbidden Mandatory Indicates that disassembly is Marks content that should receive forbidden. your full attention. Forbidden Warning Do not disassemble or modify the product.
  • Page 3 Do not install the product where it may be exposed to water or in a place with high levels of humidity or dust. Doing so could lead to fire or damage equipment. Forbidden The installation and wiring of this product requires specialized skills and experience. Have the product installed by an Alpine authorized dealer.
  • Page 4: Tools Required

    WRANGLER ˜ 4/22 Tools Required Panel Removing Tool 7mm Sockets #2 Phillips Screwdriver 10mm Sockets Extension Ratchet Wire Cutters Air Saw Accessory List Installation Kit Parts (G-KTX-X209D-WRA) X209-WRA-OR Radio Dash Key Harness Side Mounting Brackets Bezel Microphone Rear Support Bracket...
  • Page 5 Head Unit Box Parts (X209D OR) X209D OR DVD/Display Unit X209D OR Source Unit USB Extension Cable AUX/Pre Out Harness GPS Antenna Documents OM QR Card Alpine QRG Navigation Registration Card Direct Camera Adapter Display Cable HDMI Cable Source Unit HDMI Bracket DVD/Display HDMI Bracket...
  • Page 6 Jeep Wrangler WRANGLER ˜ 6/22 Programming the iDatalink Maestro Module INSTALL THE WEBLINK PLUG-IN REGISTER A WEBLINK ACCOUNT Go to: Go to: idatalinkmaestro.com/plugin and follow the installation steps. The idatalinkmaestro.com/register and complete the registration process. Maestro module must be programmed specifically for each vehicle A confirmation email will be sent to you requiring validation.
  • Page 7: Gps Antenna

    Jeep Wrangler WRANGLER ˜ 7/22 Component Locations IMPORTANT: Follow the recommended component location shown below. Failure to do so, will result in poor GPS performance. Add-on Microphone iDatalink Maestro Module SAT-Radio Tuner (Sold Separately) Jeep SINCE 1941 Jeep GPS Antenna Installation IMPORTANT: Follow the GPS antenna installation procedure shown below.
  • Page 8 Jeep Wrangler WRANGLER ˜ 8/22 Factory Unit Disassembly Process Remove the rubber cover from the top center Remove the knee cover panel and extract (2) 7mm storage area and extract (1) 7mm screw. screws located to the right and left sides of the steering wheel column.
  • Page 9: Installation Instructions

    The factory dash panel needs to be trimmed to Remove the vents from the radio section on the allow the new X209-WRA-OR bezel to fit into place. OEM dash panel by pressing down on the lock tab Remove the highlighted area by cutting along the and turning right.
  • Page 10 Jeep Wrangler WRANGLER ˜ 10/22 Installation Instructions Attach the modified panel using the factory screws. Position X209D OR source unit on top of X209 DVD/Display unit as shown, and attach the mounting brackets using the provided (8) 8mm screws and rear support rubber cap screw. Attach the rear support bracket using (2) 7mm Route the USB extension cable to the glove box, factory screws.
  • Page 11 Jeep Wrangler WRANGLER ˜ 11/22 Connecting the Uconnect® USB port (only for vehicles with factory Uconnect®) Remove the factory climate control panel. It is Disconnect the 4pin OEM connector. clipped on and can be removed with a panel removing tool. Extract the (2) 7mm bolts from Uconnect®...
  • Page 12: Mounting Brackets

    Jeep Wrangler WRANGLER ˜ 12/22 Mounting Brackets IMPORTANT: During the research and development of this product it was discovered that mounting tolerance may vary from the vehicle’s trim level to year built. We have added a 1mm tolerance to the mounting brackets to compensate for such variance in mounting tolerance.
  • Page 13: Exploded View Diagram

    Jeep Wrangler WRANGLER ˜ 13/22 Exploded-View Diagram Dash Board X209D OR Source Unit X209-WRA-OR Radio Dash Bezel Side Mounting Brackets Factory Vents and Window Switch Pod (not included) Bezel Wiring Diagram 20 Pin Harness (Connect to X209D OR) 8 Pin Harness...
  • Page 14 Jeep Wrangler WRANGLER ˜ 14/22 X209-WRA-OR Wiring Diagram AMPLIFIED VEHICLES To Vehicle Connectors WARNING! Failure to follow this procedure will result in no audio from Navigation and OEM Audio Power/Speaker To OBDII Connector Bluetooth sources. 20-pin Gray 16-pin Green Connector...
  • Page 15 Jeep Wrangler WRANGLER ˜ 15/22 X209-WRA-OR With Optional HDMI Interface Wiring Diagram X209D OR - Source Unit DISP. OUT CAN I/F HDMI IN HDMI OUT To Optional Display SXM/DAB PRE OUT EXT. KEY W.REMOTE POWER ANTENNA KCX-630HD (Optional) HDMI Selector Interface...
  • Page 16 Jeep Wrangler WRANGLER ˜ 16/22 X209-WRA-OR Wiring Diagram To SiriusXM Tuner Vehicle Antenna GPS Antenna (Included) SPEED SENSOR To the vehicle speed pulse line (Green/White) CAMERA To Front, Rear or Side camera IDATALINK I/F To iDataLink module To AUX output device or iDataLink...
  • Page 17 Jeep Wrangler WRANGLER ˜ 17/22 Wire Harness Pin Outs Remote Harness Radio Main Cam Aux Data Blue 22AWG Red 22AWG Red 20AWG Blue 22AWG Black 22AWG Blue/White 22AWG White 22AWG Orange/White 22AWG Red/White 22AWG White 22AWG Yellow/Blue 22AWG Blue 22AWG Brown 22AWG Black 22AWG Purple 20AWG...
  • Page 18 This connection goes to the direct video input of the head unit through the adapter. If you do not make this connection there will be no video to your X209-WRA-OR X209D OR Source Unit CAN I/F SXM/DAB PRE OUT EXT. KEY...
  • Page 19 Jeep Wrangler WRANGLER ˜ 19/22 Connection Of KAC-001 KAC-001 Side View POWER RESET HEADUNIT OUTPUT UPDATE Reset USB port Button (Firmware updates only) Output 1 (Purple) BATT* (Yellow) Output 2 (White/Red) ACC (Red) Output 3 (Brown) GND (Black) Output 4 (Blue) *Fuse Rating: 7A Output 5 (Green) Output 6 (Pink)
  • Page 20 Jeep Wrangler WRANGLER ˜ 20/22 Steering Wheel Configuration Factory Option Phone Voice Seek Up Volume Up Source Preset Up Volume Down Seek Down Button Press Once Press And Hold Volume Up Volume + None Volume Down Volume - None Seek Up Track + None Seek Down...
  • Page 21: Troubleshooting Guide

    ˜ 21/22 Set Up Guide Turn the vehicle’s Ignition switch to ACC. Turn ON the X209-WRA-OR by pressing any key. Select the user language and press OK. Engage and release the parking brake twice. If a camera is present, turn it ON in the system menu. (MENU/SETUP/SYSTEM/CAMERA/CAMERA SELECT).
  • Page 22 Jeep Wrangler WRANGLER ˜ 22/22 Troubleshooting Guide Continued Symptom Possible Cause Remedy Incorrect serial number was used Flash Maestro with correct serial number. when flashing maestro. 4 pin Maestro data cable is Check for proper connection or disconnected or damaged. disconnected pins.
