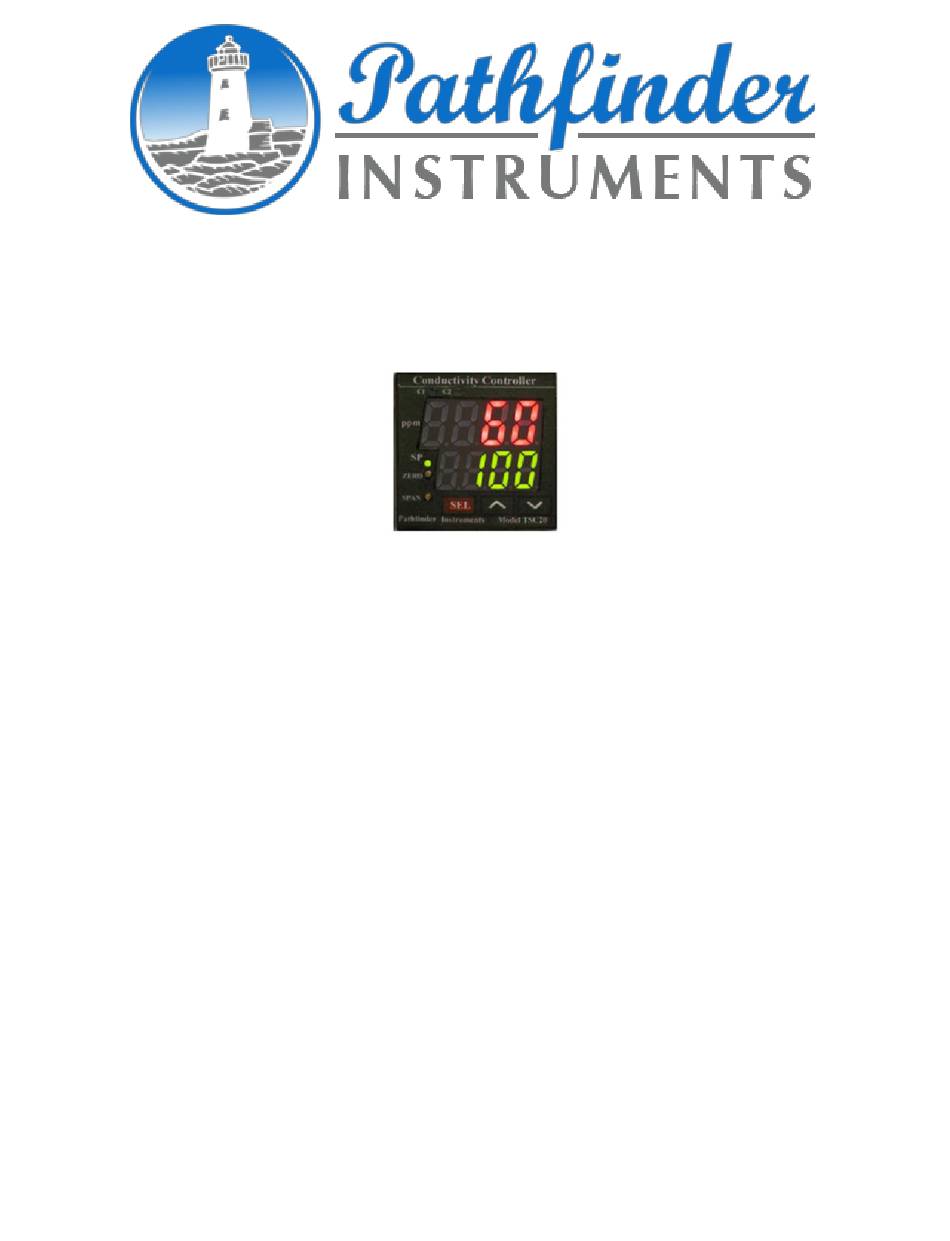

PATHFINDER TSC-20A Operating Manual

Pathfinder Instruments Model TSC-20A
Conductivity Controller with Alarm
OPERATING MANUAL

General Description

The Model, TSC-20-A is a microprocessor programmable controller that accepts a conductivity electrode as an input. Outputs are;
one on-off relay;3A mechanical contacts and one Alarm relay, 2A contact. The output can be programmed to operate above or
below the set point; and the alarm is programmed as an absolute value high alarm. The power source is from100 to 240 VAC, 50/
60Hz free voltage there is no need to change connections for different voltages. The controller is programmable from the front
panel via 3 switches, and calibration is done using two front panel adjustments pots. The front panel is a 1/16 DIN, NEMA 4X rated
and mounting hardware is provided. CRU, RU&CE approvals are standard

Specifications

Measuring Scale Ranges: ...............................10uS to 75mS
Probe Constant: ..............................................K= 0.01, K=0.1, K=1.0, K=1.5, K=2.3, K=10
Accuracy .......................................................± 2% of span
Output Relay .................................................S. P. D. T. Relay 3 Amp @ 115VAC, Resistive Load
Alarm Relay....................................................S. P. S. T. Relay 2 Amp @ 115VAC, Resistive Load
Power.............................................................100 to 240 VACS 50/60 Hz @ 3Watts
Operating temperature range .....................-10 to +50ºC
Storage temperature range .........................-20 to +60ºC
Display ...........................................................4 Digit red LEDs (Conductivity) 4 Digit green LED's (Set Point)
Dimensions ....................................................48 x 48 x 78.8 mm (1/16 DIN)
Memory .........................................................Non – volatile
Page1

Installation

A. First Things
Upon receiving your order of TSC-20-A controller check to verify that the part number and quantities agree with the enclosed
