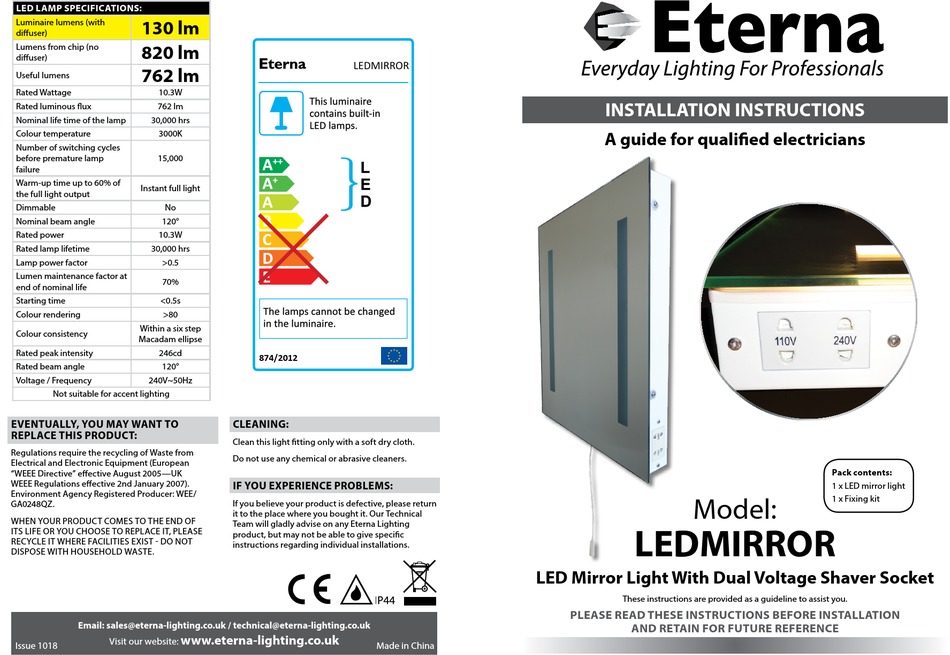

Eterna LEDMIRROR Installation Instructions

LED LAMP SPECIFICATIONS:
130 lm
Luminaire lumens (with
diffuser)
820 lm
Lumens from chip (no
diffuser)
762 lm
Useful lumens
Rated Wattage 10.3W
Rated luminous flux 762 lm
Nominal life time of the lamp 30,000 hrs
Colour temperature 3000K
Number of switching cycles
before premature lamp 15,000
failure
Warm-up time up to 60% of
Instant full light
the full light output
Dimmable No
Nominal beam angle 120°
Rated power 10.3W
Rated lamp lifetime 30,000 hrs
Lamp power factor >0.5
Lumen maintenance factor at
70%
end of nominal life
Starting time <0.5s
Colour rendering >80
Within a six step
Colour consistency
Macadam ellipse
Rated peak intensity 246cd
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
Not suitable for accent lighting
EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
"WEEE Directive" effective August 2005—UK
WEEE Regulations effective 2nd January 2007).
Environment Agency Registered Producer: WEE/
GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF
ITS LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE
RECYCLE IT WHERE FACILITIES EXIST - DO NOT
DISPOSE WITH HOUSEHOLD WASTE.
Email: sales@eterna-lighting.co.uk / technical@eterna-lighting.co.uk
www.eterna-lighting.co.uk
Visit our website:
Issue 1018
MODELNO.
LEDMIRROR
874/2012
CLEANING:
Clean this light fitting only with a soft dry cloth.
Do not use any chemical or abrasive cleaners.
IF YOU EXPERIENCE PROBLEMS:
If you believe your product is defective, please return
it to the place where you bought it. Our Technical
Team will gladly advise on any Eterna Lighting
product, but may not be able to give specific
instructions regarding individual installations.
Made in China
INSTALLATION INSTRUCTIONS
A guide for qualified electricians
Model:
LEDMIRROR
LED Mirror Light With Dual Voltage Shaver Socket
These instructions are provided as a guideline to assist you.
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
AND RETAIN FOR FUTURE REFERENCE
Pack contents:
1 x LED mirror light
1 x Fixing kit
