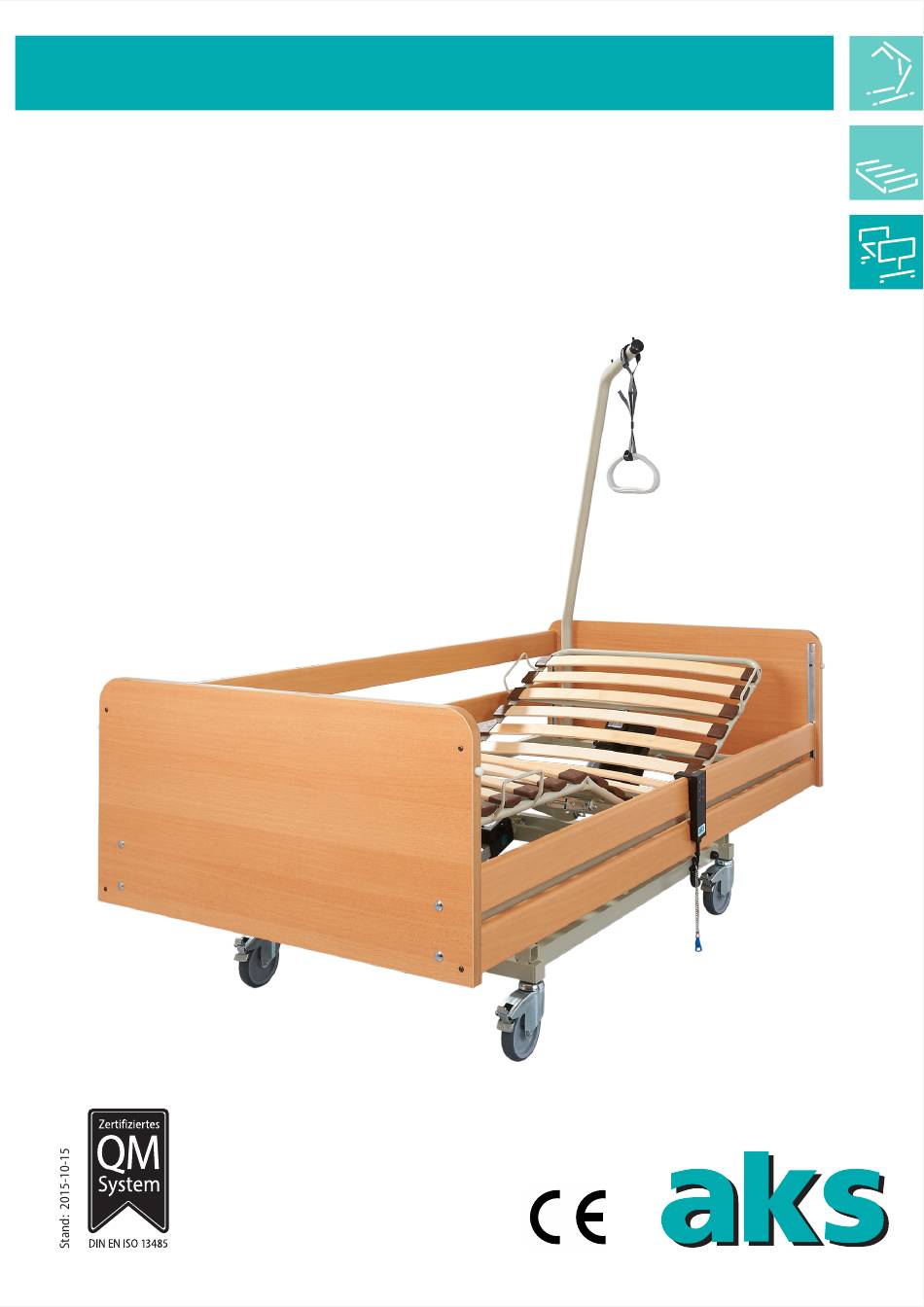

Introduction The aks‑S4 homecare bed meets the requirements of a modern homecare bed and can ideally be integrated into the existing residential environment due to its wood decor. It has been tested for the application cases 3 and 4 of the standard EN 60601‑2‑52. This includes use in domestic care and in old people’s and care homes.
Intended purpose The aks‑S4 homecare bed is an active Class I medical product according to EU Council Directive 93/42/EC, Appendix IX. The intended use of the aks‑S4 homecare bed is sleeping / resting. It is used for alleviation of or compensation for an injury, disability or illness and for making the working conditions easier for the carers.
General safety instructions • Only use the homecare bed in accordance with its intended purpose, the requirements of the medical products law and all related legal regulations, the occupational health and safety and accident prevention regulations as well as the generally recognised rules of standard engineering practice.
Page 6
• Faults due to the use of mobile communications devices cannot be completely ruled out. Therefore, maintain a safety distance of at least 3.3 m to guarantee reliable operation of the homecare bed. ‑ See position paper of the German Federal Institute for Drugs and Medical Products (BfArM) (reference No.: 9 / 0508) ‑...
Scope of delivery The homecare bed has already been inspected at the factory for freedom from defects and completeness. Nevertheless, check the product immediately after receipt for possible transport damage. After removing all individual parts, check the completeness of the scope of delivery. If all individual parts of the scope of delivery are not present, contact your authorised dealer.
Product overview Handle with strap Uplifter Side grills Back part Thigh and lower leg part Back part drive with controller Mirror panel Mains adapter Manual control unit Scissor lift drive Scissor lift Castor with locking device Figure 11 Page 9...
Assembly In addition to the supplied 6 mm Allen key, you also need a Phillips screwdriver and a side cutter for the assembly. If you have established based on Chapter 4 Scope of delivery that the delivery is complete and not damaged, perform the installation in the following steps: Place the scissor lift with the castors on the floor and brake the rear castors (Figure 12).
Page 11
Let one end of the head support rest on the scissor arm (Figure 15). Move the foot support forwards and at the same time attach the C‑rails to the castors on the scissor arm. When both C‑rails are on the castors, move the foot support so far until the cross member (see arrow) comes against the scissor lift drive.
Page 12
Push the controller onto the back part drive and secure it against slipping sideways using the fixing screw (Figure 19). Press the strain relief of the power cable into the holder on the head side (Figure 20). Figure 19 Figure 20 Connect the manual control unit to the controller and install the strain relief (Figure 21).
Page 13
Do not operate the controller with open sockets. There is a risk of short circuit or fire in the event of ingress of moisture / liquid. Fasten the connector cover strip to the controller (Figure 23). Insert a mirror panel in the longitudinal tubes at the foot end of the lying area (Figure 24).
Page 14
Now lightly attach the lower side grill bars to the guide pins of the side grill slider (Figure 27). Insert the mirror panel further until you can also attach the upper side grill bars to the guide pins. Then insert the mirror panel as far as the stop and fasten it using two Allen bolts. Check the side grill for function.
Commissioning Before the commissioning and after every new assembly of the homecare bed, the safe condition of the homecare bed must be established using the maintenance information in Chapter 19 Maintenance. An inspection according to EN 62353 must be performed for this in order to discover possible damage or defects which have occurred during the transport or the installation at the operating site.
Operation Castors The homecare bed is fitted with 4 individually lockable castors. The individual locking enables you to brake each castor individually and secure the homecare bed against accidental rolling away. Operate the foot pedal in the corresponding position to release and set the brake (Figure 29 + 30).
Page 17
Strictly observe the following safety instructions when using the side grills: • Check the side grills for correct locking after every raising. • The side grill only provides protection against falling out if it is raised on both sides (head and foot) and if the lying area elements such as back, thigh and lower leg part are in the horizontal position •...
Page 18
Lying area The lying area of the aks‑S4 homecare bed can be adjusted electrically. It consists of several elements which are shown in Figure 32. The following adjustments for the lying area can be made: Height adjustment of the lying area The lying area can be continuously adjusted for height from 40 cm to 90 cm.
Page 19
Manual control unit Sufficient clearance for the movement must be ensured when operating the electrical adjusters. Adjustment of the Neither objects nor limbs must be located in the back part adjustment range. Adjustment of the In order to perform the electrically powered...
Page 20
Lock function The manual control unit is equipped with a lock function, i.e. the functions of the manual control unit can be blocked with the associated key. Insert the key (Figure 35) in the rotary switch on the rear side of the manual control unit (Figure 36). If an open padlock can be seen in the view window of the key (Figure 37), the manual control unit is unlocked.
Page 21
Unload the back part before the emergency lowering. The first user slightly raises the back part at the tube bracket of the back part and holds it in this position. The second user folds down the safety bracket of the tube clip and pulls this out (Figure 38) (the drive is disconnected and swivels away downwards).
Patient transport The homecare bed is also basically suitable for the transport of patients. Ensure before the patient transport that the homecare bed is in its lowest position and that the lying area elements such as back part, thigh part and leg part are lowered. Pull up the side grills until they audibly engage. Use the transport lock during the transport in order to prevent the risk of driving over the 29 Volt power cable and the falling down of the mains adapter.
Accessories / combination Only original aks accessory parts must be used as accessories because these are tested by ourselves and thus guarantee faultless and safe functioning. Combinations which have not been approved by aks can cause hazards. Accessories: •...
Troubleshooting / fault clearance There is not a defect in the homecare bed for all malfunctions. Table 02 provides assistance for rectifying malfunctions. Repairs to and measurements of the electrical components must only be performed by qualified and authorised electricians.
Care / cleaning For cleaning and disinfection, the homecare bed must always be disconnected from the power supply by unplugging the mains adapter from the mains power socket in order to prevent risk of electric shock, fire hazard and functional failure. The controller is only protected against spray water when connectors or dummy plugs are inserted.
Storage If the homecare bed should be stored, it must be covered with a film or a sheet as protection against dust. In the event of longer storage or non‑use, remove the 9 Volt block battery as a precaution.
Warranty The homecare bed is distinguished by its long service life and high reliability. Should a fault occur and the aks homecare bed no longer functions, check the fault using Table 05 in Chapter 11 Troubleshooting / fault clearance. If the fault cannot be cleared in this way, contact your authorised dealer.
Maintenance 19.1 General maintenance instructions The service life of the homecare bed is basically influenced by the handling. In order to ensure safe operation, a visual inspection and functional check with electrical inspection afterwards must be carried out at least annually by suitable qualified personnel.
Page 29
19.2 Replacing the battery The natural service life of the 9 Volt block battery is limited to approx. 3 years. Note the expiry date. The 9 Volt block battery must be replaced after an emergency lowering has been performed and operation in the case of power failure.
Page 30
19.3 Maintenance schedule Service the bed at least annually, before every reuse and after every repair. Maintenance schedule for aks-S4 with SMPS Pos. Check point Check of the basic requirements Appropriate and safe use (no collision points or objects above or under the bed) Permitted accessories or equipment combination No additional power sockets, e.g.
Page 31
Drives (traverse complete adjustment ranges using the manual control unit, easy running, speed, switch off in both directions by limit switch, power consumption, no unusual noises) All buttons of the manual control unit are functional during performance of the adjustment functions...
Product labelling Product labelling Rating plate Position: foot support (inside) Date of manufacture Position: head support, foot support, scissor lift, back part drive, thigh part drive, scissor lift drive uplifter Rating plate Position: uplifter Warning sign for: ‑ removable side grill ‑...
Page 33
Explanation of the symbols Protection class II against electric shock Type B Attention! Observe instructions for use only suitable for dry indoor areas WEEE marking (the device must not be disposed of with the domestic waste) This product complies with the basic requirements of the Medical Products Directive 93/42/EC.
Technical Data Technical Data Classification Class I medical product according to Appendix IX of the MDD Lying area nominal dimensions: 90 x 200 cm External dimensions: 108 x 205 cm Height adjustment: 41 to 91 cm Back part adjustment: 0°...
Page 35
Enter the serial number of your homecare bed here: Serial number: _____________________________ Enter the year of manufacture of your homecare bed here: Year of manufacture: _____________________________ Enter the telephone number and name of the contact person of your authorised dealer here:...
Page 36
Aktuelle Krankenpfl ege Systeme GmbH Antwerpener Straße 6 D-53842 Troisdorf � +49(0)2241/9474-0 � +49(0)2241/9474-88 aks@aks.de � � www.aks.de Reprints whether in whole or in part are only allowed with the previous permission of the publisher. All rights reserved. We also reserve the right to make technical changes.
