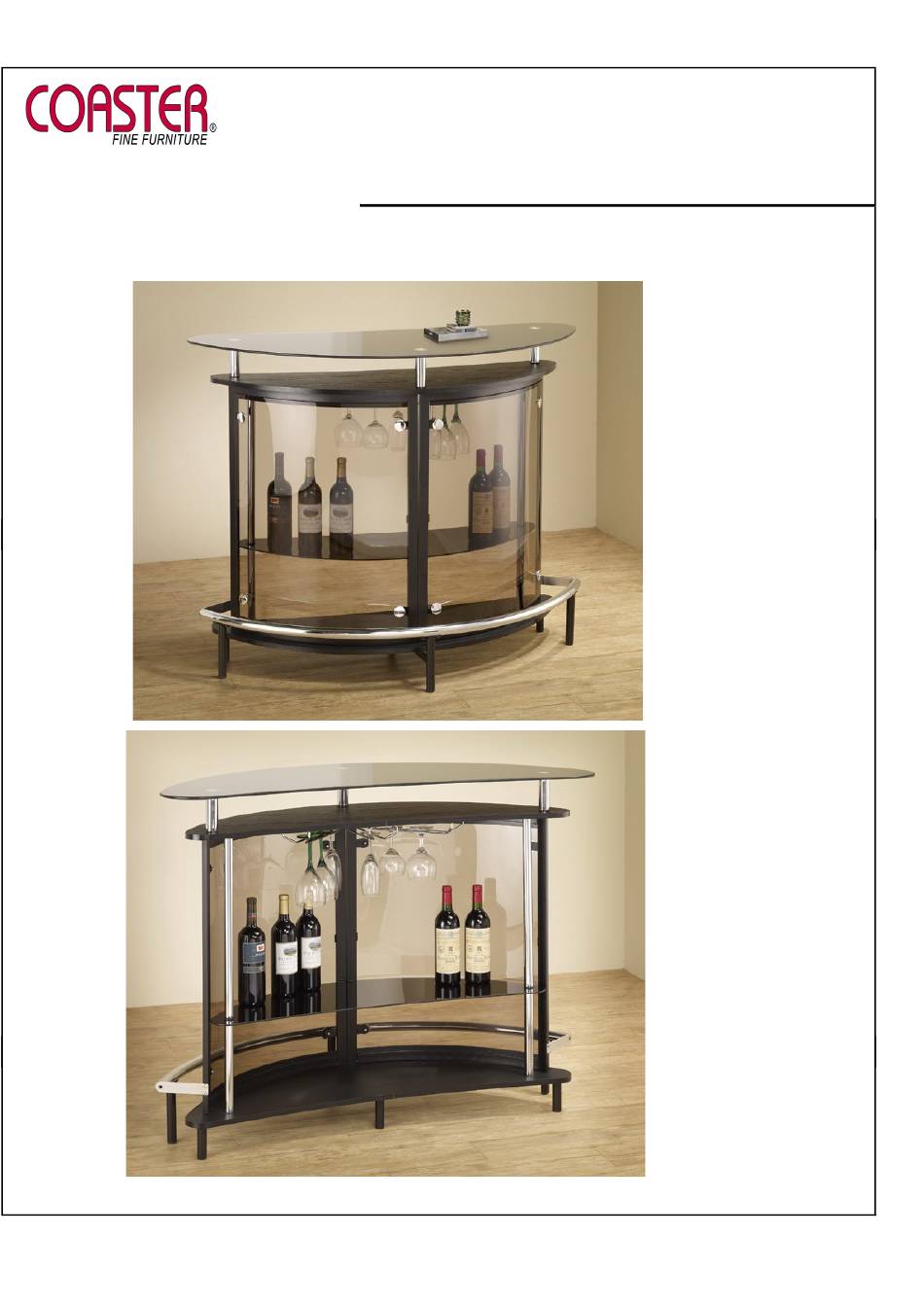

- Page 1 101065 BAR TABLE ASSEMBLY INSTRUCTION COASTER FINE FURNITURE www.coastercompany.com www.coastercompany.com page 1 of 7 2012/06/13...
-
Page 2: Assembly Instruction
ASSEMBLY INSTRUCION ITEM: 101065 ASSEMBLY INSTRUCTION ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attaced instructions in the same sequence as numbered to assure fast & easy assembly. - Page 3 ITEM: 101065 ASSEMBLY INSTRUCTION ASSEMBLY INSTRUCTION ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
- Page 4 ITEM: 101065 ASSEMBLY INSTRUCTION www.coastercompany.com page 4 of 7...
- Page 5 ITEM: 101065 ASSEMBLY INSTRUCTION www.coastercompany.com page 5 of 7...
- Page 6 ITEM: 101065 ASSEMBLY INSTRUCTION www.coastercompany.com page 6 of 7...
- Page 7 ASSEMBLY INSTRCTION STEP1:Connect Right Front(A)and Left Front(B)using Connection Piece(I) and Bolt(4). STEP2:Screw Right Front(A)and Left front(B)onto Shelf wood(N)using Small allen bolt(3). Screw Large bolt(5)onto Shelf wood(N), then screw Large cross bar(G) onto it. Connect Shelf glass(M)with Large cross bar(G)using Large bolt(5) and with(A)and(B)using Glass bolt(7),Screw Shelf cross bar(H)onto Shelf glass(M),then connect Bottom wood(O)onto(A)and(B)and Shelf cross bar(H)using Medium allen bolt(2).
