Ferodo DS4 Installation Manual

BRAKE FLUID
TOPPING UP AND BLEEDING
• Top up brake fl uid reservoir to the max. level.
• Use a transparent pipe on brake caliper bleeding screw
respecting the following bleeding sequence:
1. Right hand rear wheel
2. Le hand rear wheel
3. Right hand front wheel
4. Le hand front wheel
• Press brake pedal slowly to pressurise the braking circuit.
• Keep brake pedal pressed.
• Open bleeding screw (brake pedal lowers and
system pressure decreases).
BRAKE FLUID
Product DOT 4
Capacity 1.0 litre
Maintenance Replacement and bleeding
intervals every 2 years
FERODO PART NUMBERS
FDB4224
Brake Pad
Length (mm) 103.8
Width (mm) 56.1
Thickness (mm)* 17.2
Thickness min (mm)* 8.00
* Backplate included
DDF1735
Brake Disc
Diameter (mm) 268.00
Thickness (mm) 12.00
Min. thickness (mm) 10.00
Note: with bearing and ABS ring
The Ferodo brand is a registered trademark of
• Keep pedal pressed all the way down and close
bleeding screw.
• Let pedal move up.
• Wait for 2 seconds to make brake fl uid reach brake
master cylinder.
• Repeat the operation until brake fl uid is clean
and with no air bubbles.
BRAKE FLUID DOT4
FBX050 500 ml
FBX100 1 lt
FBX500 5 lt
FBX2000 20 lt
REAR BRAKES
CITROËN
DS4
(MODEL B7)
REAR BRAKES
TRW BRAKING SYSTEM WITH ELECTRIC PARKING BRAKE

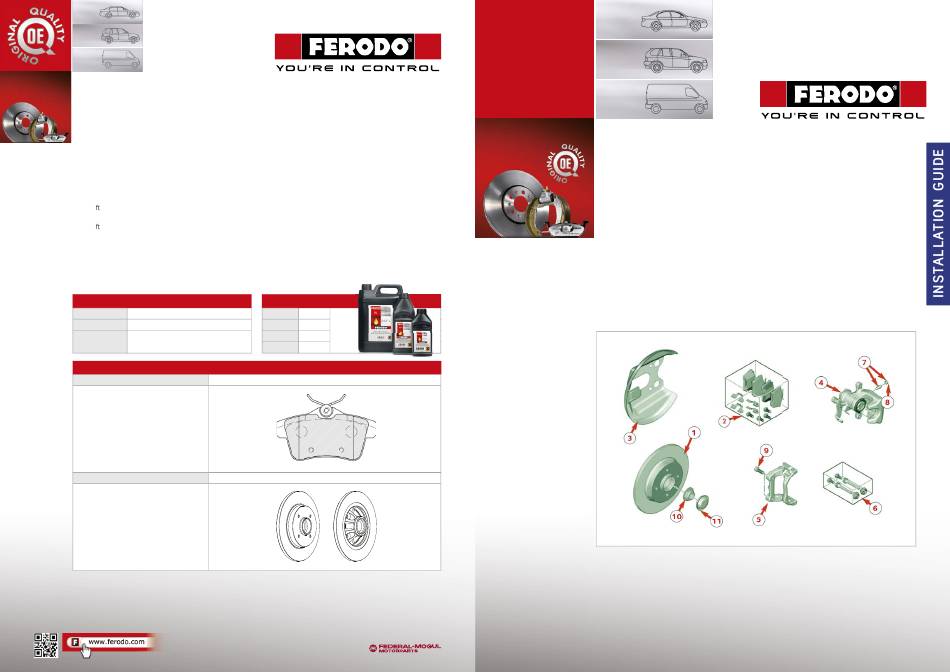

REAR BRAKE ASSEMBLY
1. Rear brake disc
2. Rear brake pads
3. Disc guard cover
4. Rear brake caliper
5. Brake caliper mounting bracket
6. Brake caliper slide pins
7. Bleeding screw
8. Caliper bleed screw cover
9. Caliper bracket mounting bolts
10. Bearing hub nut
11. Bearing hub cap

