ENHANCED VISION Mojo User Manual

Digital monocular
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Users Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mojo and is the answer not in the manual?

Questions and answers

Summary of Contents for ENHANCED VISION Mojo

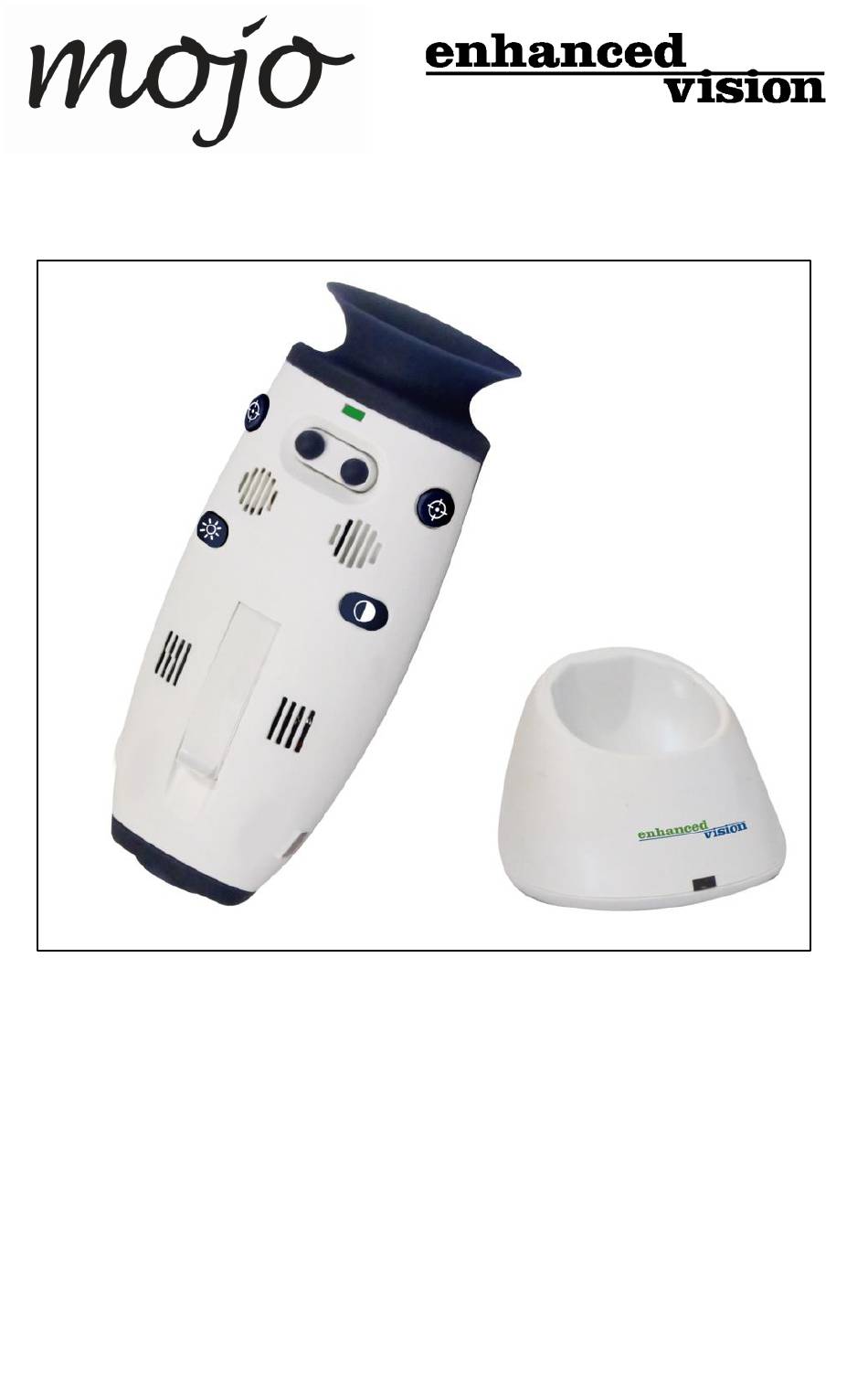

  • Page 1 Users Manual...
  • Page 2 Product enhancements and revisions are an integral part of what we do here at Enhanced Vision. Please visit – http://www.enhancedvision.com/low-vision-product- line.html and select your Enhanced Vision Product. You will find the most up-to-date version of the User Manual at the bottom of the page.
  • Page 3 FCC COMPLIANCE NOTICE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 4 IMPORTANT SAFETY INFORMATION: READ THE FOLLOWING PRIOR TO ANY USE OF THE MOJO PRODUCT. CAUTION: THIS MOJO PRODUCT CONTAINS STRONG MAGNETS AND CANNOT BE USED BY ANY PERSON HAVING A PACEMAKER. Thank you for your purchase of the MOJO product. Safety Warning...
  • Page 5 If you refuse to accept these terms and conditions in full, then you must return the MOJO product to the place of purchase in its original packaging in new condition within 30 days from the date of purchase, and you will receive a full refund from the place of purchase.

  • Page 6: Table Of Contents

    Table of Contents Important Safety Precautions......7 MoJo MoJo Package Contents & Controls... 8-11 MoJo Transportation and Care……………….. 12 MoJo Power and LED Indicators....14-16 Using the MoJo ..........17-20 CCTV Docking Stand........21-24 Product Info & Language......25 Troubleshooting............26 Specifications...........

  • Page 7: Important Safety Precautions

    Please refer all service to an authorized repair facility.  Do not use the MoJo in, near, or around water. The MoJo is not designed to offer protection against contact with liquids of any kind.

  • Page 8: Mojo Package Contents & Controls

    PACKAGE CONTENTS & CONTROLS Please refer to the illustrations on the following pages to identify the package contents and controls of your MoJo. In addition to this users guide, you’ll find the following items inside the box: Please note the locations of the following Package Contents included MoJo listed on page 8 and 9: 1.
  • Page 9 PACKAGE CONTENTS Package Contents & Controls...
  • Page 10 MOJO CONTROLS Please note the names and descriptions of the following controls on your MoJo listed on page  Status LED: The status indicator light is useful for conveying the current Power State, Battery Level and Charge Condition of your MoJo.
  • Page 11 MOJO CONTROLS Status LED Find Find Zoom Brightness Color Mode Power Docking Stand Access Port MoJo Bottom View MoJo Top View Package Contents & Controls...

  • Page 12: Mojo Transportation And Care

    Green Power button located on the underside of the device.  If needed, clean the surface of the MoJo with a soft slightly damp cloth or an electrostatic dusting wipe. DO NOT use liquid cleaners on the plastic surfaces.
  • Page 13 MOJO POWER AND LED STATUS Your MoJo features an internal battery that is recharged by placing it in the MoJo Charging Stand. Ensure the charging stand is connected to wall power and that the LED is blinking (indicating it is charging) the Status LED will be Solid Blue when battery is full.

  • Page 14: Mojo Power And Led Indicators

    Recommend you recharge your device. Battery level is Critical. Device will power down. Connecting the AC adaptor/power supply Use the following procedure to connect the MoJo to the AC adaptor/power supply 1. Connect included Adaptor/power supply to the MoJo Charging Stand connector port.
  • Page 15  It is recommended that if you are not planning on using your MoJo with 20-30 minutes it is better for you to Power the device OFF (Press and Hold Power button for 5 seconds) or place the device in Standby (Press Power button quickly or less than 2 seconds).
  • Page 16 TURNING THE POWER ON/OFF Use the following procedure to turn the power of your MoJo On or Off or set the device to Standby: Find the Green Power button on the bottom of the unit. (See Figure 1) 1. ON: ‘Press and hold’ the Green Power button for 1 second or more to turn the MoJo on.

  • Page 17: Using The Mojo

    USING THE MOJO In order to use your MoJo you should ensure that the battery is fully charged. Then turn the device ON via Power Button. Place the Eyepiece against your eye and look through it. You may change the magnification level, adjust colors and brightness to suit your visual needs.
  • Page 18 3. If you are holding MoJo to your eye Press the Left Hand Zoom Button to Decrease Magnification. Note: There are 16 ‘fixed’ zoom levels on the MoJo. Pressing and Holding the Increase or Decrease ZOOM button for more than 1 second activates a ‘continuous zoom’...
  • Page 19 Viewing Modes: MoJo comes equipped with different built in Enhanced Color Modes. By pressing the Mode button (See Figure 1) you can cycle through the 7 pre-set viewing modes. • Full Color Image • Black and White Image Figure 1 •...

  • Page 20: Using The Mojo

    The dual buttons on either side allows convenient access regardless of which hand or eye you use the MoJo with. Note: You must press and hold to fully engage the Find/Locate function and then release your button press to return to your previous zoom level.

  • Page 21: Cctv Docking Stand

    Connect the power cord to an available electrical outlet (See Figure 2 Connecting to an Outlet). Connect the other end of the power supply to the rear of the MoJo Docking Station where it is labeled “19VDC” (Also Shown Figure 3 Rear Panel Connections).
  • Page 22 Placing MoJo into the Docking Stand: After removing the MoJo Lanyard and connecting the device to power you are now ready to place the MoJo in the docking stand. Please refer to Figure 1 for correct placement and orientation. Please make sure the docking stand port is facing towards the stand chassis during insertion.
  • Page 23 Zoom/Magnification Level. 3. Power Button- When you press this button it turns the MoJo Monitor On and Off. As long as the device is connected to power the MoJo will be charging when connected. 4. Ejection Button- Pressing this button decouples the MoJo from the CCTV Docking station making it ready for portable use.
  • Page 24 Using The MoJo CCTV: When you have your MoJo Docked you should see a live camera image appear on the monitor. You can utilize any of the controls listed on the previous page along with the X/Y Table to adjust the location and visual properties of your material.

  • Page 25: Product Info & Language

    The Languages option allows you to change the On Screen Display Messages language 1. Press and hold the Brightness Button > 7 seconds. 2. This should bring up the MoJo Menu where you will see three options: a. Exit: Exits the Menu b. Languages: Lists the available device Languages.

  • Page 26: Troubleshooting

    Bright lighting (or direct sunlight) may produce shadows and/or reduce visibility. Try moving to a more shaded area to improve image quality. • Adjust the distance of the MoJo from your reading or viewing material. • Try selecting different viewing modes to improve image quality.

  • Page 27: Specifications

    • Lightweight, portable design • 7 selectable viewing modes • 16 levels of magnification for MoJo Display: • The micro LCD display appears to be comparable to a 42” diagonal widescreen display from a distance of 6 ½ ft (2meters).
  • Page 28 Estimated Usage Times (using rechargeable batteries): (Fully charged battery)** ~ 2.5 to 3 hour battery life (depending on LCD Brightness setting) (rechargeable battery included) ~ 500-1000 charge life cycles MoJo Charging Stand Wall adapter: • UL/CE rated • Input: 100-240VAC 50/60Hz 0.8A •...

  • Page 29: Warranty Statement

    Enhanced Vision MoJo Warranty Policy Enhanced Vision products are designed to give you the highest quality image, convenient features, ease of use and reliable service. The MoJo has been inspected and tested prior to shipping. Enhanced Vision warrants the MoJo against defects in material and workmanship under normal use for two (2) years from the date of original purchase.
  • Page 30 Enhanced Vision representative or the Enhanced Vision warranty service center. If warranty service is required, please contact Enhanced Vision at (800) 440-9476 Monday through Friday, between 8 a.m. and 5 p.m. Pacific Standard Time (PST) to request a return authorization number.

  • Page 31: Other Enhanced Vision Products

    OTHER ENHANCED VISION PRODUCTS DaVinci Pro DaVinci Pro is a high performance desktop video magnifier (CCTV), featuring a Sony Full HD 3-in-1 camera & Full Page text-to-speech (OCR). With Full HD you will experience high definition color and contrast giving you a beautiful, crystal clear picture and vibrant colors.
  • Page 32 (CCTV), featuring a Sony® Full HD 1080p 3- in-1 camera for reading, writing, and viewing magnified images at any distance. Wi-Fi capability, and optional Full Page Text-to- Speech (OCR) makes it a perfect solution for school, work or home Other Enhanced Vision Products...

  • Page 33: Contact Information

    (With extended zoom up to 25x) Carrying Cases Convenient cases for storage and transport of all Enhanced Vision products. Power Supplies Spare power supplies for your Enhanced Vision products Stands Hands-free stand for your Enhanced Vision products Contact Information: (US Office) Phone: (714)465-3400 Fax: (714)374-1821...

  • Page 34: Notes

    NOTES ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ Notes...

  • Page 35: Notes

    NOTES ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ Notes...
  • Page 36 The MoJo video magnifier is designed to enlarge and enhance images to improve the lives of people who have low vision. The extent to which MoJo can improve the ability to see images and text depends on a person’s individual condition and level of visual impairment.
