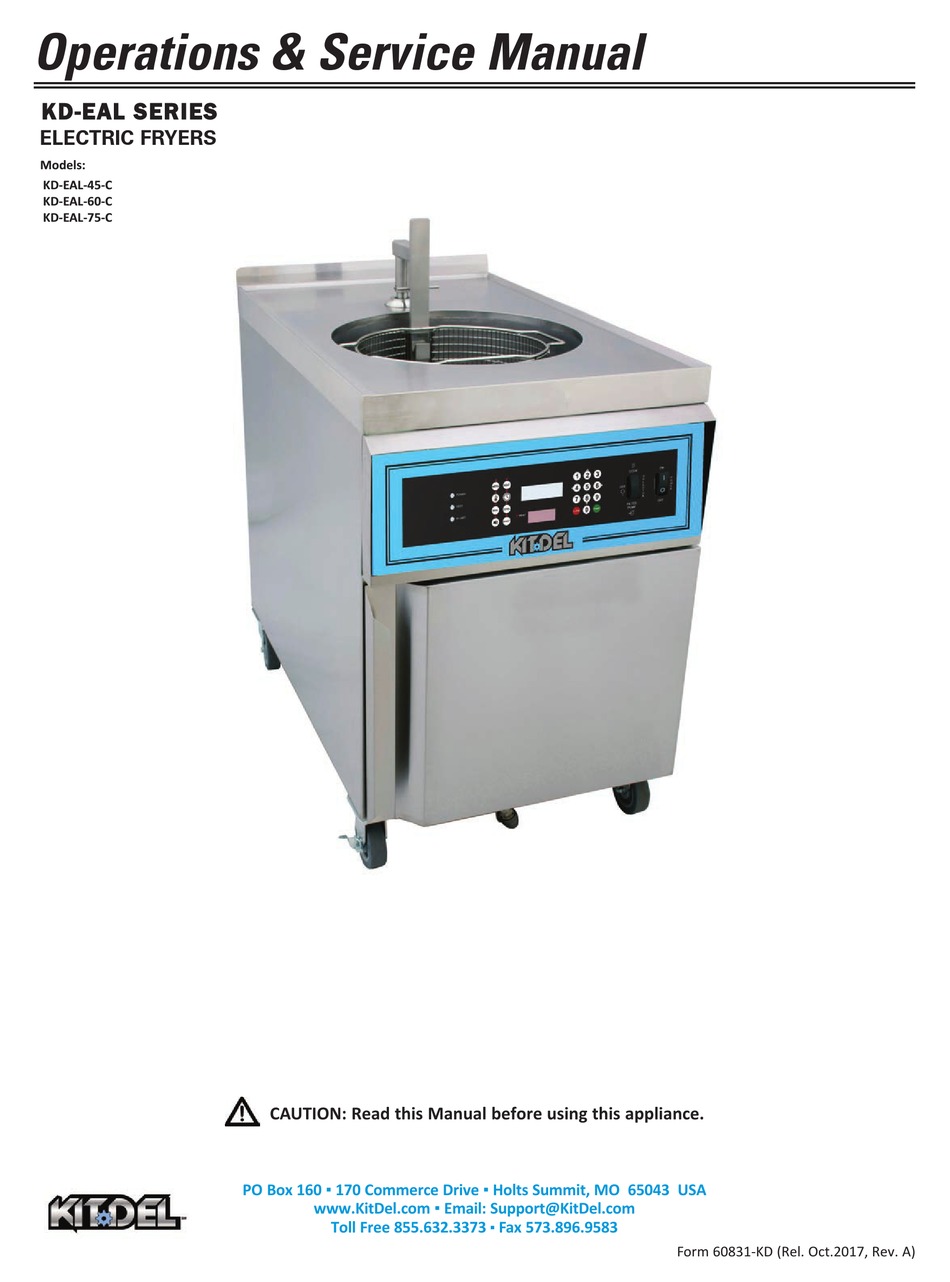

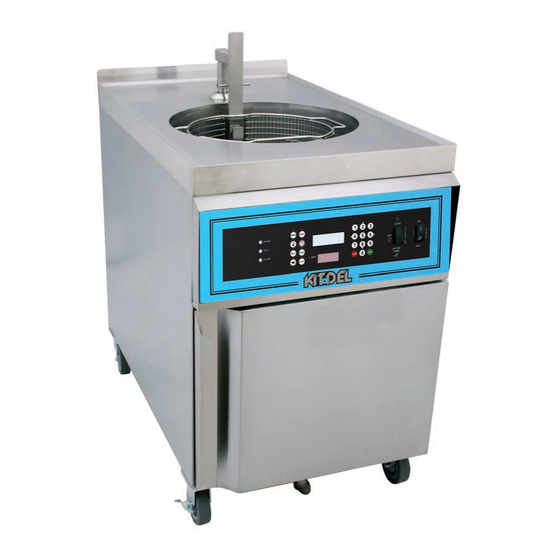

Operations & Service Manual
KD-EAL SERIES
ELECTRIC FRYERS
Models:
KD-EAL-45-C
KD-EAL-60-C
KD-EAL-75-C
CAUTION: Read this Manual before using this appliance.
PO Box 160 ▪ 170 Commerce Drive ▪ Holts Summit, MO 65043 USA
www.KitDel.com ▪ Email: Support@KitDel.com
Toll Free 855.632.3373
Fax 573.896.9583
▪
Form 60831-KD (Rel. Oct.2017, Rev. A)
