Luxlink IRGT-1501 Operating Instructions

WARRANTY
All fiber optic transmission systems, products and accessories
manufactured by Liteway, Inc. and it's subsidiaries are fully
tested prior to shipment and are warranted against defective
materials and workmanship for a period of five full years from the
date of the original shipment. Should a problem occur, a Return
Material Authorization Number (RMA) must be obtained from
Liteway Inc. at (516) 931-2800 and the item returned to Liteway,
Inc. 166 Haverford Road, Hicksville, NY 11801, USA, prepaid.
Liteway Inc. will then, at its option repair or replace the defective
item.
Liteway, Inc. maximum liability under this warranty is limited to
the cost of the defective item only. No contingent liabilities of
any kind are either assumed or implied.
Any items returned to Liteway, Inc. that have been misused,
abused, damaged, modified, connected or adjusted in any way
contrary to the instructions furnished by Liteway, Inc. or repaired
by unauthorized personnel will not be covered by this warranty.
Any non-warranty repairs required will be quoted at the current
rate for such services.
!
Important Notices
CAUTION !
AVOID DIRECT EXPOSURE TO BEAM.
All -7, -8, and -9 Models use laser diodes. These solid-state laser
diodes are located in the optical ports of these units. Laser
diodes produce invisible radiation that may be harmful to human
eyes. Never look directly into the optical port of any fiber optic
unit designed to operate with single-mode optical fiber.
NOT FOR LIFE SUPPORT SYSTEMS
Liteway, Inc. does not authorize or warrant any of its products or
accessories for use in critical life support systems or applications
of any kind.
© Copyright 2017 Liteway, Inc. 109742 Rev E

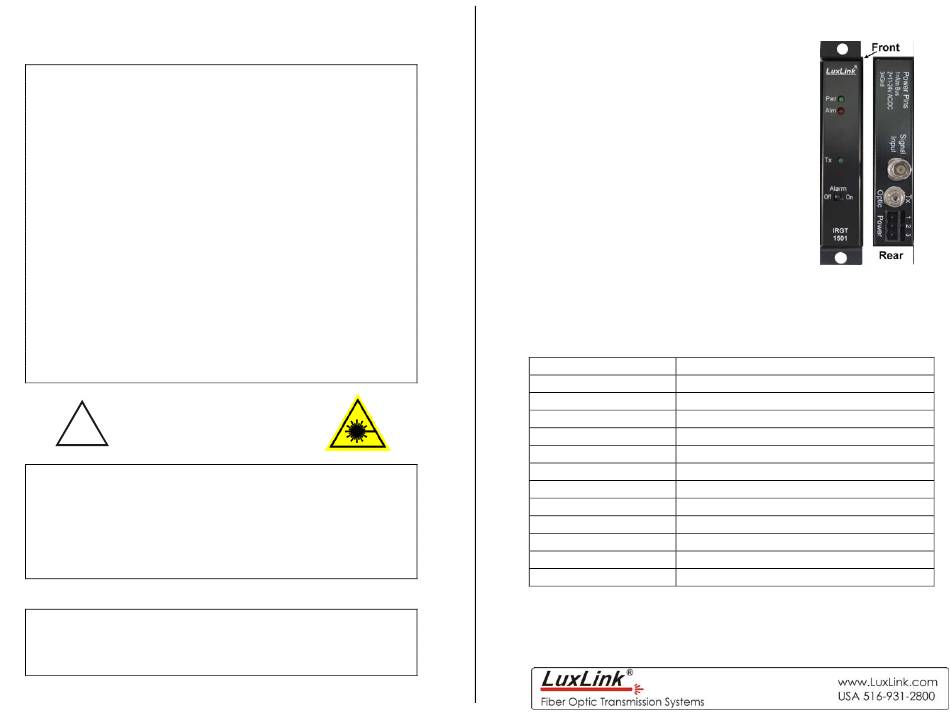

OPERATING INSTRUCTIONS

®
LuxLink
Fiber Optic Modulated IRIG
Transmission System
Models; IRGT-1501, IRGR-1501
The IRGT / IRGR-1501 system consists of the IRGT-1501
transmitter and IRGR-1501 receiver and will transmit modulated
IRIG signals from one point to another.
Technical Specifications
Signal Bandwidth 100Hz - 500KHz (+0, -3dB)
In/Out Impedance 50 ohms
In/Out Signal Level 3 volt peak to peak (60 mA maximum)
Protocols IRIG A,B,D,E,H; NASA36, IEEE-1344
Signal/Noise Ratio 60 dB/min
Linearity & THD 3% max
Operating Wavelength 850 (-1), 1310 (-3,-7), 1550 (-9)
Optical Loss Budget 0 – 12 dB
Fibers Accommodated 1 multimode (-1,-3), 1 single-mode (-7,-9)
Temperature Range -35º to +75ºC
Power Requirements 11-24 VAC/DC @150 mA
Physical Size (mm) 5.0"(127)L x 3.0"(76)D x 1.0" (25.4)W
System Delays see table at end of manual
All specifications measured with 1Km of 62.5u multimode fiber.
All specifications are subject to change without prior notice.
