Summary of Contents for Lucesco LUC302

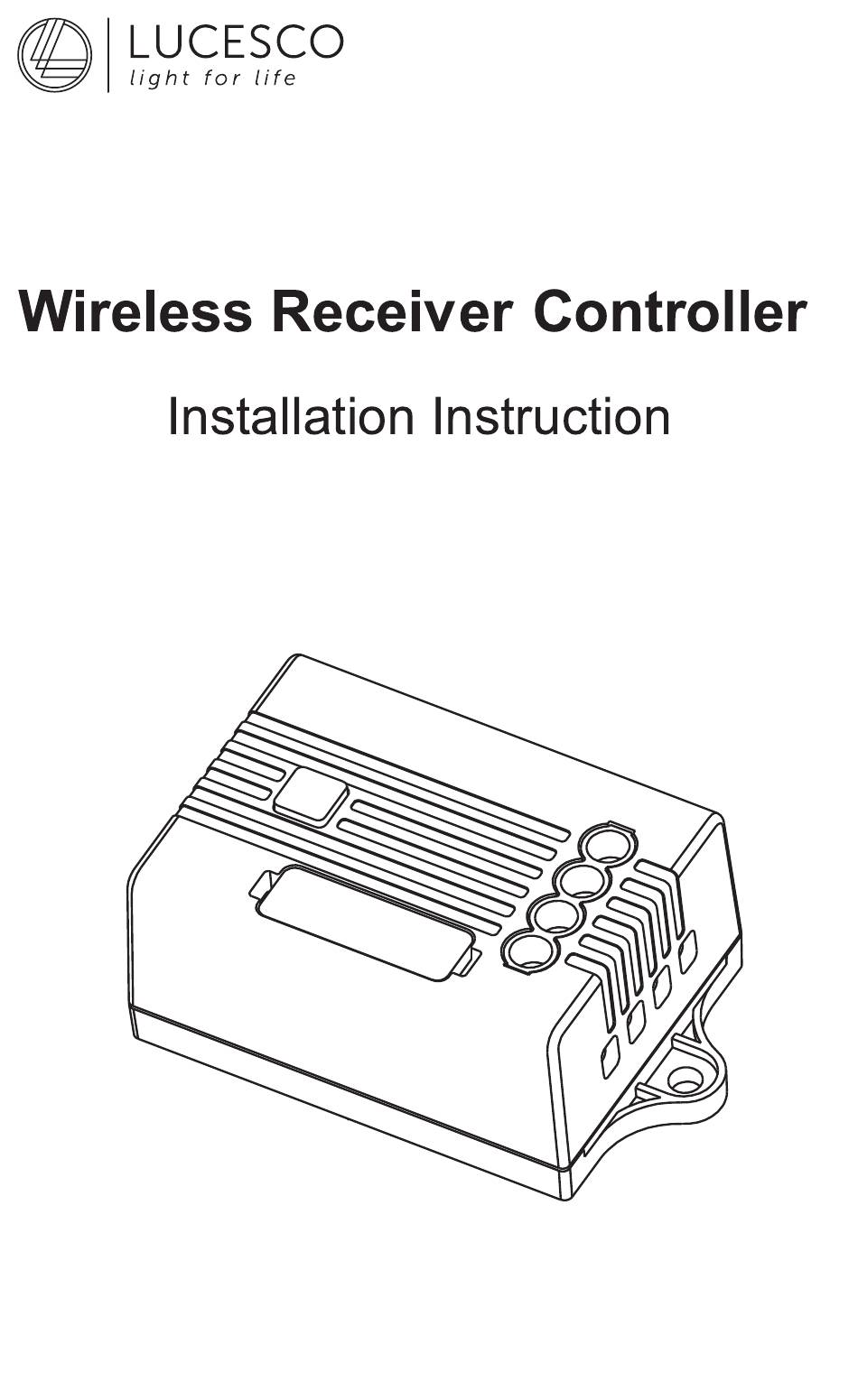

- Page 1 V1.0...
- Page 2 Before first use please read instructions carefully. Digital Instructions https://tinyurl.com/smart-controller Contents Wirelesss Receiver Controller *The components detailed in this installation instruction are for reference only. Actual components may vary slightly.
- Page 3 Models MAX 5A; Or Max Resistive 1000W (LED load 600W) MAX 5A*2; Or Max Resistive 1000W*2 (LED load 600W*2) MAX 10A; Or Max Resistive 2400W (LED load 1000W)
- Page 4 3 The Wireless receiving controller must be installed within a junction box which is securely mounted in the wall cavity or roof space as part of the electrical installation to provide complete protection of the equipment, conductor insulation and against the spread of fire. During installation, ensure antenna is mounted outside.
- Page 5 The Wireless receiving controller must be installed within a junction box which is securely mounted in the wall cavity or roof space as part of the electrical installation to provide complete protection of the equipment, conductor insulation and against the spread of fire. During installation, ensure antenna is mounted outside.
- Page 6 Wireless kinetic energy switch and wireless receiving controller can be paired with any combination. A controller can have a maximum of 10 switch keys. A switch key can pair to an unlimited number of controllers within the control distance. LUC303 dual receiver has two outputs. Each output can be independantly matched.
- Page 7 Switch Direction Pairing 1. Press and hold the button on the controller for 3 seconds. 2. When you see a slow flash (1 flash in 1 second) remove your finger. Now the controller is in pairing mode. This mode will last 10 seconds. 3.
- Page 8 The Wireless receiving controller must be installed within a junction box which is securely mounted in the wall cavity or roof space as part of the electrical installation to provide complete protection of the equipment, conductor insulation and against the spread of fire. During installation, ensure antenna is mounted outside.
