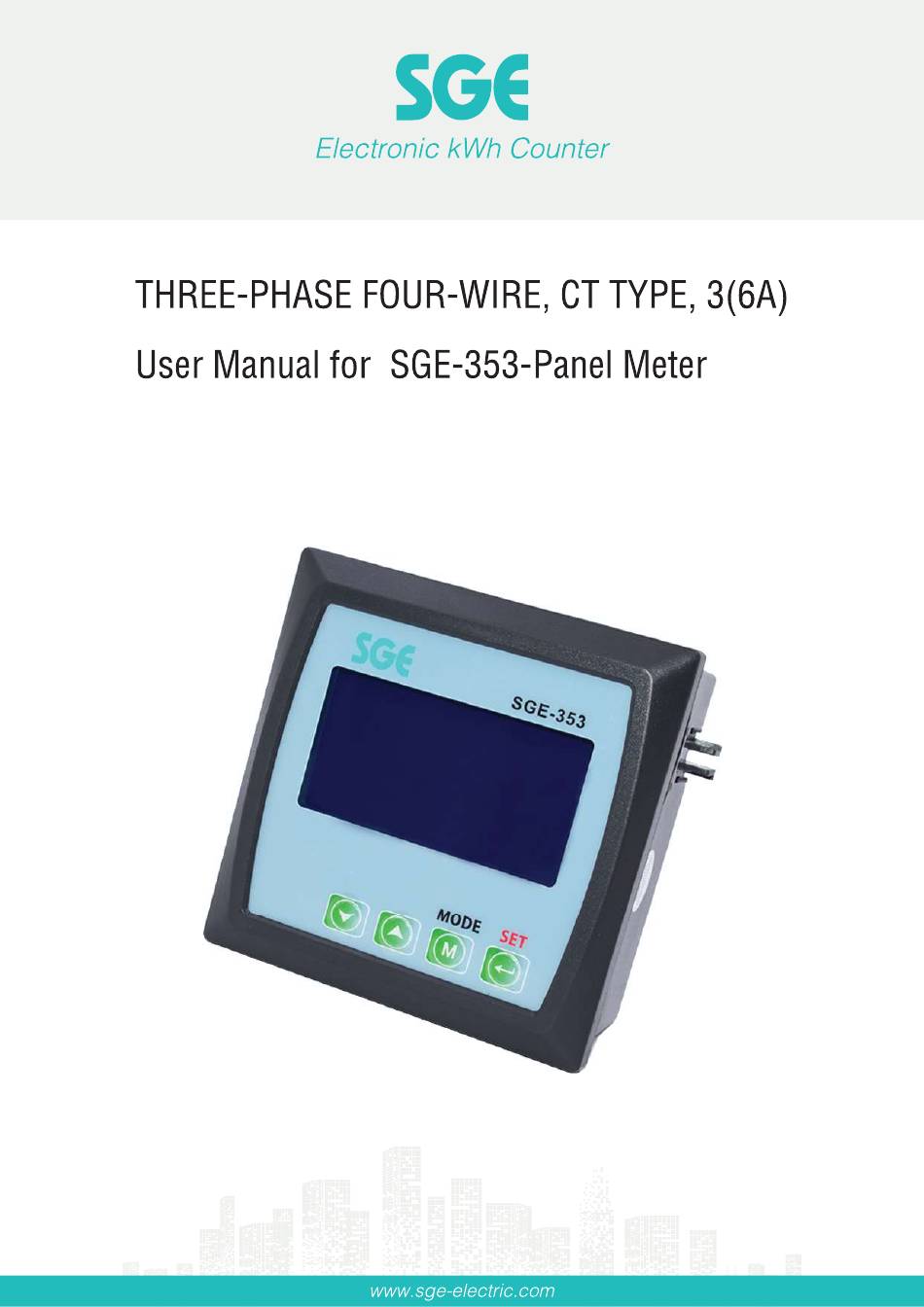

Summary of Contents for SGE sge-353

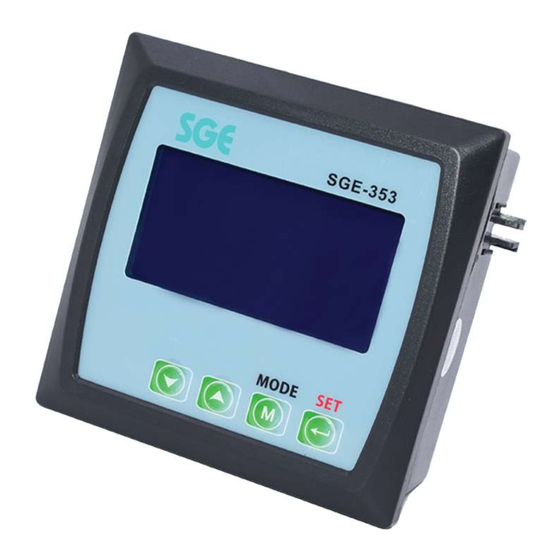

- Page 2 1. Introduction This is a digital device, able to measure all the variables associated with an electrical line, as is shown in the following table. It accepts the three current and three voltages signals in a 4 wire configuration. It is also possible to use it in 3 wire configuration, using two or three current transformers.
- Page 3 3. Description Page up Button Page Down Button Mode Button (Exit) SET Button Note: Key Combination: Key1+Key4: Reset (Energy Max. Value Demand. When reset the energy, you must select the current reset page to operate) Key2+Key4: Enter into set interface Key3+Key4: Starting up to check the meter password Material Case...
- Page 4 P1: Meter Parameter Mode (K3 Switch) Page Line1 Line2 Line3 Line4 1/14 Voltage 2/14 Current 3/14 Power 4/14 React.Power 5/14 Act. Power 6/14 Voltage 7/14 P.F. 8/14 THD current THD Ia THD Ib THD Ic 9/14 THD voltage THD Ua THD Ub THD Uc 10/14...
- Page 5 P4: Set Mode (Key2+Key4, password calibration) Page 1 Upr VT ratio ( Upr/Us) Phase to Phase Primary:0-999999V, Secondary 0-255V Page 2 Apr CT ratio ( Ipr) Set current ratio ( Only could set primary: 0-99999A, Secondary: 5A Meter communication address broadcast address:0 Page 3 1-255 Page4...
- Page 6 7. Installation Instruction Instruction Taking away the two black clips in the each sides, see Fig. 1 and Fig. 2 Fig. 1 Fig. 2 Insert the panel meter to relative position, see Fig. 3 Then install these two black clips back to the panel meter, two sides should be strictly installed, see Fig.
- Page 7 Recommended wire For your reference Safe carrying capacity of rubber or plastic insulated wire(1) nominal cross Safe carrying capacity A section specification mm 1*1.13 1*1.37 1*1.76 1*2.24 1*2.73 7*1.33 7*1.76 7*2.12 7*2.50 19*1.83 19*2.14 19*2.50 Note BX(BLX copper aluminum core rubber insulated wire or BV(BLV copper aluminum core PVC plastic insulated wire widely used in 500V or less than 500V AC and DC power distribution system.
- Page 8 Caution Means hazard of electric shock and failure to take the necessary safety precautions will result in death, serious injury or considerable material damage. Qualified personnel Installation and operation of this equipment described in this manual may only be performed by qualified personal.
