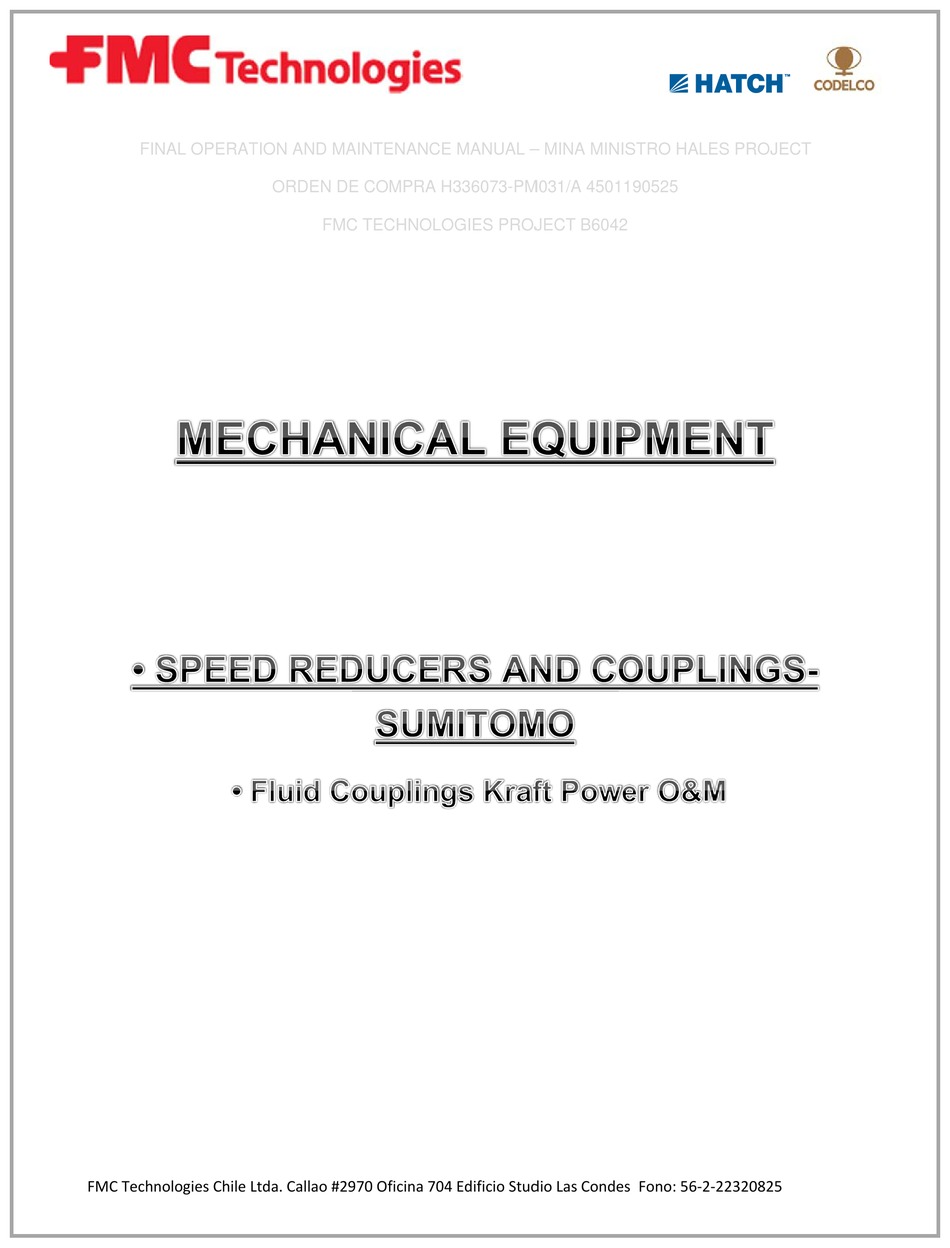

  • Page 1                                                               NAL OPERAT TION AND MA AINTENANC E MANUAL – – MINA MINIS STRO HALES S PROJECT ORDEN D E COMPRA H336073-PM M031/A 45011 90525 C TECHNOL OGIES PROJ JECT B6042   FMC Techn nologies Chile L Ltda. Callao #2 970 Oficina 70 04 Edificio Stud dio Las Condes ...

  • Page 3: Table Of Contents

    INDEX CONTENTS PAGE DESCRIPTION OPERATION 2 to 4 ADVANTAGES CHARACTERISTIC CURVES VERSIONS LAYOUTS SELECTION 7 to 10 DIMENSIONS 11 to 23 OIL FILL SAFETY DEVICES 24 to 27 STANDARD AND REVERSE MOUNTING APPLICATIONS OTHER TRANSFLUID PRODUCTS...

  • Page 4: Description

    DESCRIPTION & OPERATING CONDITIONS DESCRIPTION The TRANSFLUID coupling (K series) is a constant filling type The slip is essential to the functioning of the coupling: there could comprising three main elements: not be torque transmission without slip! The formula for slip, from 1 Driving impeller (pump) mounted on the input shaft.

  • Page 5: Advantages

    FLUID COUPLING FITTED ON ELECTRIC MOTORS TRANSFLUID COUPLING FITTED ON ELECTRIC MOTORS Any drive system using a Transfluid fluid coupling has the advantage of the motor starting without load. Figure 2 compares Three phase synchronous squirrel cage motors are able to supply the current demands of an electric motor when the load is directly maximum torque only near 100% synchronous speed.
  • Page 6 FLUID COUPLING WITH DELAYED-FILL CHAMBER ADVANTAGES TRANSFLUID FLUID COUPLINGS WITH A DELAYED FILL Fluid couplings with single or double delay fill chamber provide CHAMBER very smooth start-ups with low start-up torque transmission, and this makes them excellent for applications with high inertia loads With the standard circuit in a maximum oil fill condition, fluid and for use on belt conveyors.

  • Page 7: Characteristic Curves

    STARTING TORQUE CHARACTERISTICS CHARACTERISTIC CURVES : transmitted torque from fluid coupling : starting torque of the electric motor : nominal torque at full load ..: accelerating torque type 200% (standard circuit) 100% 180÷200% Time [s] type 200% (circuit with a delayed chamber) 100% 150÷180%...

  • Page 8: Versions

    Fig. A Horizontal axis between the motor and the driven CCKSDF externally mounted and therefore to be easily machine (KR-CKR-CCKR and similar). disassembled. Fig. B It allows a radial disassembly without moving the motor and the driven machine (KCG-KDM and similar).

  • Page 9: Selection

    FLUID COUPLING SELECTION SELECTION SELECTION CHART The chart below may be used to select a unit size from the horsepower and input speed. If the selection point falls on the line dividing one size from the other, select the larger size with a proportionally reduced oil fill.
  • Page 10 FLUID COUPLING SELECTION SELECTION TABLE Fluid couplings for standard electric motor MOTOR 3600 rpm 1800 rpm 1200 rpm 900 rpm FRAME SHAFT DIA. COUPLING COUPLING COUPLING COUPLING mm (inch) 143T 0.75 22.275 (0.875) 145T 1.5 - 2 0.75 182T 28.575 (1.125) 184T 213T...

  • Page 11: Dimensions

    FLUID COUPLING SERIES 6 - 9 KR only for size "6" +0.05 +0.25 +0.025 ± 0.1 2 HOLES NOTE : The arrows indicate input and ouput in the standard version. Note: The arrows indicate input and output of the standard version. Dimensions Weight Oil lt...
  • Page 12 FLUID COUPLING SERIES 6 - 9 KRG / KRB / KRBP (with brake drum) KRBP (with brake disc) NOTE : The arrows indicate input and ouput in the standard version. Note: The arrows indicate input and output of the standard version. Dimensions mm Flex Brake...
  • Page 13 FLUID COUPLING SERIES 11 - 34 KR / CKR / CCKR +0.25 ± 0.1 f 7 ± 0.1 2 HOLES CKR - CCKR Dimensions M14 Nr.12 Weight Kg M16 Nr.10 (less oil) max lt CCKR CCKR 14.5 2.75 3.35 18.5 –...
  • Page 14 FLUID COUPLING SERIES 11 - 34 KRG / CKRG / CCKRG / KRB / CKRB / CCKRB KRBP / CKRBP / CCKRBP / KRD / CKRD / CCKRD (with brake drum) (WITH BRAKE DR (WITH BRAKE DRUM) X1 X KRBP KRBP CKR - CCKR CKRG - CCKRG...
  • Page 15 FLUID COUPLING SERIES D 34 KDM 1400 SLIDING LOCKED 1120 257.5 257.5 +0.1 31.75 Note : The arrows Note : The arrows indicate input and ouput in the standard version. indicate input and ouput in the standard version. KEYWAYS AS PER USAS B17.1 Note: The arrows indicate input and output of the standard version.
  • Page 16 FLUID COUPLING SERIES 9 - 34 KRM / CKRM / CCKRM +0.25 +0.025 2 HOLES CKRM - CCKRM NOTE : The arrows indicate input and ouput in the standard version. Note: The arrows indicate input and output of the standard version. Dimensions Flex Weight kg...
  • Page 17 FLUID COUPLING SERIES 6 - 24 KRA / CKRA / CCKRA +0.25 2 HOLES CKRA - CCKRA Note : The arrows Note : The arrows indicate input and ouput in the standard version. indicate input and ouput in the standard version. Note: The arrows indicate input and output of the standard version.
  • Page 18 FLUID COUPLING SERIES 6 - 11 EK only for size “6” only for size “6” (Nr.4x90˚) (Nr.4x90˚) 0.05 +0.25 Note: The arrows indicate input and output of the standard version. Example of application Example of application Dimensions O Oil Electric Motor at 1800 inch max lt...
  • Page 19 FLUID COUPLING SERIES 7 - 34 KCM / CKCM / CCKCM +0.05 +0.05 CKCM - CCKCM CKCM - CCKCM Note: The arrows indicate input and output of the standard version. THIS FLUID COUPLING MOUNTS ONE (1) HALF GEAR COUPLING ON EACH SIDE. THIS ALLOWS THE REMOVAL OF THE FLUID COUPLING WITHOUT MOVING THE MOTOR OR THE DRIVEN MACHINE Dimensions...
  • Page 20 FLUID COUPLING SERIES 7 - 34 KCG / CKCG / CCKCG CKCG - CCKCG CKCG - CCKCG CKCG - CCKCG CKCG - CCKCG Note: The arrows indicate input and output of the standard version. KCGB KCGB KCGB KCGB (Con fascia freno) (Con fascia freno) (with brake drum) (Con fascia freno)
  • Page 21 FLUID COUPLING SERIES 9 - 34 KDM / CKDM / CCKDM CKDM - CCKDM CKDM - CCKDM CKDM - CCKDM Note: The arrows indicate input and output of the standard version. FLUID COUPLING FITTED WITH HALF DISC COUPLINGS, WITHOUT MAINTENANCE AND PRESCRIBED FOR PARTICULAR AMBIENT CONDITIONS. TO BE RADIALLY DISASSEMBLED WITHOUT MOVING THE MACHINES.
  • Page 22 FLUID COUPLING SERIES 12 - 34 KDMB / CKDMB / CCKDMB KDMBP / CKDMBP - CCKDMBP KDMB (with brake drum) X1 X KDMBP (with brake disc) CKDM - CCKDM Dimensions Note: The arrows indicate input and output of the standard version. Brake Brake Weight kg...
  • Page 23 FLUID COUPLING SERIES 6 - 19 KSD-QD / CKSD-QD / CCKSD - QD KSD-QD - 3 HOLES TWO FLATS +0.05 ±0.1 SIZE 6 1/4-20UNC - 2 HOLES 1:16 TAPER (.750 TOTAL TAPER PER FT.) Dimensions CKSD-QD - CCKSD-QD Weight Kg (less oil) Note : The arrows Note : The arrows...
  • Page 24 FLUID COUPLING SERIES 15 - 24 KSD-QD / CKSD-QD / CCKSD-QD KSD-QD +0.076 +0.25 +0.038 ±0.1 1:16 TAPER (.750 TOTAL TAPER PER FT.) Dimensions Weight Kg CKSD-QD - CCKSD-QD (less oil) KSD-QD CKSD-QD CCKSD-QD Note : The arrows indicate input and ouput in the standard version. 52.5 Note: The arrows indicate input and output of the standard version.
  • Page 25 FLUID COUPLING SERIES 15 - 27 KSDF / CKSDF / CCKSDF ±0.1 +0.2 Dimensions Weight Kg (less oil) CKSD - CCKSD CKSD - CCKSD CKSD CCKSD 57.5 Note : The arrows Note : The arrows indicate input and ouput in the standard version. indicate input and ouput in the standard version.

  • Page 26: Oil Fill

    RECOMMENDED OIL AND QUANTITY SAFETY DEVICES OIL FILL SAFETY DEVICES Transfluid fluid couplings are generally delivered without oil. FUSIBLE PLUG Therefore, it is necessary to follow the filling procedures listed below : In case of a load lock-up or high slip in the fluid coupling the oil 1 - For a fluid coupling monted on a horizontal shaft, turn the temperature in the coupling will reach very high levels.
  • Page 27 SAFETY DEVICES OPERATION SWITCHING PIN DEVICE Fig. 6 This device includes a fusible switching pin, fitted on the fluid ..KSD ..KSD coupling cover, and a relay to be positioned according to the ..KR - ..KCM - distances shown in Fig. 6. ..KR - ..KCM - ..KDM ..KDM...
  • Page 28 SAFETY DEVICES OPERATION OVERLOAD CONTROLLER Fig. 7 1490 When load torque increases, slip also increases and output speed consequently decreases. The said speed variation can be measured by means of a sensor sending a pulse train to the speed controller. If the rotating speed goes lower than the set threshold (see diagram) on the controller, a signal is given through the activation of the controller’s relays.
  • Page 29 FIG. SAFETY DEVICES OPERATION Fig. 9 FIG. INFRARED TEMPERATURE CONTROLLER This is a non contacting system to check fluid coupling temperature. It is reliable and easy-mounting. It has 2 adjustable thresholds with a logical alarm on the former, and a relay alarm on the latter. The proximity sensor must be positioned near the fluid coupling outer impeller or cover, according to one of the layouts shown in Fig.

  • Page 30: Standard And Reverse Mounting

    STANDARD OR REVERSE MOUNTING INSTALLATION STANDARD MOUNTING REVERSE MOUNTING Driver inner impeller Driver outer impeller Minimum possible inertia is added to the motor, which allows The outer impeller, being directly connected to the motor, is to accelerate more quickly. r e a c h e s s y n c h r o n o u s s p e e d a t o n c e. Ve n t i l a t i o n i s therefore maximum from the beginning.
  • Page 31 APPLICATIONS FIELDS OF APPLICATION • MISCELLANEOUS • TEXTILE MACHINES - Centrifugal fans - Barrels for tannery - Centrifugal and reciprocating compressors - Centrifuges - Belt and bucket conveyors - Carding machines - Chain conveyors - Washing machines - Bridge cranes (traslation and rotation) - Rotating jib cranes - Winders •...
  • Page 32 STANDARD OR REVERSE MOUNTING FLUID COUPLING FLUID COUPLING KSL SERIES KPT SERIES Start up and variable Start up and variable speed drive up to 4000 kW speed drive up to 1700 kW FLUID COUPLING FLUID COUPLING KPTO SERIES K SERIES For internal combustion engines For diesel engines P.T.O.
  • Page 33 Seller neither assumes, nor autohorizes any other persons to assume for it, any other liability in connection with the sale of this product. LOCAL DISTRIBUTOR KRAFT POWER 675A Progress Center Ave. Lawrenceville, GA 30043 Tel. 770/963-6288 Toll Free 800/394-0078 Fax: 770/963-9678 E-mail transfluid@kraftpower.com 0208...
