English

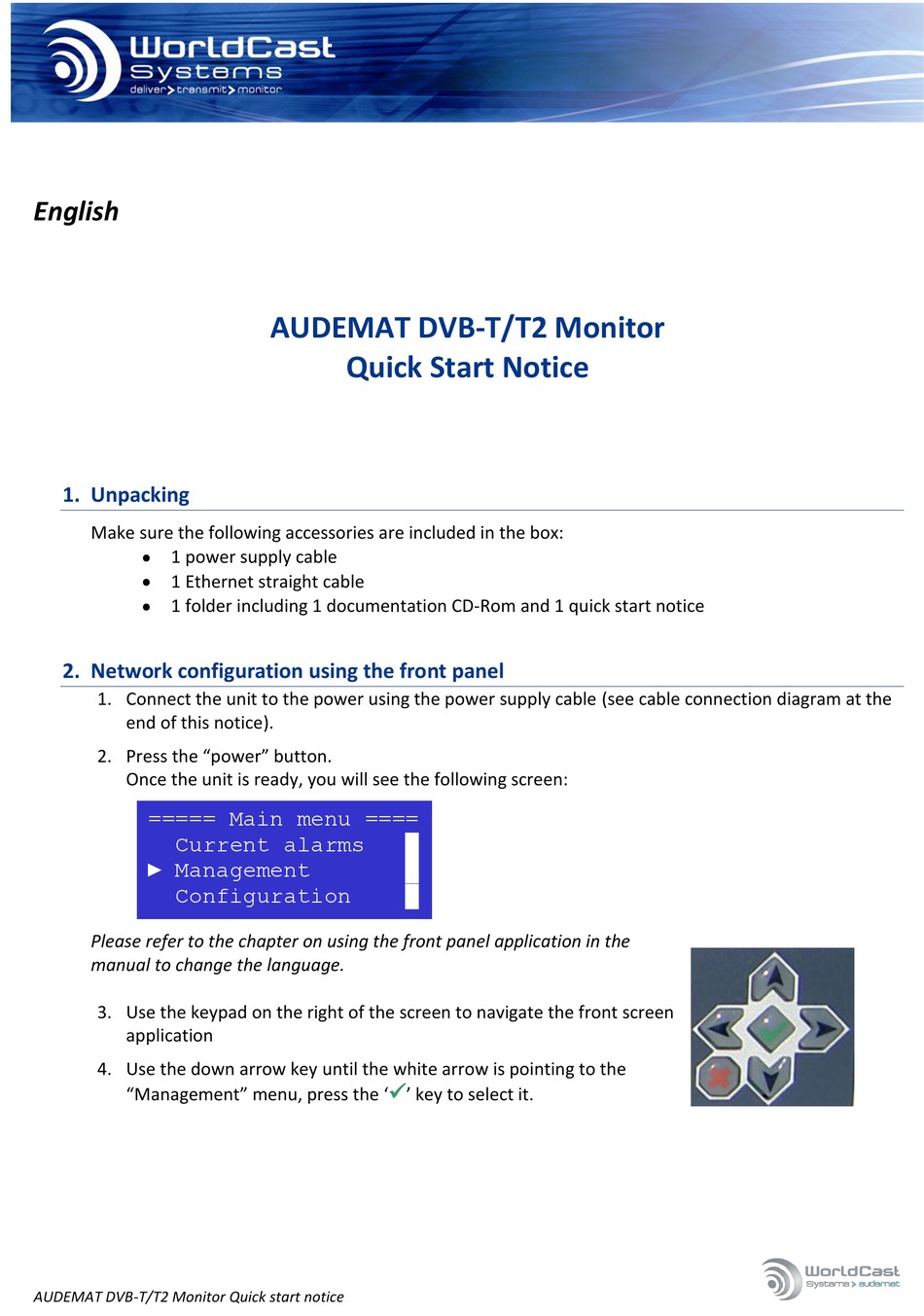

1. Unpacking
Make sure the following accessories are included in the box:
1 power supply cable
1 Ethernet straight cable
1 folder including 1 documentation CD-Rom and 1 quick start notice
2. Network configuration using the front panel
1. Connect the unit to the power using the power supply cable (see cable connection diagram at the
end of this notice).
2. Press the "power" button.
Once the unit is ready, you will see the following screen:
===== Main menu ====
Current alarms
► Management
Configuration
Please refer to the chapter on using the front panel application in the
█
manual to change the language.
3. Use the keypad on the right of the screen to navigate the front screen
application
4. Use the down arrow key until the white arrow is pointing to the
"Management" menu, press the '
AUDEMAT DVB-T/T2 Monitor Quick start notice
AUDEMAT DVB-T/T2 Monitor
Quick Start Notice
█
█
█
Status
' key to select it.
Advertisement
Table of Contents
Summary of Contents for Worldcast Systems AUDEMAT DVB-T/T2
- Page 1 3. Use the keypad on the right of the screen to navigate the front screen application 4. Use the down arrow key until the white arrow is pointing to the “Management” menu, press the ‘ ’ key to select it. AUDEMAT DVB-T/T2 Monitor Quick start notice...
-
Page 2: Connecting To The Network
see a confirmation screen: confirm your new configuration with the ‘ ’ key. You can now use the network cable to connect your AUDEMAT DVB-T/T2 Monitor to connect your unit to the network. 3. Connecting to the network Connect the Ethernet cable (A) from the unit’s primary... -
Page 3: Installing The Audemat Dvb-T/T2 Monitor Applications
Open a Web browser and enter the IP address you just set via the front panel starting with the chosen protocol: http://IP_address or https://IP_address Default Login and Password: “Admin” / “admin”. 1. Click on “Download Tools” in the menu to install the AUDEMAT DVB-T/T2 Monitor applications on your PC. AUDEMAT DVB-T/T2 Monitor Quick start notice... - Page 4 If a Windows Firewall is activated, add the application to the list of approved applications. AUDEMAT DVB-T/T2 Monitor Application For more information on your unit’s functions, we recommend you read the AUDEMAT DVB-T/T2 Monitor and ScriptEasy manuals. AUDEMAT DVB-T/T2 Monitor Quick start notice...
-
Page 5: Rear Panel
* Only available with the AUDEMAT DVB-T2 Monitor For technical questions, please contact: support@worldcastsystems.com ussupport@worldcastsystems.com WorldCast Systems is certified ISO 9001 and our quality department welcomes your feedback. For any question, do not hesitate to contact directly our quality manager: quality@worldcastsystems.com Audemat®...
