NOTE:
modify the exhaust to install this kit.
NOTE: There must be no
less than 3.5" from the
bottom of the frame to the
top of axle to install this kit.
This kit WILL NOT FIT if the
frame has been notched.
WARNING: DO NOT INFLATE ASSEMBLY WHEN IT IS NOT RESTRICTED. ASSEMBLY MUST BE RESTRICTED BY
SUSPENSION OR OTHER ADEQUATE STRUCTURE. DO NOT INFLATE BEYOND 100 P.S.I. IMPROPER USE OR OVER
INFLATION MAY CAUSE ASSEMBLY TO BURST CAUSING PROPERTY DAMAGE OR SEVERE PERSONAL INJURY.
INSTALLATION INSTRUCTIONS
P/N 59109
It may be necessary to move or
Upper
Bracket
3/8"-16x1"
HHCS
3/8" Flat
Washer
12mm
Hex Nut
Locator
Tab

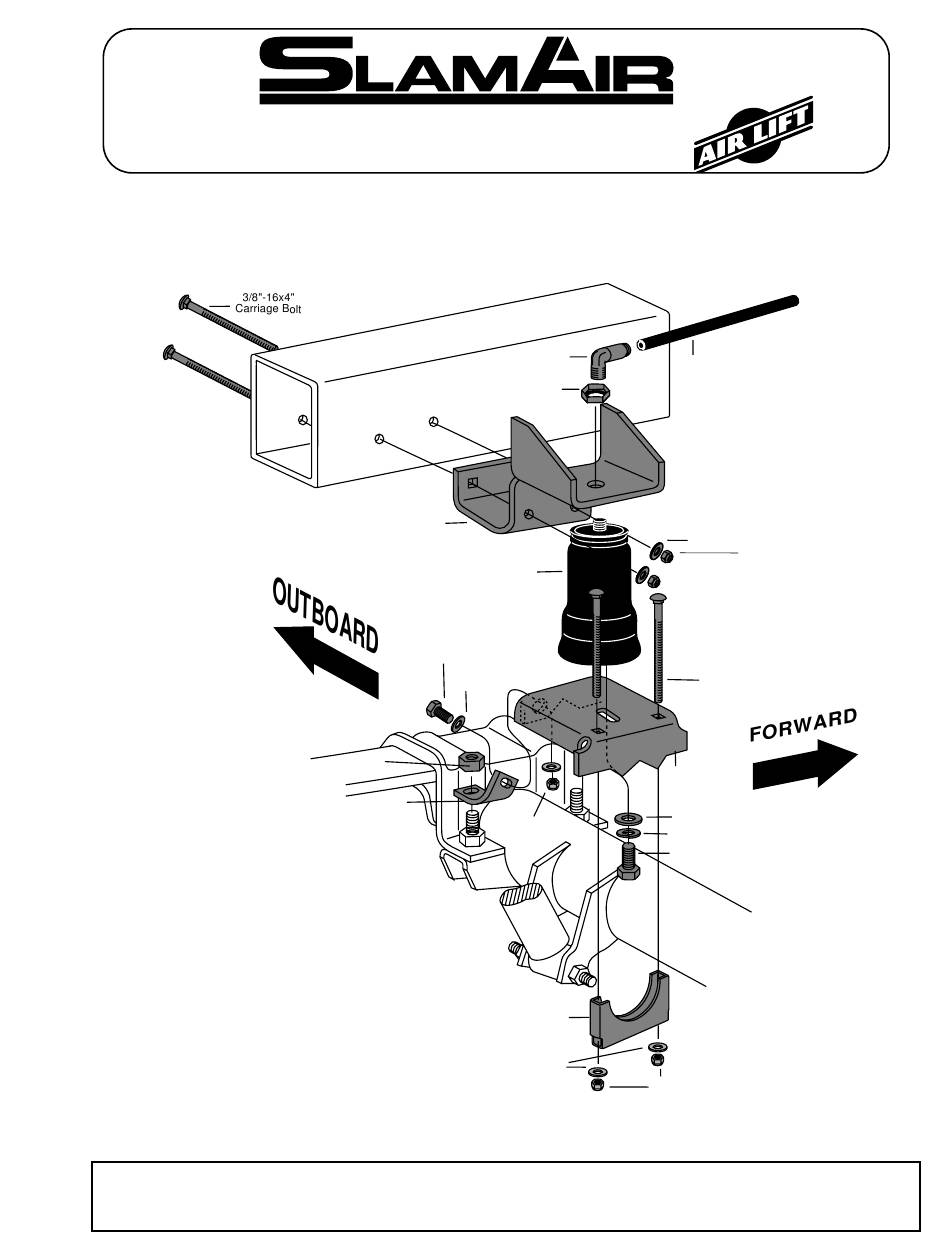

Figure 1
Elbow
Air Line
Pal Nut
(flange up)
Sleeve
Lower
Bracket
1/2" Flat Washer
3/8"
Locknut
1/2" Lock Washer
1/2" HHCS
Box
Clamp
3/8" Flat
Washer
3/8"
Locknut
MN-299
(03711)
ECN2306
BY
3/8" Flat
Washer
3/8"
Locknut
3/8"-16x5"
Carriage Bolt
Advertisement
Table of Contents
Summary of Contents for Air Lift Slam Air 59109
- Page 1 MN-299 (03711) ECN2306 INSTALLATION INSTRUCTIONS P/N 59109 NOTE: It may be necessary to move or modify the exhaust to install this kit. Elbow Air Line Pal Nut (flange up) Upper Bracket 3/8" Flat Washer 3/8" Locknut Sleeve 3/8"-16x1" HHCS 3/8" Flat 3/8"-16x5"...
- Page 2 NORMAL RIDE HEIGHT: Normal ride height (no load) - This is defined as the distance Drill a 17/64” hole between the bottom of the bumper and a flat road surface with the vehicle in “as delivered condition” (without a load, i.e. tool box, camper, etc.) measurements should be taken before beginning Original the installation.
- Page 3 11. Install the air fitting into the sleeve , tighten finger Thermal tight plus two turns. Use a 7/16” open end wrench Sleeve being careful to tighten on the metal hex nut only. DO NOT OVER TIGHTEN. This fitting is precoated with thread sealant.
-
Page 4: Maintenance/Operation
When inflating your Air Lift sleeves, add pressure in small quantities, checking pressure frequently during inflation. The sleeves require much less air volume than a tire and therefore inflate much faster. -
Page 5: Product Use Information
No. Adding air springs will not change the weight ratings (GAWR, GCWR and/or GVWR) of a vehicle. Exceeding the GVWR is dangerous and voids the Air Lift warranty. Q. Is it necessary to keep air in the air springs at all time and how much pressure will they need? The minimum air pressure should be maintained at all times. -
Page 6: Guidelines For Adding Air
fi g. 4 Unlevel Level Poor stability Rev. 4/5/07 Thank you for purchasing Air Lift products! For technical support, please call (800) 248-0892. Air Lift Company • P.O. Box 80167, MI 48908-0167 • (517) 322-2144 • Fax: (517) 322-0240 • www.airliftcompany.com...
