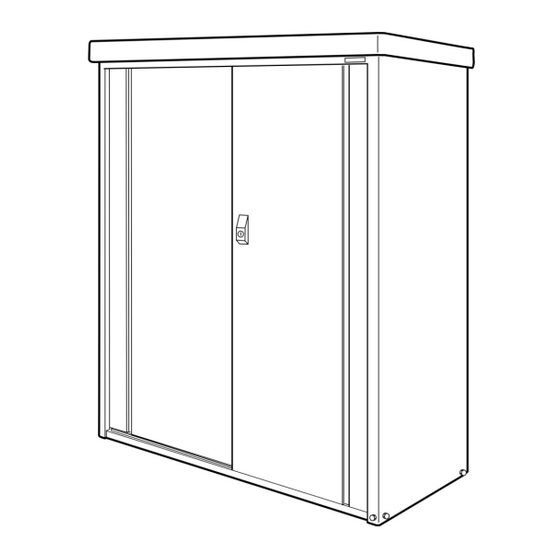

GUARDIAN D63
(DM-GY179)
ASSEMBLY INSTRUCTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GUARDIAN D63 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TRIMETALS GUARDIAN D63

  • Page 1 GUARDIAN D63 (DM-GY179) ASSEMBLY INSTRUCTION...

  • Page 2: Parts Detail

    PARTS DETAIL There is a label of left. There is same label at inside.

  • Page 3: Packing Detail

    PACKING DETAIL PACKING PACKING PACKING NAME PART NO & DESCRIPTION PACKING NAME PART NO & DESCRIPTION PARTS M9-0105 BEAM M9-0105 BEAM M9-0207 METAL BASE METAL BASE M9-0207 SIDE PANEL (Right) SIDE PANELS SIDE PANEL (Left) M9-0302 M9-0302 (RIGHT & LEFT) BACK PANEL (Small) SHELF SUPPORT M9-0405...
  • Page 4 PACKING DETAIL CONT PART PART PART DESCRIPTION PART DRAWING DESCRIPTION DRAWING HEXAGON BOLTS (M6) (1 SPARE) (1 SPARE) HEXAGON BOLTS (M6) WITH RUBBER WASHER WALL ANCHOR POINT SHELF BRACKET L SHAPED ANCHOR BRACKET LOCK SET DOOR GUIDE PLASTIC BOLT COVER PART PART PART...

  • Page 5: Tools Required

    DRAWING (1 SPARE) (1 SPARE) TOOLS REQUIRED PHILIPS SCREWDRIVER SPIRIT LEVEL RECOMMENDED TOOLS: ELECTRIC SCREWDRIVER* 8MM SOCKET BIT *WHEN USING AN ELECTRIC SCREWDRIVER, PLEASE TAKE CARE NOT TO OVER TIGHTEN BOLTS DIMENSIONS 1760mm 1720mm 900mm 1850mm GUARDIAN D63 980mm 1865mm...
  • Page 6 STEP 1 - Metal Base Installation Rear Front Figure 1. Ensure the assembly site is flat and level. Identify [Part 1] Metal Base STEP 2 - Side Panel Installation Figure 2. Slot [Part 2] & [Part 3] Side Panels on to the [Part 1] Metal Base and secure using 6no. [Part 21] Hexagon Bolt as shown in Figure 2 and 3.
  • Page 7 Step 3 - Install Back Panel (Large) Top View: Back Panel (Large) UPPER Figure 3. Combine [Part 4] Back Panel (Large) with [Part 2] Side Panel (Left) and secure using 3no. [Part 22] Hexagon Bolt with Rubber Washer as shown in Figure 3.
  • Page 8 STEP 4 - Secure Back Panel (Large) to Metal Base Figure 4. Secure [Part 4] Back Panel (Large) to [Part 1] Metal Base using 2no. [Part 21] Hexagon Bolt as shown in Figure 4.
  • Page 9 STEP 5 - Install Back Panel (Small) Top View: Back Panel (Small) Figure 5. Combine [Part 5] Back Panel (Small) with [Part 4] Back Panel (Large) and secure using 3no. [Part 22] Hexagon Bolt with Rubber Washer. Secure [Part 5] Back Panel (Small) to [Part 1] Metal Base using 2no. [Part 21] Hexagon Bolt. Shown in Figure 5.
  • Page 10 STEP 6 - Install Back Panel (Large) Figure 6. Figure 7. Combine [Part 4] Back Panel (Large) with [Part 5] Back Panel (Small) and [Part 3] Side Panel (Right). Secure using 6no. [Part 22] Hexagon Bolt with Rubber Washer as shown in Figure 6. Secure [Part 4] Back Panel (Large) to [Part 1] Metal Base using 2no.
  • Page 11 STEP 7 - Install Beam and Shelf Support Figure 8. Insert [Part 6] Beam into [Part 2] Side Panel (Left) and [Part 3] Side Panel (R). Secure using 6no. [Part 21] Hexagon Bolt. Fit [Part 9] Shelf Support and secure using 3no. [Part 21] Hexagon Bolt.
  • Page 12 STEP 8 - Install Roof Panel Figure 9. Figure 10. Place the [Part 7] Roof Panel to overlap [Part 2] Side Panel (Left), [Part 3] Side Panel (Right), [Part 6] Beam, [Part 4] Back Panel (Large) and [Part 5] Back Panel (Small). Secure in place using 12no. [Part 21] Hexagon Bolt.

  • Page 13: Step 9 - Install Shelves

    STEP 9 - Install Shelves Figure 11. Figure 12. Insert [Part 24] Shelf Brackets at the desired height, 4 pieces per shelf. Slot [Part 8] Shelf on top of [Part 24] Shelf Brackets.
  • Page 14 STEP 10 - Install Lock Set and Door Guides Figure 13. Figure 14. Insert [Part 26] Lock Set in [Part 11] Sliding Door. Take care to install [Part 26] Lock Set as pictured Insert 2no. [Part 27] Door Guide into top of [Part 10] Sliding Door (Left) and [Part 11] Sliding Door (Right).
  • Page 15 STEP 11 - Install Sliding Doors Figure 15. To install [Part 10] Sliding Door (Left) push the Door Guides into the holes located on the underside of [Part 6] Beam on the rear slide rail. This will give the clearance required to install the runners on the bottom of the door onto the slide panel on the Floor Panel.
  • Page 16 STEP 12 - Install Bolt Covers Figure 16. Figure 17. Ensure all bolts are fully tightened. Push [Part 28] Bolt Covers on head of all external bolts. 12 in total.
  • Page 17 STEP 13 - Install Wall Anchor (optional) Figure 18. Figure 19. Insert [Part 23] Wall Anchor Bracket between Side Panel and Roof Panel and secure in place using [Part 21] Hexagon Bolt. Two Wall Anchor Brackets are required, one of each side of the Guardian Shed. Use a heavy duty cable when fixing to a wall.
  • Page 18 STEP 14 - Install L Shaped Anchor Plate (optional) Figure 20. Figure 21. Fit [Part 25) L Shaped Anchor Plate to the shed using the lowest hole setting. Using an anchor bolt (not provided) secure to a hard base. Alternatively, use a higher hole setting to sink the bracket into the ground.

  • Page 19: Step 15 - Final Check

    STEP 15 - Final Check Figure 22. If there is a gap between the sliding door and the side panel, please check if the shed is square by measuring the diagonals, both measurements should be equal. Ensure the shed is installed on a flat and level ground.
