Summary of Contents for HSV HSV-SPZ-189901

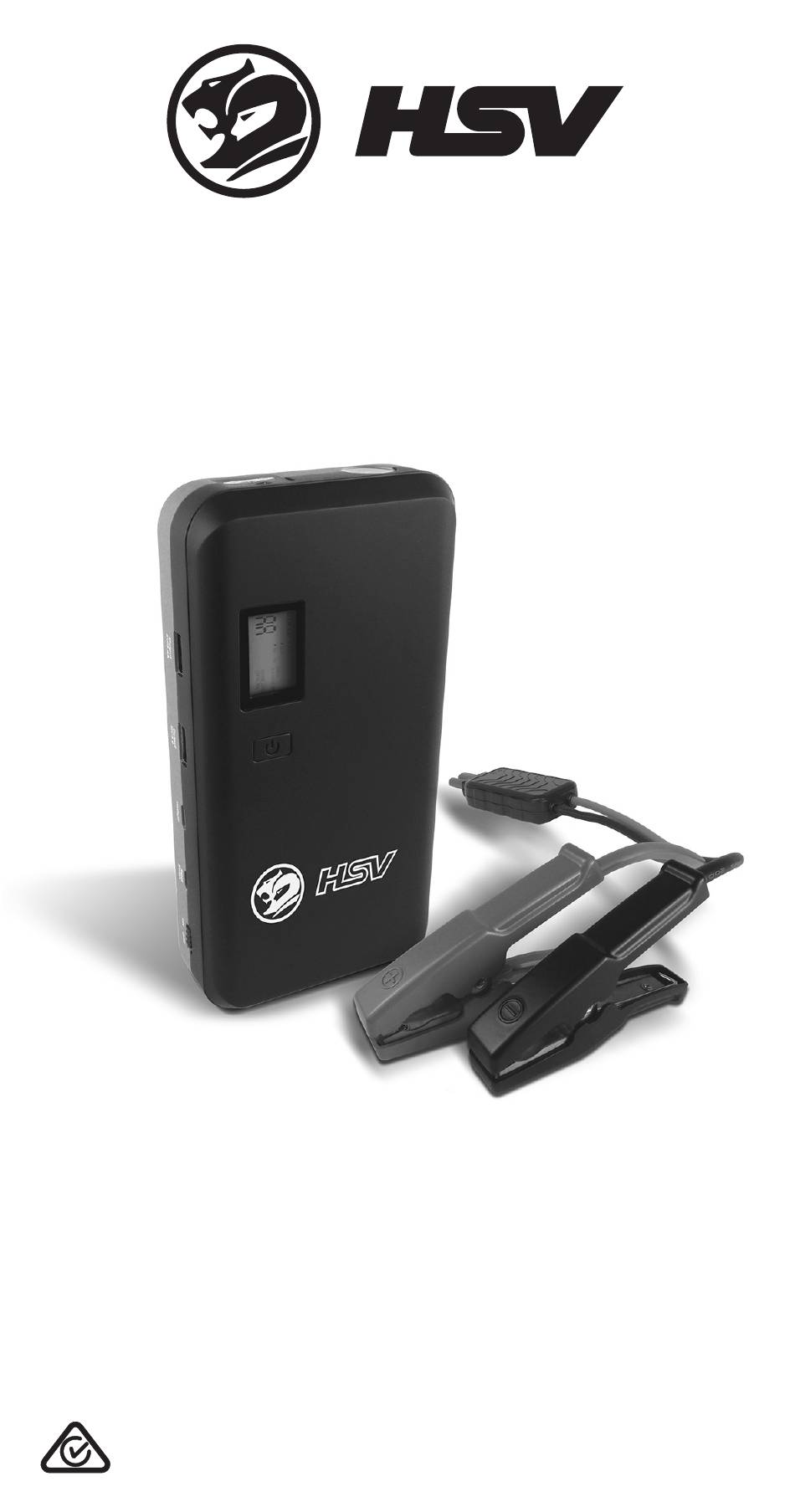

- Page 1 Jump Starter MODEL HSV-SPZ-189901 User Manual PLEASE SAVE THIS OWNER’S MANUAL AND READ BEFORE EACH USE. This manual will explain how to use the unit safely and effectively. Please read and follow these instructions and precautions carefully. 0099002059-00...
-
Page 2: Important Safety Instructions
1.5 Use only recommended attachments (SA866 jump cable). Use of an attachment not recommended or sold by the jump starter manufacturer for the HSV-SPZ 189901 may result in a risk of fire, electric shock or injury to persons or damage to property. -
Page 3: Personal Precautions
2. PERSONAL PRECAUTIONS WARNING! RISK OF EXPLOSIVE GASES. A SPARK NEAR THE BATTERY MAY CAUSE A BATTERY EXPLOSION. TO REDUCE THE RISK OF A SPARK NEAR THE BATTERY: 2.1 NEVER smoke or allow a spark or flame in the vicinity of a battery or engine. 2.2 Remove personal metal items such as rings, bracelets, necklaces and watches when working with a lead-acid battery. -
Page 4: Preparing To Use The Unit
3. PREPARING TO USE THE UNIT WARNING! RISK OF CONTACT WITH BATTERY ACID. BATTERY ACID IS A HIGHLY CORROSIVE SULFURIC ACID. 3.1 Make sure the area around the battery is well ventilated while the unit is in use. 3.2 Clean the battery terminals before using the jump starter. During cleaning, keep airborne corrosion from coming into contact with your eyes, nose and mouth. -
Page 5: Charging The Jump Starter
5. FEATURES 1. LCD display 8. 2.4A USB output port 9. Battery clamps Display button with smart cable 3. Smart cable green and red LEDs 10. Jump start output socket 4. ON/OFF switch 11. LED light 5. Micro USB input port Not shown: for recharging 12. -
Page 6: Jump Starting A Vehicle Engine
4. The jump starter will fully charge in 7-8 hours. When the unit is fully charged, the display will show “100%”. 5. When the battery is fully charged, disconnect your charger from the outlet, and then remove the charging cable from the charger and the unit. -
Page 7: Using The Led Light
9. Recharge the unit as soon as possible after each use. 7.2 CHARGING A MOBILE DEVICE, USING THE USB PORTS The HSV-SPZ 189901 includes three USB ports. The standard one provides up to 2.4A at 5V DC. The second port is a 3A input/output USB. -
Page 8: Maintenance Instructions
8. MAINTENANCE INSTRUCTIONS 1. After use and before performing maintenance, unplug and disconnect the unit. 2. Use a dry cloth to wipe all battery corrosion and other dirt or oil from the battery clamps, cords, and the outer case. 3. Do not open the unit, as there are no user-serviceable parts. 9. -
Page 9: Specifications
Smart Cable LED and Alarm Behavior BEHAVIOR REASON Green LED blinking; Red LED Cable is connected to battery only. off; no beep. Cable is connected to jump starter only. Green LED solid; Red LED off; Cable is connected correctly to both no beep. -
Page 10: Disposal Information
13. DISPOSAL INFORMATION This product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. - Page 11 Common Warranty Provisions The warranty mentioned above only applies to the first professional or consumer user having legally acquired the Product from the Manufacturer or a Reseller. No warranty is extended towards clients, agents or representatives of those buyers. The Product is sold under the specifications, for the use and purpose in accordance with the provisions of this manual, with express exclusion and disclaimer of warranty of any other specifications, uses and purposes.
