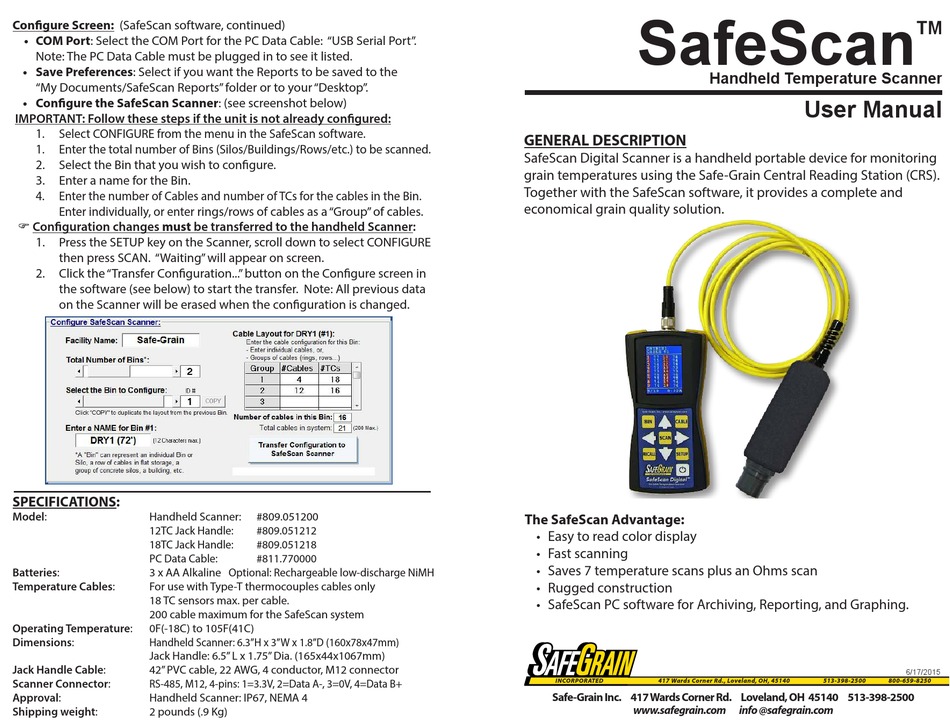

Safe-grain SafeScan SG1004A User Manual

Configure Screen: (SafeScan software, continued)
• COM Port: Select the COM Port for the PC Data Cable: "USB Serial Port".
Note: The PC Data Cable must be plugged in to see it listed.
• Save Preferences: Select if you want the Reports to be saved to the
"My Documents/SafeScan Reports" folder or to your "Desktop".
• Configure the SafeScan Scanner: (see screenshot below)
Important: Follow these steps if the unit is not already configured:
1. Select CONFIGURE from the menu in the SafeScan software.
1. Enter the total number of Bins (Silos/Buildings/Rows/etc.) to be scanned.
2. Select the Bin that you wish to configure.
3. Enter a name for the Bin.
4. Enter the number of Cables and number of TCs for the cables in the Bin.
Enter individually, or enter rings/rows of cables as a "Group" of cables.
F Configuration changes must be transferred to the handheld Scanner:
1. Press the SETUP key on the Scanner, scroll down to select CONFIGURE
then press SCAN. "Waiting" will appear on screen.
2. Click the "Transfer Configuration... " button on the Configure screen in
the software (see below) to start the transfer. Note: All previous data
on the Scanner will be erased when the configuration is changed.

SPECIFICATIONS:

Handheld Scanner: #809.051200
Model:
12TC Jack Handle:
18TC Jack Handle:
PC Data Cable:
3 x AA Alkaline Optional: Rechargeable low-discharge NiMH
Batteries:
For use with Type-T thermocouples cables only
Temperature Cables:
18 TC sensors max. per cable.
200 cable maximum for the SafeScan system
0F(-18C) to 105F(41C)
Operating Temperature:
Handheld Scanner: 6.3"H x 3"W x 1.8"D (160x78x47mm)
Dimensions:
Jack Handle: 6.5" L x 1.75" Dia. (165x44x1067mm)
42" PVC cable, 22 AWG, 4 conductor, M12 connector
Jack Handle Cable:
RS-485, M12, 4-pins: 1=3.3V, 2=Data A-, 3=0V, 4=Data B+
Scanner Connector:
Handheld Scanner: IP67, NEMA 4
Approval:
2 pounds (.9 Kg)
Shipping weight:
#809.051212
#809.051218
#811.770000
SafeScan

GENERAL DESCRIPTION

SafeScan Digital Scanner is a handheld portable device for monitoring
grain temperatures using the Safe-Grain Central Reading Station (CRS).
Together with the SafeScan software, it provides a complete and
economical grain quality solution.

The SafeScan Advantage:

• Easy to read color display
• Fast scanning
• Saves 7 temperature scans plus an Ohms scan
• Rugged construction
• SafeScan PC software for Archiving, Reporting, and Graphing.
